Frame cover (model k1) для мотоциклов Suzuki (Америка) DR-Z400S (2004)

Москва и регионы России

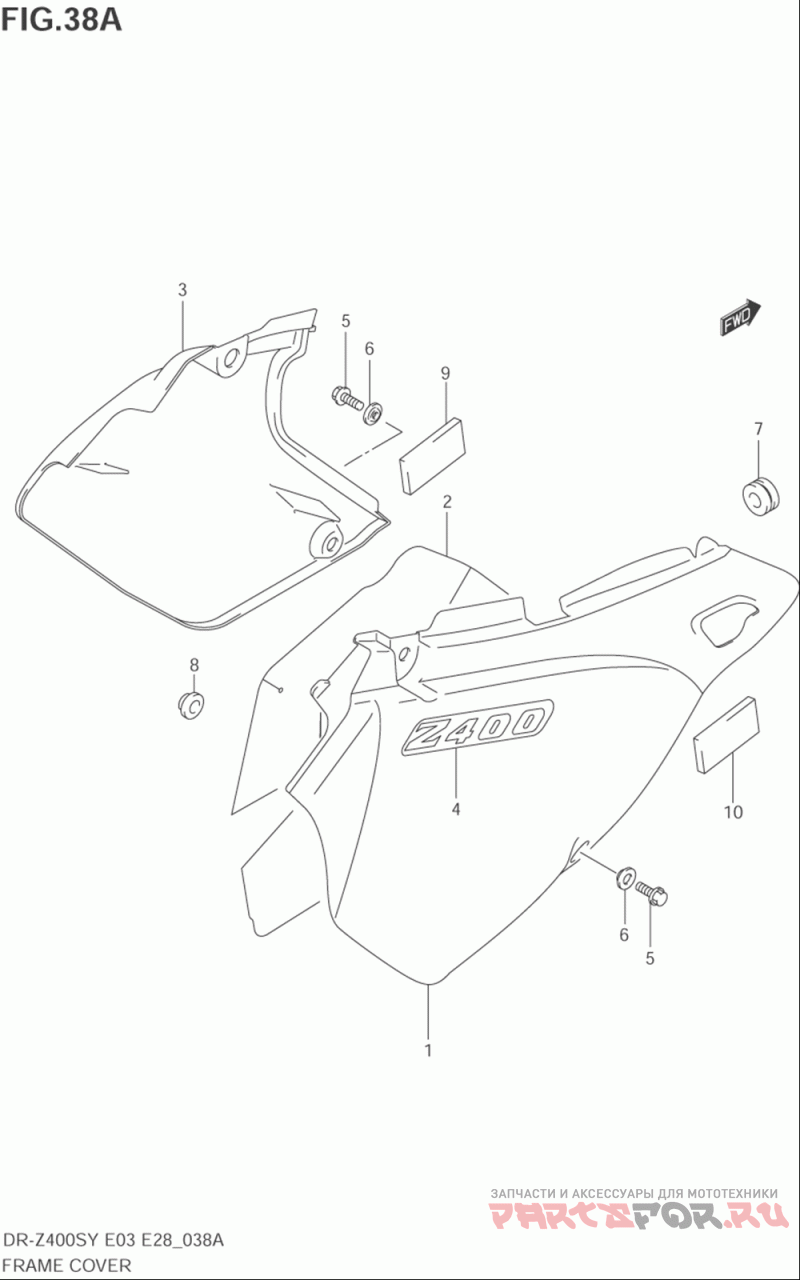

Frame cover (model k1)

Suzuki (Америка) DR-Z400S

#

oem код

название

цена

1-1

47111-29FC0-30H

Cover, Frame Rh (white)

1-2

47111-29F10-YR1

Cover, Frame Rh (yellow)

2

47166-29F00

Shield, Frame Cover Rh

3-1

47211-29F10-30H

Cover, Frame Lh (white)

3-2

47211-29F10-YU1

Cover, Frame Lh (yellow)

3-3

47211-29F30-30H

Cover, Frame Lh (white)

3-4

47211-29F30-YR1

Cover, Frame Lh (yellow)

4-1

68131-29F10-CW7

Emblem, Frame Cover

4-2

68131-29F10-FR4

Emblem, Frame Cover

5

01547-0616B

Болт

6

09169-06041

Washer, Guide Rr Brake Hose

7

09320-06504

Подушка

8

09321-10018

Cushion, Muffler

9

47161-29F00

Cushion, Cover Front Lh

10

71762-65G10

Cushion, Cover Front Rh
