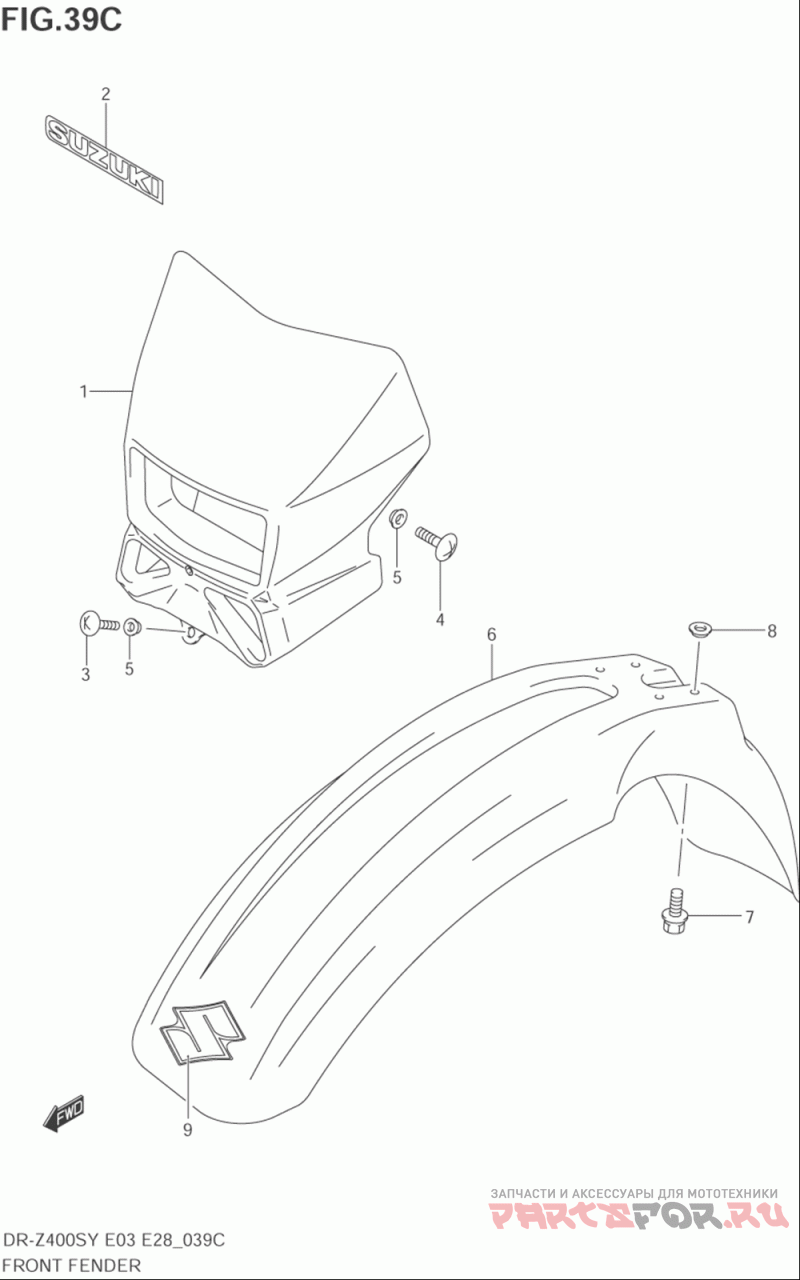

Переднее крыло (model k3/k4)
Suzuki (Америка) DR-Z400S
| # | oem код | название | цена |
|---|---|---|---|
1 | 51811-29F10-30H Cover, Headlamp (white) | Cover, Headlamp (white) | |
2 | 68721-29F00-8YM Emblem, Suzuki | Emblem, Suzuki | |
3 | 02142-0512A Винт | Винт | |
4 | 02142-0612A Винт | Винт | |
5 | 09169-06033 Washer, Cover Side | Washer, Cover Side | |
6-1 | 53111-27C22-YU1 Fender, Front (yellow) | Fender, Front (yellow) | |
6-2 | 53111-27C22-YJ4 Fender, Front (blue) | Fender, Front (blue) | |
7 | 09116-06170 Bolt (6x16) | Bolt (6x16) | |
8 | 09169-06073 Шайба | Шайба | |
9-1 | 68151-08G00-NN3 Emblem, "s" | Emblem, "s" | |
9-2 | 68151-08G00-NV3 Emblem "s" | Emblem "s" |
