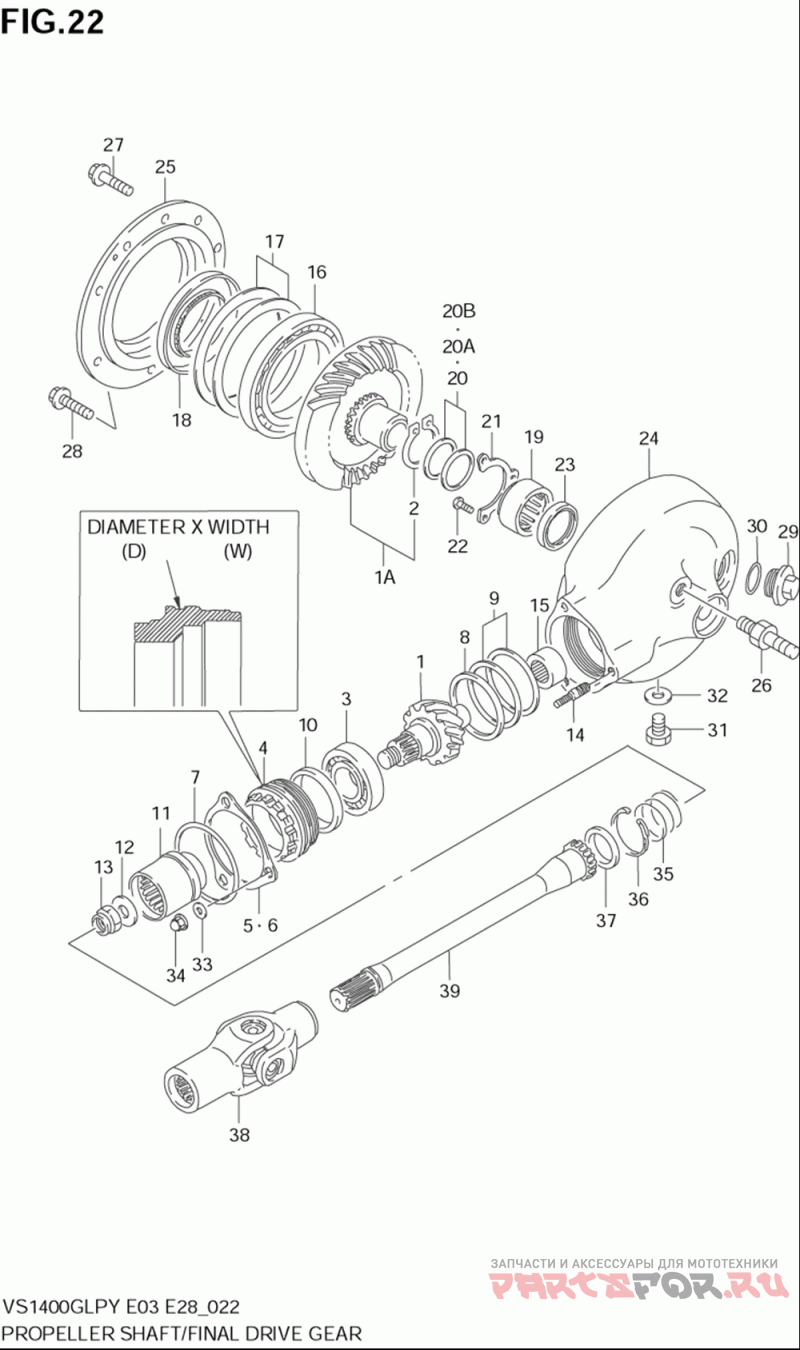

Карданный вал для мотоциклов Suzuki (Америка) VS1400GLP INTRUDER (2003)

Карданный вал

Suzuki (Америка) VS1400GLP INTRUDER

oem код

название

цена

27300-38845

Gear & Case Set, Final Bevel

27311-24A03

.gear, Final Drive Bevel

27320-38B00

.gear, Final Driven Bevel

08331-31526

..circlip

09262-28023

.bearing, Final Drive Gear

27312-24A02

.stopper, Final Drive Be

27313-38B00

.plate, Bearing Stopper

27313-38B10

.plate, Bearing Stopper

09280-64003

O Ring (d:3.1 Id:63.9)

09160-54001

.washer, Final Drive Bearing

27445-24810

.shim Set, Final Drive Gear

09283-47002

.seal, Final Drive Oil

27172-24A00

.coupling, Final Drive Gear

09160-16029

Washer, Drive Shaft

09159-16003

Nut, Sec Driven Bevel Couplin

01421-1025B

Шпилька

09263-20062

Bearing, Idle Shaft

09262-85001

.bearing, Final Driven Gear,

27327-38810

.shim Set, Final Drive, R

09289-70002

.oil Seal

09263-35004

.bearing, Lh

09160-35008

Washer, 35x46x0.

20A

27326-45811

.shim Set, Final Driven Gear (model Tt:1.05/1.1/1.2/1.25/1.35/1.4/1.45/1.5)

27329-45100

.holder, Bearing

22-1

02112-0612A

Винт

22-2

09125-06110

Screw, Shift Cam (6x12)

09283-35033

.oil Seal

27450-38B01

.case, Final Gear

27461-38B00

.case, Final Gear Bearing

.stud Bolt

Болт

Bolt, Drive Gear

.plug, Gear Oil Filler

09280-26006

O Ring (d:3.1, Id:26.4)

31-1

09247-14036

Plug, Oil Drain

31-2

09247-14002

.plug, Oil Drain

09168-14004

.gasket (14.1x18x1.5)

09164-10008

Шайба

09159-10026

Гайка

09440-30008

Spring, Propeller Shaft

.circlip

Seal, Coupling Oil

Yoke, Universal

Вал гребного винта
