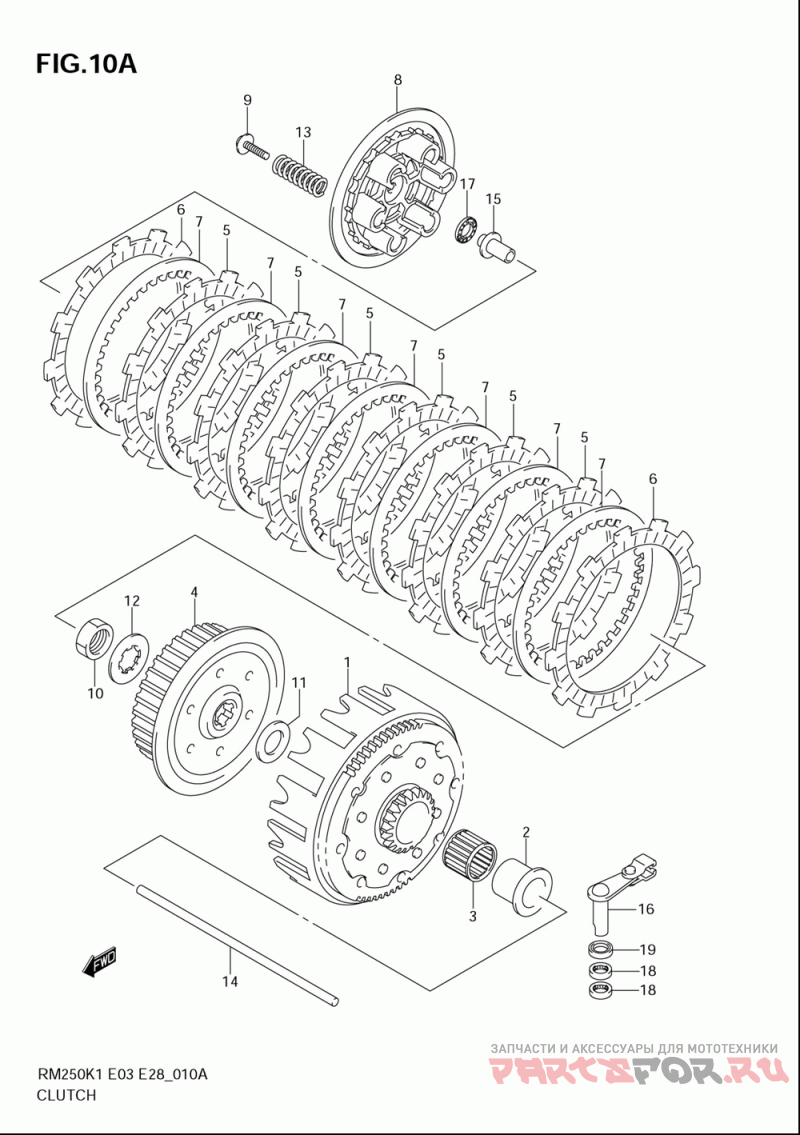

Clutch (model k3/k4/k5) для мотоциклов Suzuki (Америка) RM250,Z (2003)

Clutch (model k3/k4/k5)

Suzuki (Америка) RM250,Z

oem код

название

цена

21200-37E03

Gear Assy, Primary Driven

21251-37E01

Spacer, Primary Driven Gear

09263-29009

Bearing, Primary Driven

4-1

21410-37810

Hub Set, Clutch

4-2

21410-37E20

Hub, Clutch Sleeve

4-3

21410-37F40

Hub, Clutch Sleeve

21441-37F20

Plate, Clutch Drive No.1

21441-37F30

Plate, Clutch Drive No.2

21451-37F00

Plate, Clutch Driven

21462-37F20

Disk, Clutch Pressure

09116-05019

Bolt, Clutch (5x25)

09140-18013

Nut, Clutch Sleeve Hub

11-1

09160-22067

Washer, Clutch Hub Thr

11-2

09160-22080

Washer, Clutch Hub Thr

12-1

09167-22021

Гровер

12-2

Washer, Clutch Hub

Пружина

Rod, Clutch Push

Piece, Clutch Push

Camshaft, Clutch Release

09263-10002

Thrust Bearing (10.1x22x2.8)

09263-12024

Bearing, Cl Rlse Up

09285-12004

Seal, Cl Release Camshaft
