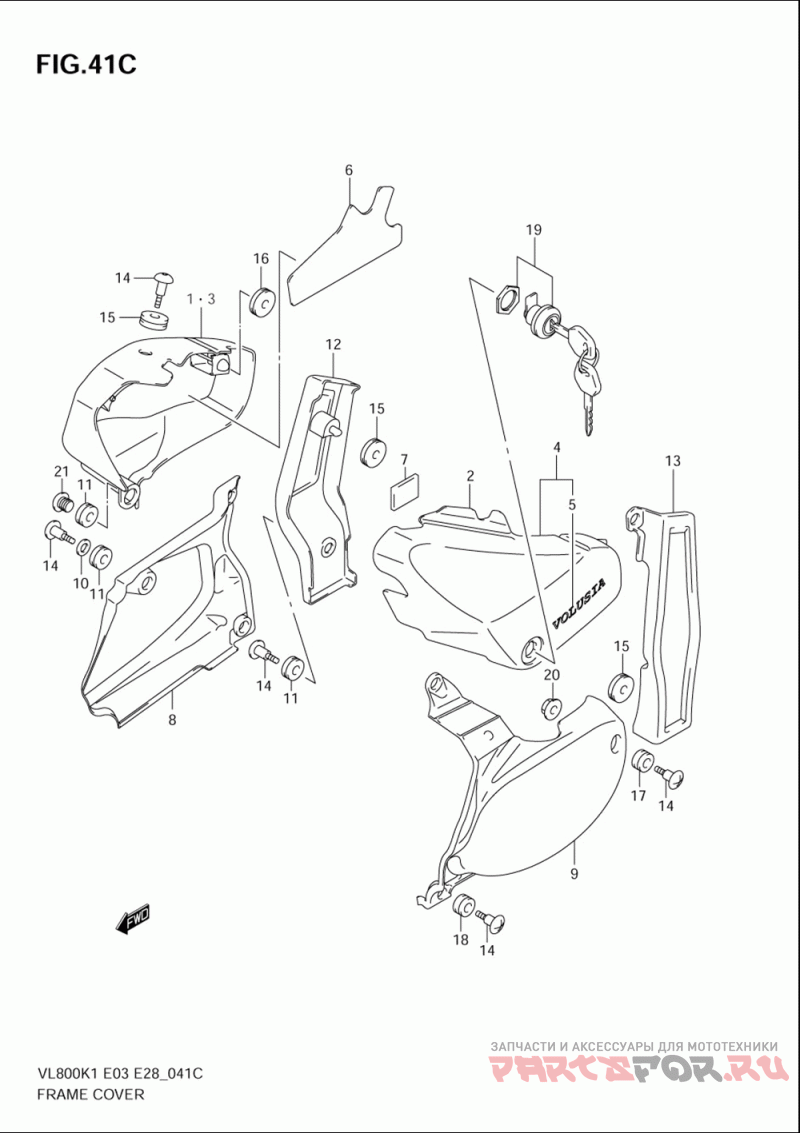

Frame cover (model k4)

Suzuki (Америка) VL800,Z VOLUSIA

Suzuki (Америка)
#oem кодцена
1-1
47110-41F31-YAY
Деталь Cover Comp, Side
1-2
47110-41F30-YV2
Деталь Cover, Frame Rh (silver)
1-3
47110-41F30-YAR
Деталь Cover, Frame Rh (blue)
1-4
47110-41F40-YAY
Деталь Cover, Frame Rh (black)
1-5
47110-41F40-YV2
Деталь Cover, Frame Rh (silver)
1-6
47110-41F40-YAR
Деталь Cover, Frame Rh (blue)
2-1
47211-41F00-YAY
Деталь Cover, Frame Lh (black)
2-2
47211-41F01-YV2
Деталь Cover, Side, L(si
2-3
47211-41F00-YAR
Деталь Cover, Frame Lh (blue)
3-1
47110-41F00-YAU
Деталь Cover, Frame Rh (gray)
3-2
47110-41F20-YAU
Деталь Cover, Frame Rh (gray)
4
47210-41F00-YAU
Деталь Cover, Frame Lh (gray)
5
68131-41F00-AVY
Деталь .emblem
6
47166-41F00
Деталь Shield, Frame Cover Rh
7
93676-80020
Подушка
8
47130-41F00
Деталь Cover, Side Lower Rh
9
47231-41F00
Деталь Cover, Side Lower Lh
10
09160-10123
Шайба
11
09320-08021
Деталь .cushion, 8.5x20x8
12
47141-41F01-019
Деталь Cover, Side Rear Rh (black)
13
47241-41F00-019
Деталь Cover, Side Rear Lh (black)
14
09139-06126
Деталь Screw, Brace
15
09320-08018
Деталь Cushion, Brace
16
09320-08028
Деталь .grommet
17
09320-09501
Деталь Cushion, Lower
18
09320-09045
Деталь Cushion Box Front
19
95700-07860
Деталь Lock Set, Fuel Lid
20
08316-1006B
Гайка
21
09250-09001
Заглушка
2-1
47211-41F01-YAY
Деталь Cover, Side, L(bl
