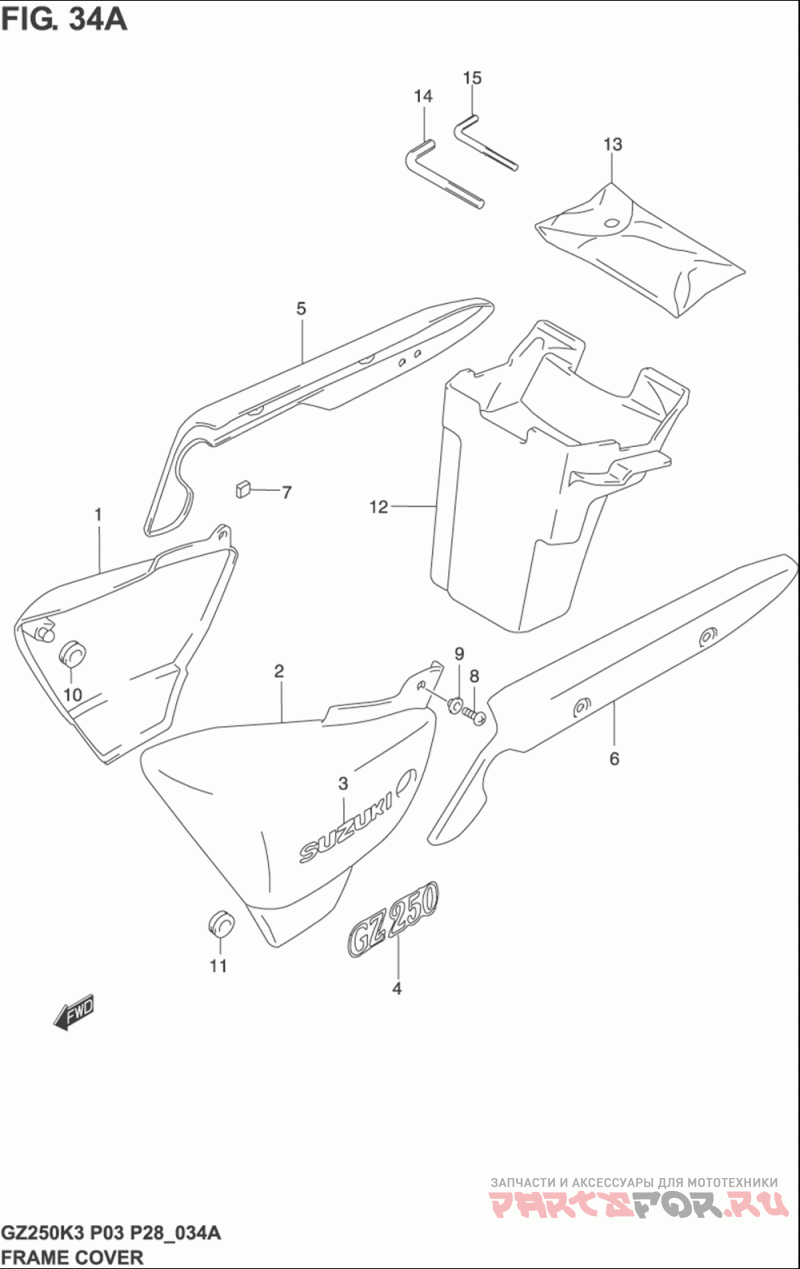

Frame cover (model k3) для мотоциклов Suzuki (Америка) GZ250 (2002)

Москва и регионы России

Frame cover (model k3)

Suzuki (Америка) GZ250

Frame cover (model k3)

#

oem код

название

цена

1-1

47111-12F00-Y7L

Cover, Frame Rh (black)

Cover, Frame Rh (black)

1-2

47111-12F00-Y7H

Cover, Frame Rh (blue)

Cover, Frame Rh (blue)

2-1

47211-12F00-Y7L

Cover, Frame Lh (black)

Cover, Frame Lh (black)

2-2

47211-12F00-Y7H

Cover, Frame Lh (blue)

Cover, Frame Lh (blue)

3-1

68131-12F40-LK5

Emblem, Frame Cover

Emblem, Frame Cover

3-2

68131-12F40-LK6

Emblem, Frame Cover

Emblem, Frame Cover

4-1

68131-12F50-M7P

Emblem, Suzuki

Emblem, Suzuki

5

Cover, Frame Rear Rh

Cover, Frame Rear Rh

6

Cover, Frame Rear Lh

Cover, Frame Rear Lh

7

Cushion (80x20x10)

Cushion (80x20x10)

8

Винт

Винт

9

Шайба

Шайба

10

Cushion, Brace

Cushion, Brace

11

Подушка

Подушка

12

92211C12F01J000

Body, Luggage Box

Body, Luggage Box

13

Комплект инструмента

Комплект инструмента

14

Hexagon Spanner, 6

Hexagon Spanner, 6

15

Hexagon Spanner, 4

Hexagon Spanner, 4
