Сцепление для мотоциклов Suzuki (Америка) GSF1200,S,Z BANDIT (2002)

Москва и регионы России

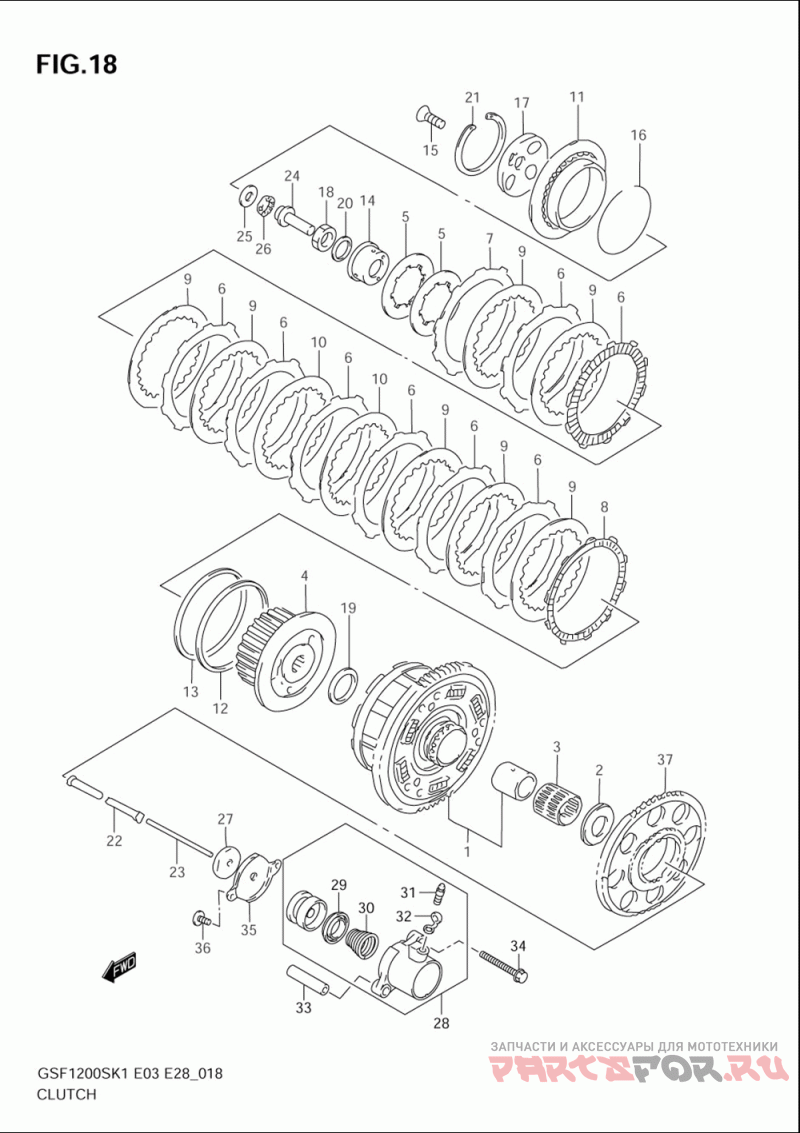

Сцепление

Suzuki (Америка) GSF1200,S,Z BANDIT

Сцепление

#

oem код

название

цена

1

Gear Assy, Primary Driven

Gear Assy, Primary Driven

2

Washer (25x54x2.5)

Washer (25x54x2.5)

3

Bearing (35x40x35.8)

Bearing (35x40x35.8)

4

Hub, Clutch Sleeve

Hub, Clutch Sleeve

5

Пружина

Пружина

6

Plate, Clutch Drive No.1

Plate, Clutch Drive No.1

7

Plate, Clutch Sleeve

Plate, Clutch Sleeve

8

Plate, Clutch Drive No.3

Plate, Clutch Drive No.3

9

Plate, Clutch Driven,no.1

Plate, Clutch Driven,no.1

10

Plate, Clutch Driven No.2

Plate, Clutch Driven No.2

11

Disk, Clutch Pressure

Disk, Clutch Pressure

12

Seat, Wave Washer

Seat, Wave Washer

13

Washer, Clutch Plate Wave

Washer, Clutch Plate Wave

14

Holder, Clutch Spring

Holder, Clutch Spring

15

Screw, Clutch Spring

Screw, Clutch Spring

16

Seat, Clutch Spring

Seat, Clutch Spring

17

Lifter, Clutch Pressure Disk

Lifter, Clutch Pressure Disk

18

Nut, Clutch Sleeve Hub

Nut, Clutch Sleeve Hub

19

Washer (25x50x25)

Washer (25x50x25)

20

Washer (24.2x35x2)

Washer (24.2x35x2)

21

Circlip, Clutch Pressure

Circlip, Clutch Pressure

22

Rod, Push Rh

Rod, Push Rh

23

Шток

Шток

24

Piece, Clutch Push

Piece, Clutch Push

25

Washer (15.5x28x1)

Washer (15.5x28x1)

26

Подшипник (15x28x2)

Подшипник (15x28x2)

27

Oil Seal (6x34x5.5)

Oil Seal (6x34x5.5)

28

Cylinder, Clutch Release

Cylinder, Clutch Release

29

.cup

.cup

30

Пружина

Пружина

31

Штуцер перепускной

Штуцер перепускной

32

.cap, Bleeder

.cap, Bleeder

33

Pin, Cl Rlse Cyl

Pin, Cl Rlse Cyl

34-1

Болт

Болт

34-2

Bolt, Clamp

Bolt, Clamp

35

Cover, Cylinder

Cover, Cylinder

36

Винт

Винт

37

Gear, Generator Drive

Gear, Generator Drive
