Clutch (model v/w) для мотоциклов Suzuki (Америка) TL1000S (2001)

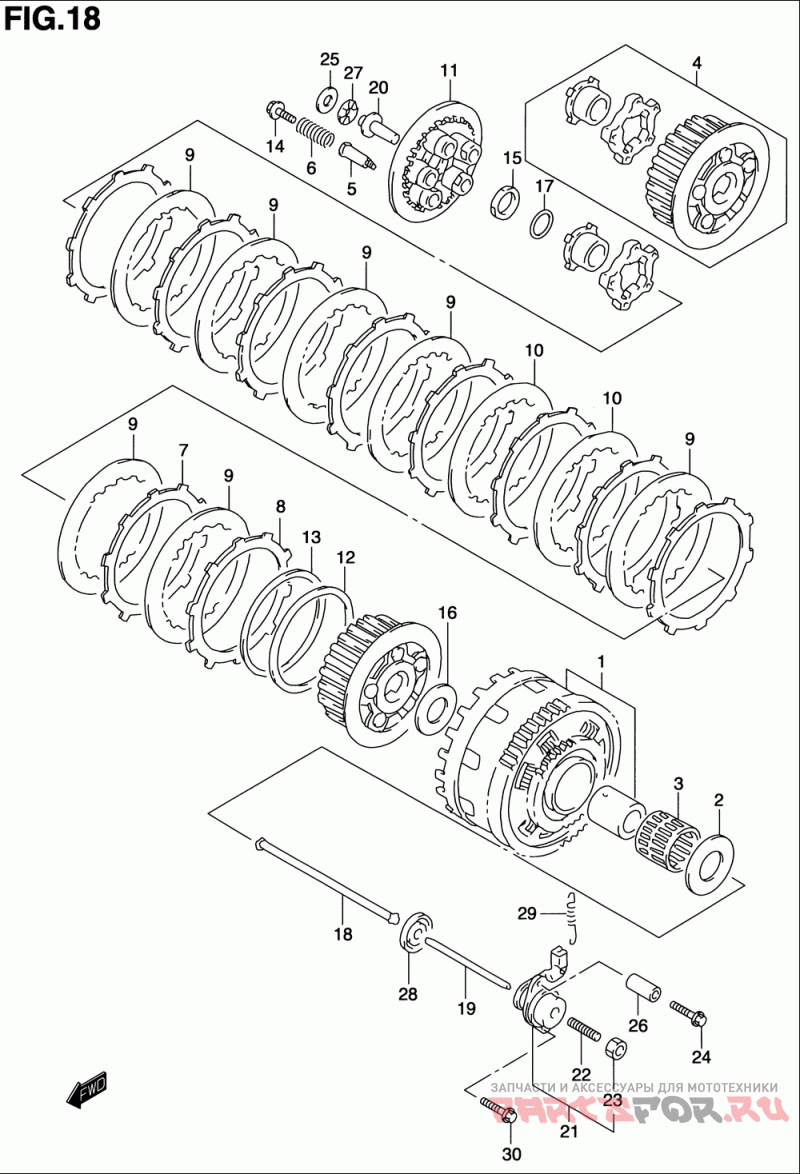

Clutch (model v/w)

Suzuki (Америка) TL1000S

oem код

название

цена

21200-02810

Gear Assy, Primary Driven

2-1

09160-25067

Washer (25x54x2.5)

2-2

Washer (25x54x2.5)

Bearing (35x40x35.8)

Cam Set, Clutch

Bolt, Clutch Spring Sprt

21413-02F00

Spring, Clutch Assist

21441-31E50

Plate, Clutch Drive No.1

21442-31E00

Plate, Clutch Drive

21451-31E00

Plate, Clutch Driven,no.1

21451-31E10

Plate, Clutch Driven No.2

21462-02F00

Disk, Clutch Pressure

Seat, Wave Washer

Washer, Clutch Plate

Bolt, Clutch Spring

Nut, Clutch Sleeve Hub

16-1

09160-25056

Washer (25x50x25) (model V25x50x2.5)

16-2

09160-25072

Washer, Clutch Sleeve (model W25x50x2.5)

Washer (24.2x35x2)

Rod, Push Rh

Rod, Clutch Push Lh

Piece, Push

Screw Assy, Clutch Release

Винт

Гайка

Болт

Washer (15.5x28x1)

Spacer, Cl Release

Подшипник (15x28x2)

Oil Seal (6x34x5.5)

Spring, Clutch Release

01550-0660A

Болт

21440-02F00

Clutch Plate Set, Hi Perf. (opt. Refer To Serv. Bulltl/sv-11 For Information)
