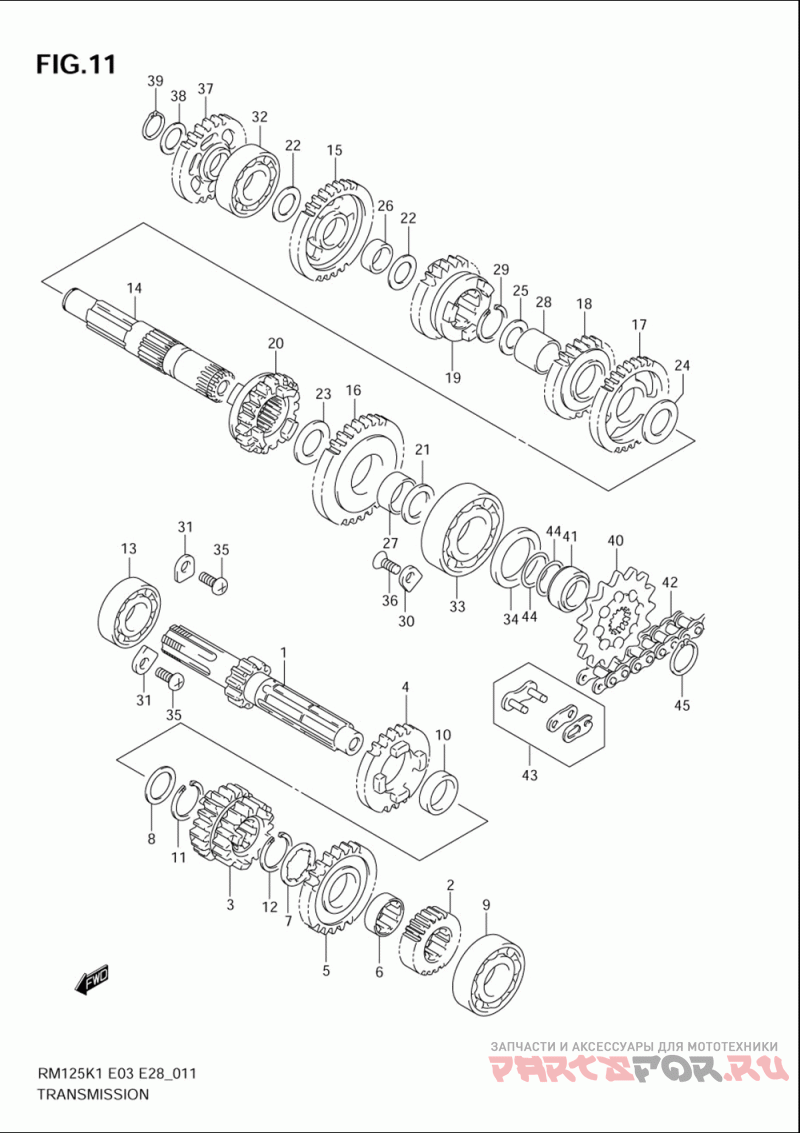

Transmission (model k1/k2/k3)

Suzuki (Америка) RM125

Suzuki (Америка)
#oem кодцена
1-1
24120-36F02
Shaft, Counter
2
24221-36F01
Gear, 2nd Drive (nt:16)
3
24231-43D21
Gear, 3rd & 4th Drive
4
24251-43D20
Gear, 5th Drive (nt:19)
5
24261-43D01
Gear, 6th Drive (nt:20)
6
24262-43D00
Bush, 6th Drive
7
09167-22014
Washer Lock, 6th Drive
8
09181-22139
Washer (22x28x1.0)
9
09262-17049
Bearing, Cntr Shaft, Lh
10
09300-22008
Bush (22x27x0.5)
11
09380-22006
Пружинное стопорное кольцо
13
09262-20122
Bearing, Crank Balancer
14
24131-36E10
Вал ведущий
15
24311-36F00
Gear, 1st Driven (nt:29)
16-1
24321-36F01
Gear, 2nd Driven (nt:27)
17-1
24331-36E01
Gear, 3rd Driven (nt:26)
18
24341-36E00
Gear, 4th Driven (nt:24)
19
24351-36E01
Gear, 5th Driven (nt:20)
20-1
24361-36E03
Gear, 6th Driven (nt:19)
21
09160-20074
Washer, 2nd Driven Lh
22
09181-17167
Washer (17x26x1)
23
09181-22167
Washer, 6th Drive
26
09300-17012
Bush, 1st Driven
28
09300-22018
Bush, 3rd & 4th Driven
30
24741-20A00
Обойма подшипника
31
24741-21A00
Retainer, Shift Cam Bearing
32
09262-17040
Bearing, Drive Shaft Rh
33
09262-20110
Bearing, Drive Shaft Lh
34
09283-28020
Seal, Drive (28x38x6)
35
02112-0610B
Винт
36
02122-0612A
Винт
37
26260-43D01
Gear, Kick Idle (nt:26)
38
09181-17130
Washer, Kick (17x24x0.5)
39
08331-3117A
Пружинное стопорное кольцо
40-1
27511-14111
Sprocket, Engine (nt:12)
40-2
27511-14121
Sprocket, Engine (nt:13)
41
27531-43D00
Проставка
42-1
27600-43D01-114
Chain Assy (did520dma2, 114le)
43
27620-43D00
Joint Set, Chain
44
09280-20006
O Ring (d:1.9, Id:19.8)
45
09380-20007
Circlip, Engine Sprocket
