Exhaust valve (model k4/k5) для мотоциклов Suzuki (Америка) RM125 (2001)

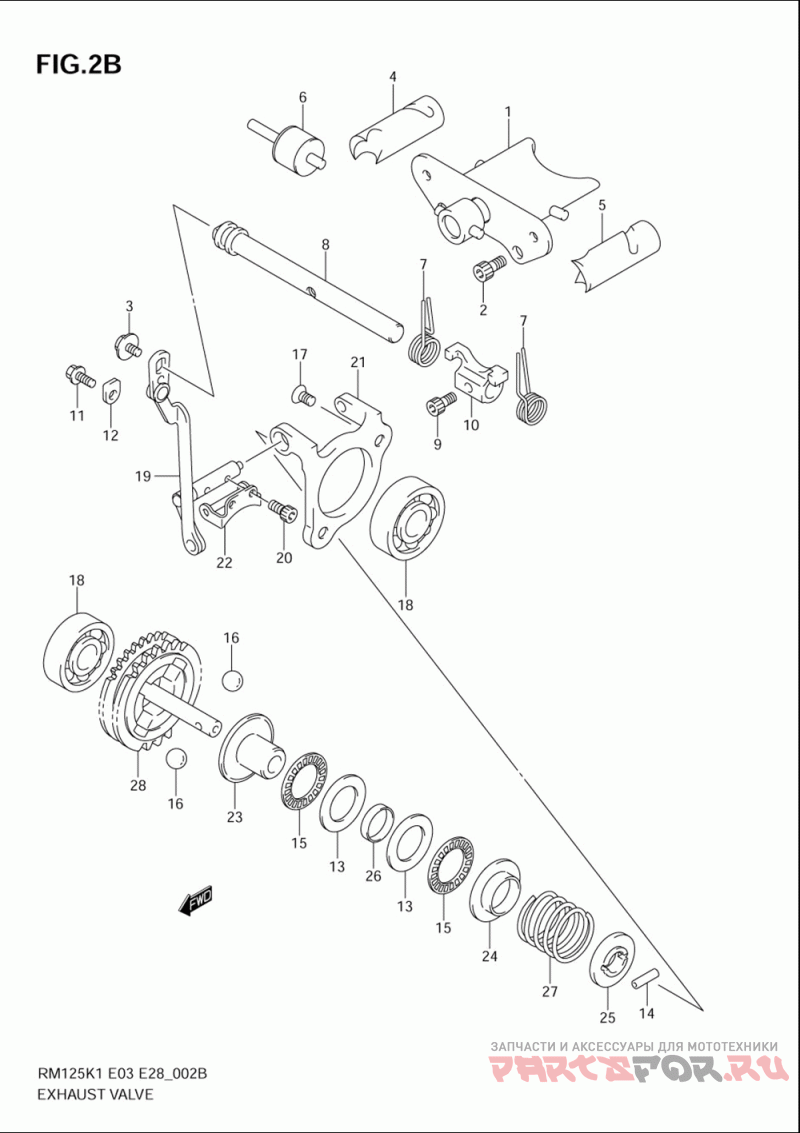

Exhaust valve (model k4/k5)

Suzuki (Америка) RM125

oem код

название

цена

1-1

11250-36F30

Valve Assy, Exhaust Main

1-2

11250-36F40

Valve Assy, Exhaust Main

07130-0512B

Bolt, Sensor

09103-05022

Bolt (5x10)

4-1

11255-36F30

Valve, Exhaust Side, R

4-2

11255-36F40

Valve, Exhaust Side, R

5-1

11256-36F30

Valve, Exhaust Side, L

5-2

11256-36F40

Valve, Exhaust Side, L

11260-36F30

Shaft, Exhaust Side Valve

11257-36F11

Spring, Exhaust Valve Shaft

11259-36F30

Shaft, Exhaust Valve

09106-04003

Bolt (4x8)

11264-36F30

Arm, Exhaust Valve Shaft

09103-06256

Болт

24741-21A00

Retainer, Shift Cam Bearing

Shim (15x28x1)

Pin (3x12.5)

Подшипник (15x28x2)

Шарик

Винт (5x10)

Bearing (8x22x7)

Actuator, Exhaust

Base, Actuator

Arm, Actuator

Governor, Driven

Stopper, Governor Spring

12675-36F11

Stopper, Governor Spring

12676-36F10

Spacer, Governor

27-1

12677-36F30

Spring, Governor

27-2

12677-36F40

Spring, Governor

28-1

12670-36820

Governor Set, Exhaust

28-2

12670-36830

Governor Set, Exhaust
