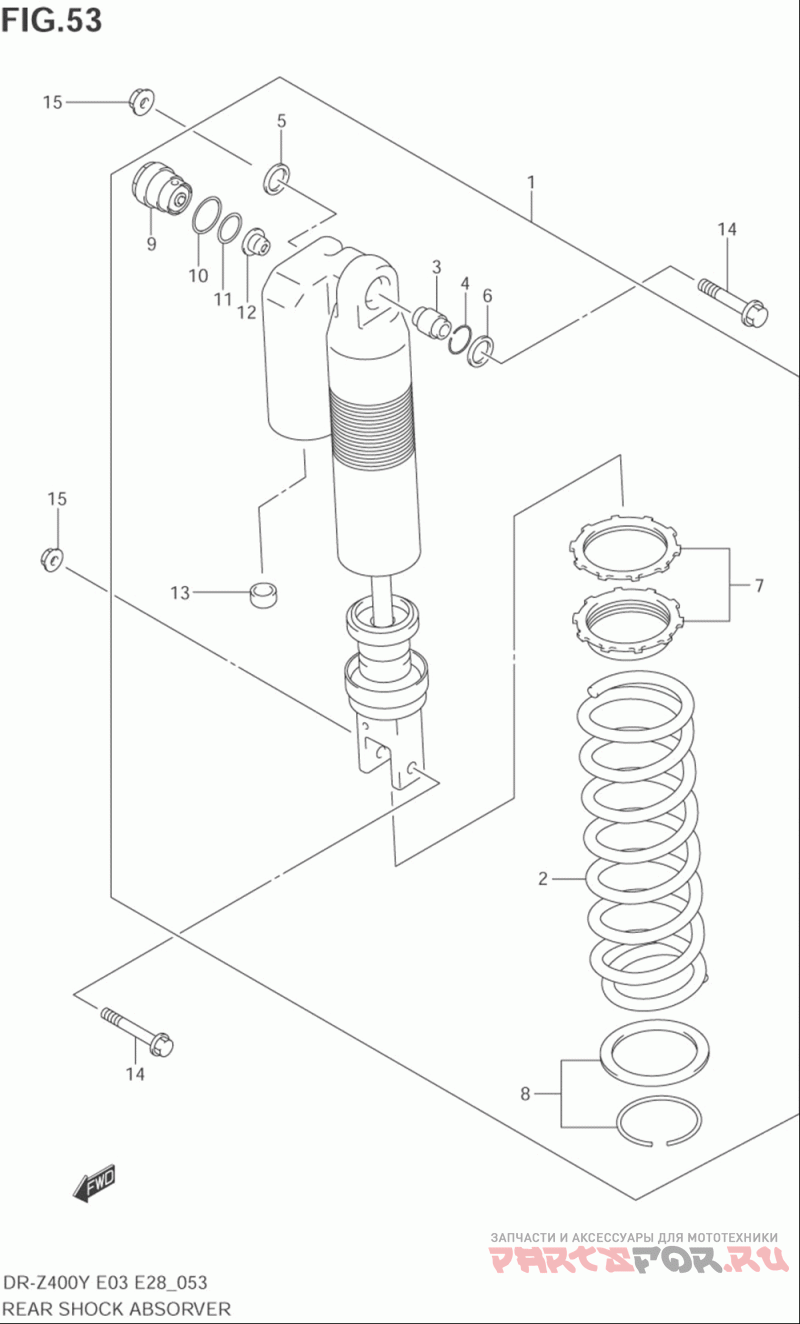

Задний амортизатор для мотоциклов Suzuki (Америка) DR-Z400, E (2001)

Задний амортизатор

Suzuki (Америка) DR-Z400, E

oem код

название

цена

1-1

62100-29F30-163

Absorber Assy, Rear Shock (e3model Y)

1-2

62100-29F30-37W

Absorber Assy, Rear Shock (e3model K1)

1-3

62100-29F60-37W

Absorber Assy, Rear Shock (e3model K2/k3/k4)

1-4

62100-29F00-163

Absorber Assy, Rear Shock (e28model Y)

2-1

62211-29F00-163

.spring (yellow)

2-2

62211-29F00-37W

.spring (red)

2-3

62211-29FB0

.spring (soft) (k=50n/mm)

2-4

62211-29FA0

.spring (hard) (k=54n/mm)

.bearing (10x26x22)

.ring

.seal, Dust Rh

.seal, Dust Lh

.adjuster Nut Set

.spring Seat Set

9-1

62130-29F00

.bolt, Plug

9-2

.bolt, Plug

.o Ring, Outer

.o Ring, Inner

.collar

Колпачек

Bolt (10x47.5)

Гайка
