Exhaust valve (model x/y) для мотоциклов Suzuki (Америка) RM250 (2000)

Москва и регионы России

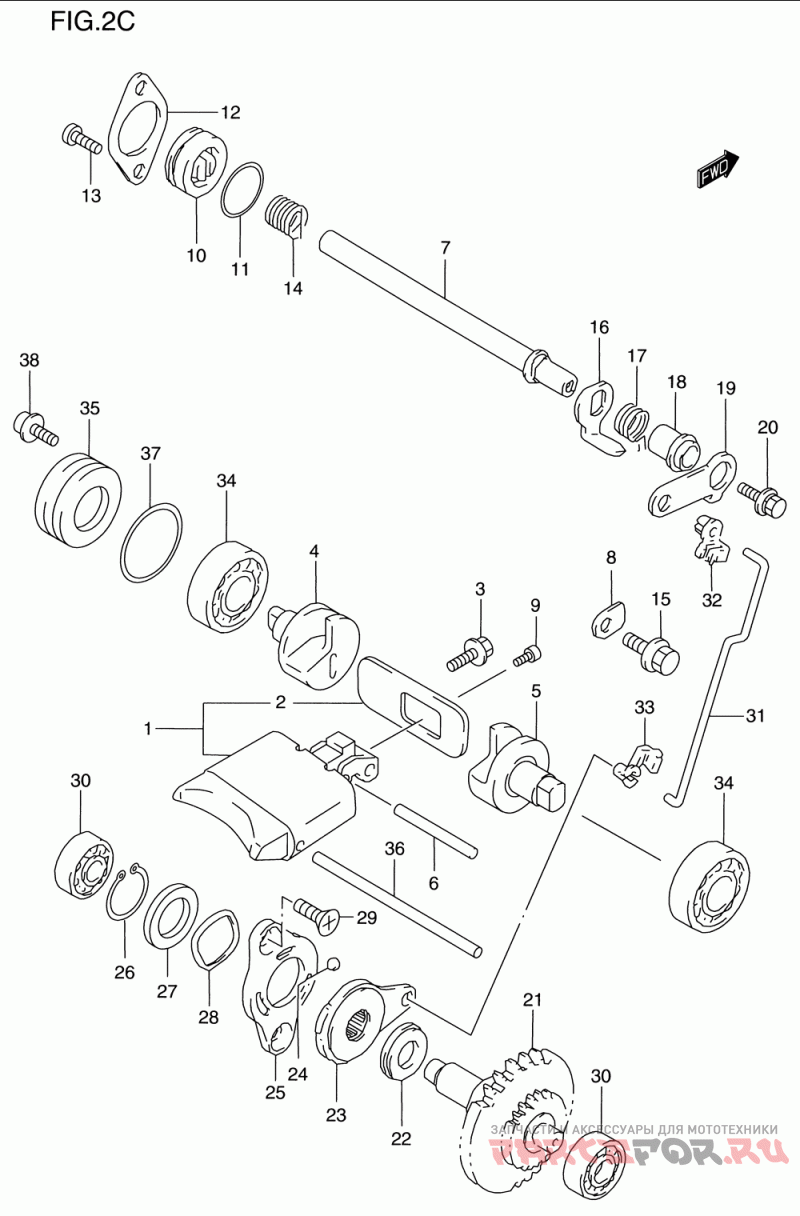

Exhaust valve (model x/y)

Suzuki (Америка) RM250

Exhaust valve (model x/y)

#

oem код

название

цена

1-1

Valve, Exhaust Main

Valve, Exhaust Main

1-2

Valve, Exhaust Main

Valve, Exhaust Main

2

.guide, Exhaust Valve

.guide, Exhaust Valve

3

Винт

Винт

4

Valve, Exh Side,

Valve, Exh Side,

5

Valve, Exh Side,

Valve, Exh Side,

6

P:n

P:n

7

Shaft, Exhaust Valve

Shaft, Exhaust Valve

8

Retainer, Shift Cam Bearing

Retainer, Shift Cam Bearing

9

Bolt (4x8)

Bolt (4x8)

10

Cap, Exhaust Valve

Cap, Exhaust Valve

11

O Ring (d:1.9, Id:22.6)

O Ring (d:1.9, Id:22.6)

12-1

Retainer, Exhaust Valve

Retainer, Exhaust Valve

13

Винт

Винт

14-1

Пружина

Пружина

14-2

Пружина

Пружина

15

Болт

Болт

16

Lever, Exhaust Valve No.2

Lever, Exhaust Valve No.2

17

Пружина

Пружина

18

Проставка

Проставка

19

Lever, Exhaust Valve No.1

Lever, Exhaust Valve No.1

20

Bolt (5x12)

Bolt (5x12)

21

Governor Assy, Exhaust Valve

Governor Assy, Exhaust Valve

22

Thrust Bearing (10.1x22x2.8)

Thrust Bearing (10.1x22x2.8)

23

Actuator, Exhaust Valve

Actuator, Exhaust Valve

24

.ball

.ball

25

Stator, Actuator

Stator, Actuator

26

Пружинное стопорное кольцо

Пружинное стопорное кольцо

27

Shim (19.1x25x0.3)

Shim (19.1x25x0.3)

28

Гровер

Гровер

29

Винт (5x10)

Винт (5x10)

30

Bearing (8x22x7)

Bearing (8x22x7)

31

Rod, Exhaust Valve

Rod, Exhaust Valve

32

Bush, Exhaust Valve Rod

Bush, Exhaust Valve Rod

33

Bush, Exhaust Valve Rod No.2

Bush, Exhaust Valve Rod No.2

34

Bearing, Side Valve

Bearing, Side Valve

35

Cap, Ex Side Valve

Cap, Ex Side Valve

36

Штифт

Штифт

37

O Ring (d:3.1, Id:26.4)

O Ring (d:3.1, Id:26.4)
