Exhaust valve (model v) для мотоциклов Suzuki (Америка) RM250 (2000)

Москва и регионы России

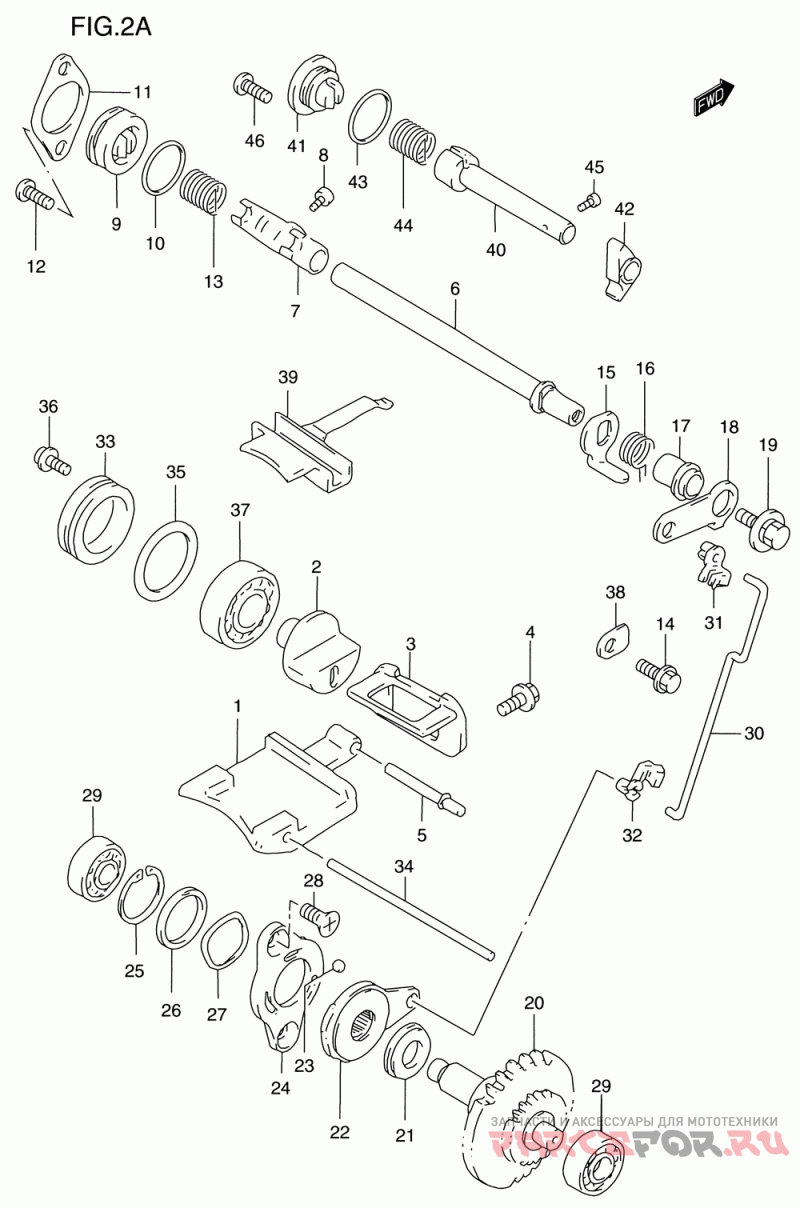

Exhaust valve (model v)

Suzuki (Америка) RM250

Exhaust valve (model v)

#

oem код

название

цена

1

Valve, Exhaust Main

Valve, Exhaust Main

2

Valve, Exhaust Side

Valve, Exhaust Side

3

Направляющая клапана

Направляющая клапана

4

Винт

Винт

5

Штифт

Штифт

6

Shaft, Exhaust Valve

Shaft, Exhaust Valve

7

Arm, Exhaust Valve Shaft

Arm, Exhaust Valve Shaft

8

Bolt (4x8)

Bolt (4x8)

9

Cap, Exhaust Valve

Cap, Exhaust Valve

10

O Ring (d:1.9, Id:22.6)

O Ring (d:1.9, Id:22.6)

11

Retainer, Exhaust Valve

Retainer, Exhaust Valve

12

Винт

Винт

13

Пружина

Пружина

14

Болт

Болт

15

Lever, Exhaust Valve No.2

Lever, Exhaust Valve No.2

16

Пружина

Пружина

17

Проставка

Проставка

18

Lever, Exhaust Valve No.1

Lever, Exhaust Valve No.1

19

Bolt (5x12)

Bolt (5x12)

20

Governor Assy, Exhaust Valve

Governor Assy, Exhaust Valve

21

Thrust Bearing (10.1x22x2.8)

Thrust Bearing (10.1x22x2.8)

22

Actuator, Exhaust Valve

Actuator, Exhaust Valve

23

.ball

.ball

24

Stator, Actuator

Stator, Actuator

25

Пружинное стопорное кольцо

Пружинное стопорное кольцо

26

Shim (19.1x25x0.3)

Shim (19.1x25x0.3)

27

Гровер

Гровер

28

Винт (5x10)

Винт (5x10)

29

Bearing (8x22x7)

Bearing (8x22x7)

30

Rod, Exhaust Valve

Rod, Exhaust Valve

31

Bush, Exhaust Valve Rod

Bush, Exhaust Valve Rod

32

Bush, Exhaust Valve Rod No.2

Bush, Exhaust Valve Rod No.2

33

Cap, Ex Side Valve

Cap, Ex Side Valve

34

Штифт

Штифт

35

O Ring (d:3.1, Id:26.4)

O Ring (d:3.1, Id:26.4)

37

Bearing, Side Valve

Bearing, Side Valve

38

Retainer, Shift Cam Bearing

Retainer, Shift Cam Bearing

39

Valve, Exhaust Main Mid

Valve, Exhaust Main Mid

40

Shaft, Cylinder Cover No.2

Shaft, Cylinder Cover No.2

41

Cap, Exhaust Valve

Cap, Exhaust Valve

42

Рычаг

Рычаг

43

O Ring (d:1.9, Id:14.5)

O Ring (d:1.9, Id:14.5)

44

Spring, Exhaust Valve Shaft

Spring, Exhaust Valve Shaft
