Carburetor (model v) для мотоциклов Suzuki (Америка) RM250 (2000)

Москва и регионы России

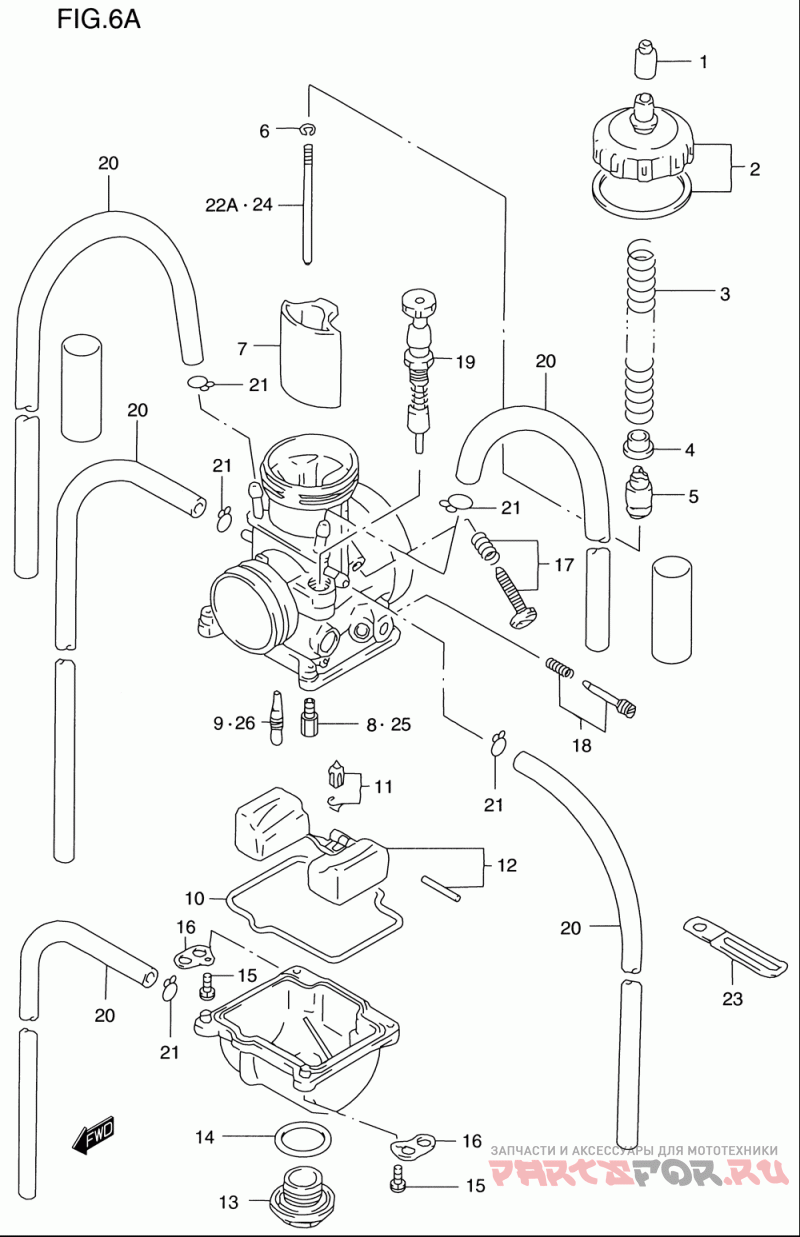

Carburetor (model v)

Suzuki (Америка) RM250

Carburetor (model v)

#

oem код

название

цена

Карбюратор

Карбюратор

1

.cap, Carburetor

.cap, Carburetor

2

.cap Set, Top

.cap Set, Top

3

.spring, Throttle Valve

.spring, Throttle Valve

4

.collar, Throttle Valve

.collar, Throttle Valve

5

.holder, Cable

.holder, Cable

6

.clip, Needle

.clip, Needle

7

.valve, Throttle

.valve, Throttle

8

Jet, Main (175)

Jet, Main (175)

9

Jet, Pilot (48)

Jet, Pilot (48)

10

.gasket, Float Chamber

.gasket, Float Chamber

11

.valve Set, Float

.valve Set, Float

12

.float Set

.float Set

13

.bolt, Drain

.bolt, Drain

14

Кольцо

Кольцо

15

Винт

Винт

16

.binder

.binder

17

.screw Set, Stop

.screw Set, Stop

18

.screw Set, Air

.screw Set, Air

19

.starter Valve

.starter Valve

20

.hose, 4x7x620 (up/rh L:620?580up/lh L:620?550rh L:620?400lh L:620?360)

.hose, 4x7x620 (up/rh L:620?580up/lh L:620?550rh L:620?400lh L:620?360)

21

Зажим

Зажим

22

09351-35653-600

.hose (3.5x6.5x600)

.hose (3.5x6.5x600)

22A

Needle, Jet (n1ed)

Needle, Jet (n1ed)

23

Зажим

Зажим

24-1

Needle, Jet (n1eb)

Needle, Jet (n1eb)

24-2

Needle, Jet (n1ec)

Needle, Jet (n1ec)

24-4

Needle, Jet (niee)

Needle, Jet (niee)

24-5

Needle, Jet (nief)

Needle, Jet (nief)

24-6

Needle, Jet (n0zb)

Needle, Jet (n0zb)

24-7

Needle, Jet (n0zc)

Needle, Jet (n0zc)

24-8

Needle, Jet (n0zd)

Needle, Jet (n0zd)

24-9

Needle, Jet (noze)

Needle, Jet (noze)

24-10

Needle, Jet (nozf)

Needle, Jet (nozf)

25-1

Jet, Main (160)

Jet, Main (160)

25-2

Jet, Main (162)

Jet, Main (162)

25-3

Jet, Main (165)

Jet, Main (165)

25-4

Jet, Main (168)

Jet, Main (168)

25-5

Jet, Main (170)

Jet, Main (170)

25-6

Jet, Main (172)

Jet, Main (172)

25-8

Jet, Main (178)

Jet, Main (178)

25-9

Jet, Main (180)

Jet, Main (180)

25-10

Jet, Main (185)

Jet, Main (185)

25-11

Jet, Main (190)

Jet, Main (190)

25-12

Jet, Main (195)

Jet, Main (195)

25-13

Jet, Main (200)

Jet, Main (200)

25-14

Jet, Main (205)

Jet, Main (205)

25-15

Jet, Main (210)

Jet, Main (210)

25-16

Jet, Main (215)

Jet, Main (215)

25-17

Jet, Main (220)

Jet, Main (220)

25-18

Jet, Main (225)

Jet, Main (225)

25-19

Jet, Main (230)

Jet, Main (230)

26-1

Jet, Pilot (35)

Jet, Pilot (35)

26-2

Jet, Pilot (40)

Jet, Pilot (40)

26-3

Jet, Pilot (42)

Jet, Pilot (42)

26-4

Jet, Pilot (45)

Jet, Pilot (45)

26-6

Jet, Pilot (50)

Jet, Pilot (50)

26-7

Jet, Pilot (52)

Jet, Pilot (52)

26-8

Jet, Pilot (55)

Jet, Pilot (55)

26-9

Jet, Pilot (58)

Jet, Pilot (58)

26-10

Jet, Pilot (60)

Jet, Pilot (60)
