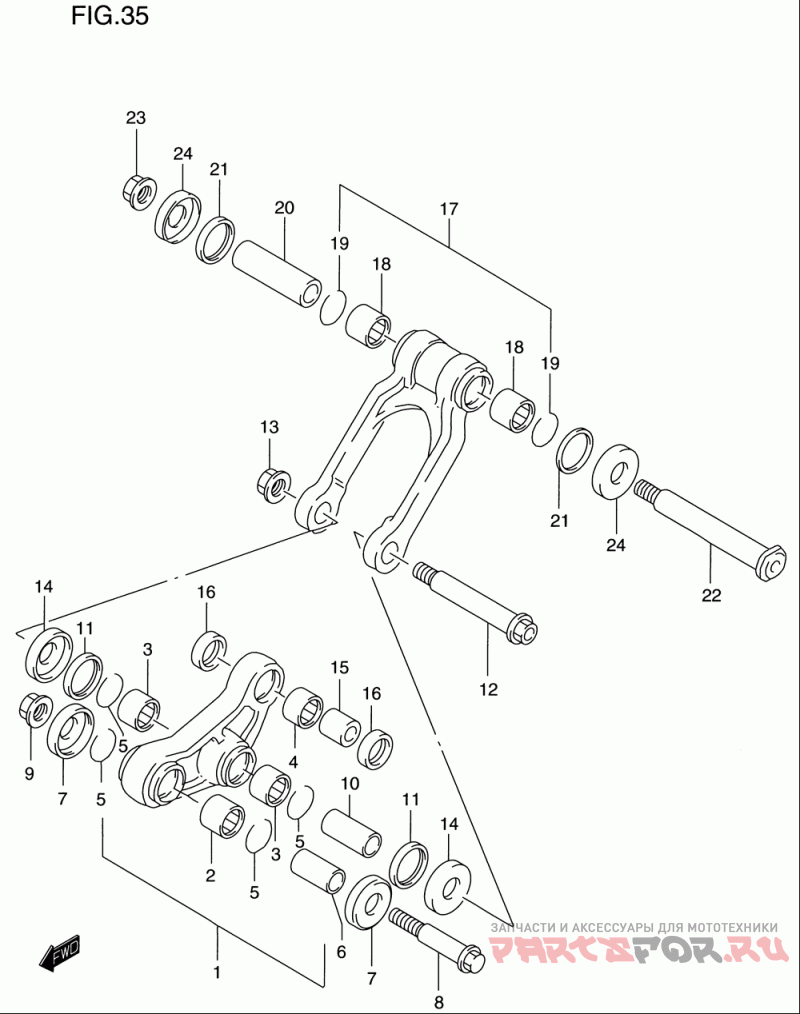

Rear cushion lever (model t/v)

Suzuki (Америка) RM125

Suzuki (Америка)
#oem кодцена
1-1
62600-36811
Lever Set, Rear Cushion
1-2
62600-36831
Lever Set, Rear
2
09263-20053
.bearing (20x27x25)
3
09263-22062
.bearing (22x28x20)
4
09263-20083
.bearing, Rear (20x26x12)
5
09381-26002
.ring
6
62317-27C10
Spacer, Front (12x20x34)
7
62162-28E00
Seal, Front Dust
8
62658-27C10
Bolt, Front (12x68)
9
08319-3112A
Гайка
10
62646-36E00
Spacer, Center (16x22x58)
11
62683-36E00
Seal, Rod Dust
12-1
62621-36E00
Bolt, Center (14x101)
12-2
62621-28E01
Bolt, Center (14x109)
13
08319-3114A
Nut, Rear Cushion Rod
14
62682-36E00
Cap, Rod
15
62684-36E00
Spacer, Rear
16
09284-20001
Dust Seal, Rear
17-1
62600-36821
Rod Set, Rear Cushion Lever
17-2
62600-36840
Rod Set, Rear Cushion Lever
20
62645-36E00
Spacer, Rod (16x22x72)
22
62622-36E00
Bolt, Rod (14x132)
