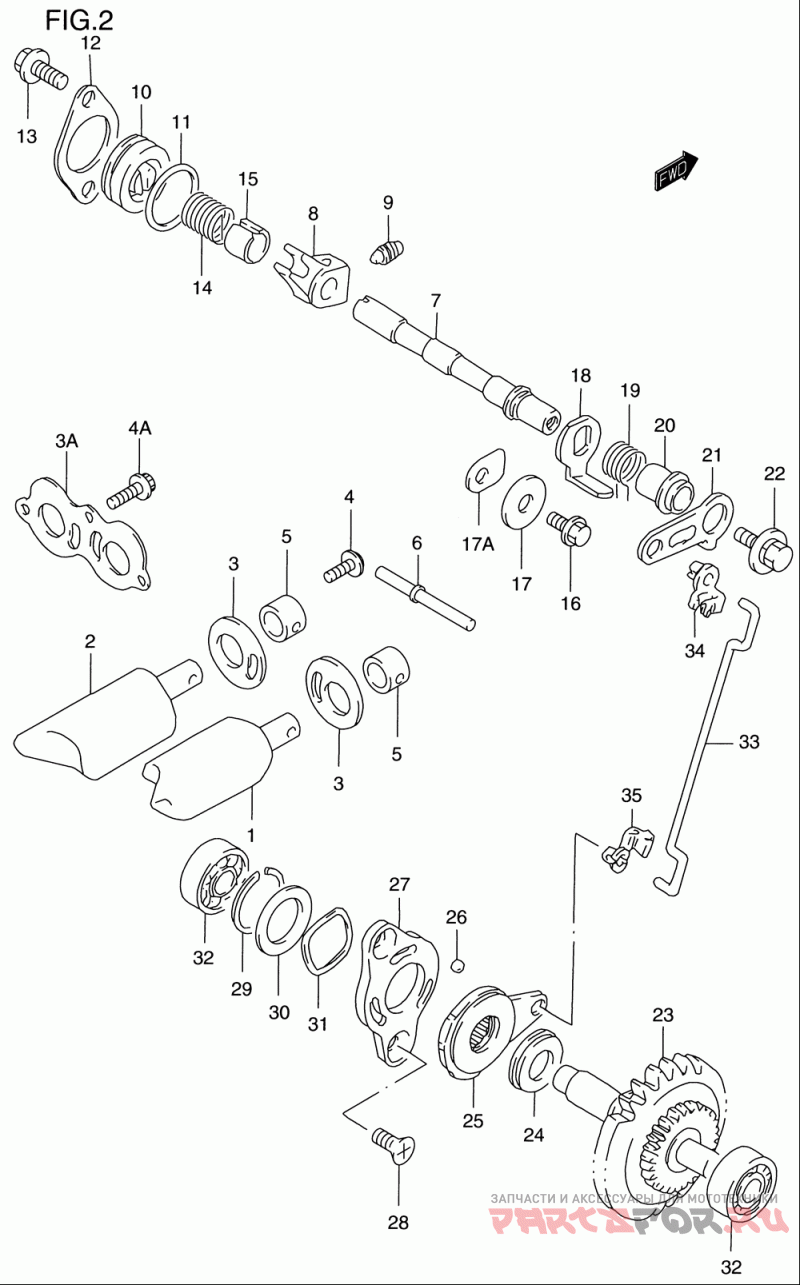

Exhaust valve (model t/v/w/x)

Suzuki (Америка) RM125

Suzuki (Америка)
#oem кодцена
1-1
11254-36E10
Valve, Exhaust Rh
1-3
11254-36E20
Valve, Exhaust Rh
2-1
11255-36E10
Valve, Exhaust Lh
2-3
11255-36E20
Valve, Exhaust Lh
3
11261-36E00
Plate, Exhaust Valve
3A
11261-36E10
Plate, Exhaust Valve
4
02142-0512A
Винт
4A
07130-0512B
Bolt, Sensor
5
11263-08D11
Spacer, Exhaust Valve
6
11253-19D80
Штифт
7-1
11259-27C30
Shaft, Exhaust Valve
7-2
11259-36E00
Shaft, Exhaust Valve
8-1
11264-00B24
Arm, Exhaust Valve Shaft
9
09134-06013
Screw (6x10)
10
11258-27C01
Cap, Exhaust Valve
11
09280-23002
O Ring (d:1.9, Id:22.6)
12
11265-00B22
Retainer, Exhaust Valve
13
02162-0512A
Винт
14-1
09444-16008
Пружина
14-2
11257-36E00
Пружина
15
11269-00B20
Проставка
16
01547-0610B
Болт
17
08212-06201
.thrust Washer
17A
24741-21A00
Retainer, Shift Cam Bearing
18
11267-00B21
Lever, Exhaust Valve No.2
19-1
09444-15010
Пружина
19-2
09444-16010
Пружина
20
11268-01B01
Проставка
21
11266-00B21
Lever, Exhaust Valve No.1
22
09118-05003
Bolt, Exhaust Valve Shaft
23-1
12670-27C10
Governor Assy, Exhaust Valve
23-2
12670-36E00
Governor Assy, Exhaust Valve
23-3
12670-36E11
Governor Assy, Exhaust Valve
24
09263-10002
Thrust Bearing (10.1x22x2.8)
25
12680-01820
Actuator, Exhaust Valve
26
06111-06003
.ball
27
12682-01B02
Stator, Actuator
28
09120-05003
Винт (5x10)
29
09380-19003
Пружинное стопорное кольцо
30
09181-19004
Shim (19.1x25x0.3)
31
09164-19001
Гровер
32
09262-08005
Bearing (8x22x7)
33-1
12685-27C00
Rod, Exhaust Valve
33-2
12685-36E00
Rod, Exhaust Valve
33-3
12685-36E11
Rod, Exhaust Valve
34-1
12686-01B00
Bush, Exhaust Valve Rod
34-2
12686-36E00
Bush, Exhaust Valve No.2
35
12687-01B00
Bush, Exhaust Valve Rod No.2
