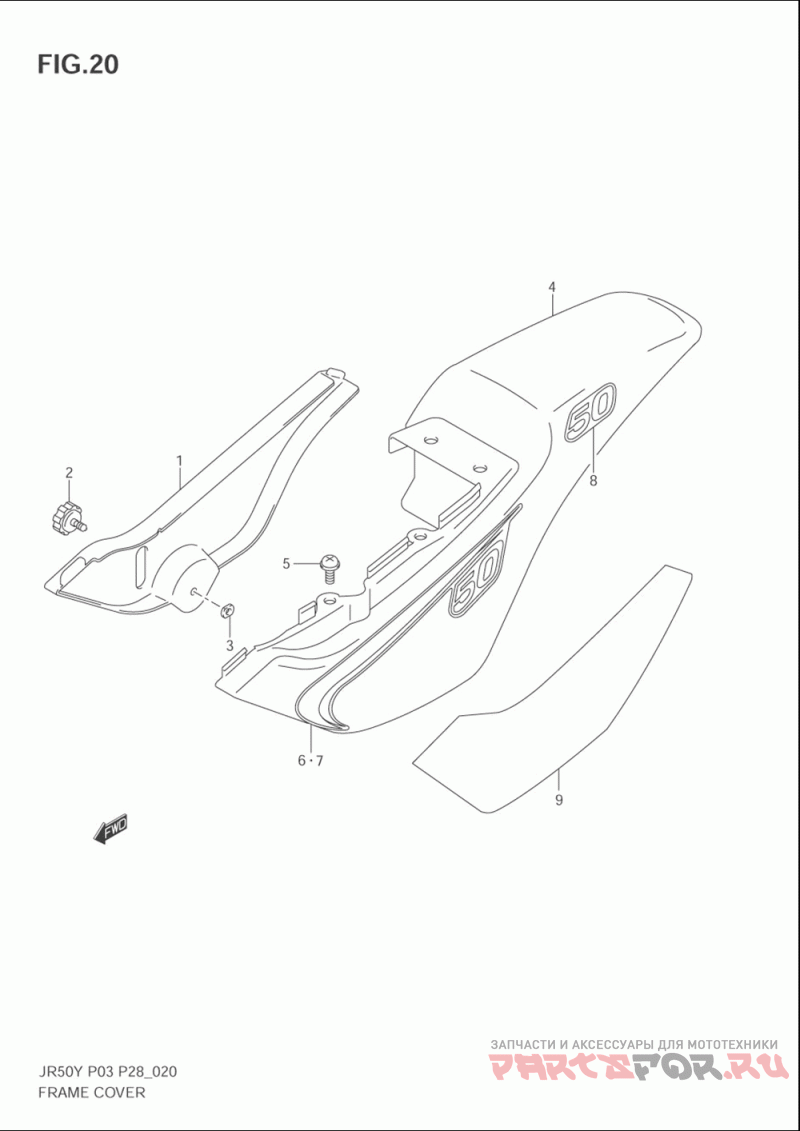

Обтекатель рамы
Suzuki (Америка) JR50
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 47111-09AA0-30H Cover, Frame Rh (white) | Cover, Frame Rh (white) | |
1-2 | 47111-09AA0-YU1 Cover, Frame Rh (yellow) | Cover, Frame Rh (yellow) | |
2 | 47130-33101 Ручка | Ручка | |
3 | 09152-06002 Stopper, Knob | Stopper, Knob | |
4-1 | 47211-09AA0-30H Cover, Frame Lh (white) | Cover, Frame Lh (white) | |
4-2 | 47211-09AA0-YU1 Cover, Frame Lh (yellow) | Cover, Frame Lh (yellow) | |
5 | 09136-06015 Винт | Винт | |
6 | 68135-09AA0-J7B Emblem, Rh | Emblem, Rh | |
7 | 68145-09AA0-J7B Emblem, Lh | Emblem, Lh | |
8 | 68131-09AA0-GY8 Эмблема | Эмблема | |
9 | 68145-09AB0-30H Tape, Lh (white) | Tape, Lh (white) |
