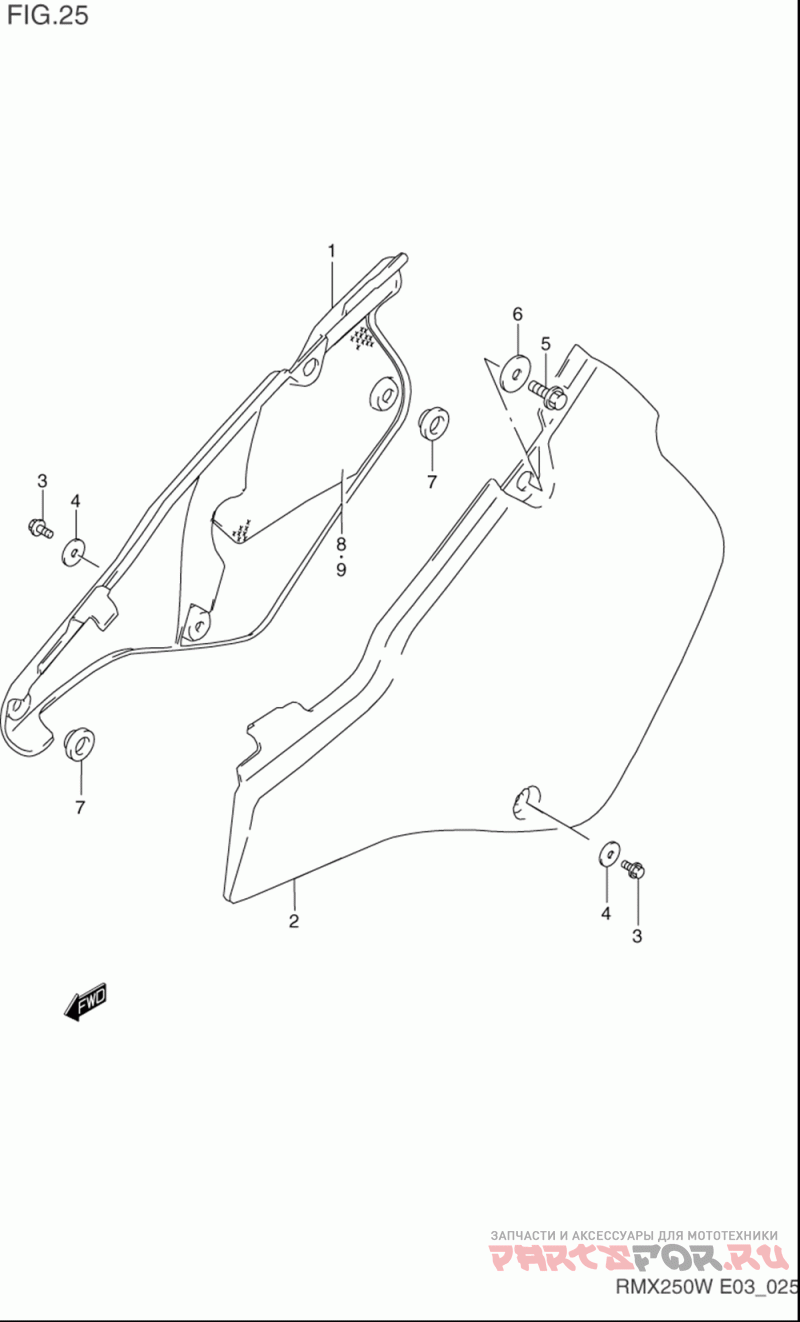

Обтекатель рамы
Suzuki (Америка) RMX250
| # | oem код | название | цена |
|---|---|---|---|
1 | 47111-05D00-30H Cover, Frame Rh (white) | Cover, Frame Rh (white) | |
2 | 47211-27C00-30H Cover, Frame Lh (white) | Cover, Frame Lh (white) | |
3 | 01547-06167 .bolt, Eng Cov Fastener | .bolt, Eng Cov Fastener | |
4 | 09168-06027 Шайба | Шайба | |
5 | 01550-08207 ..bolt, Lower | ..bolt, Lower | |
6 | 09169-08045 Шайба | Шайба | |
7 | 09321-10018 Cushion, Muffler | Cushion, Muffler | |
8 | 47166-05D00 Heat Shield, Rear Rh | Heat Shield, Rear Rh | |
9 | 47167-05D00 Heat Shield, Front Rh | Heat Shield, Front Rh |
