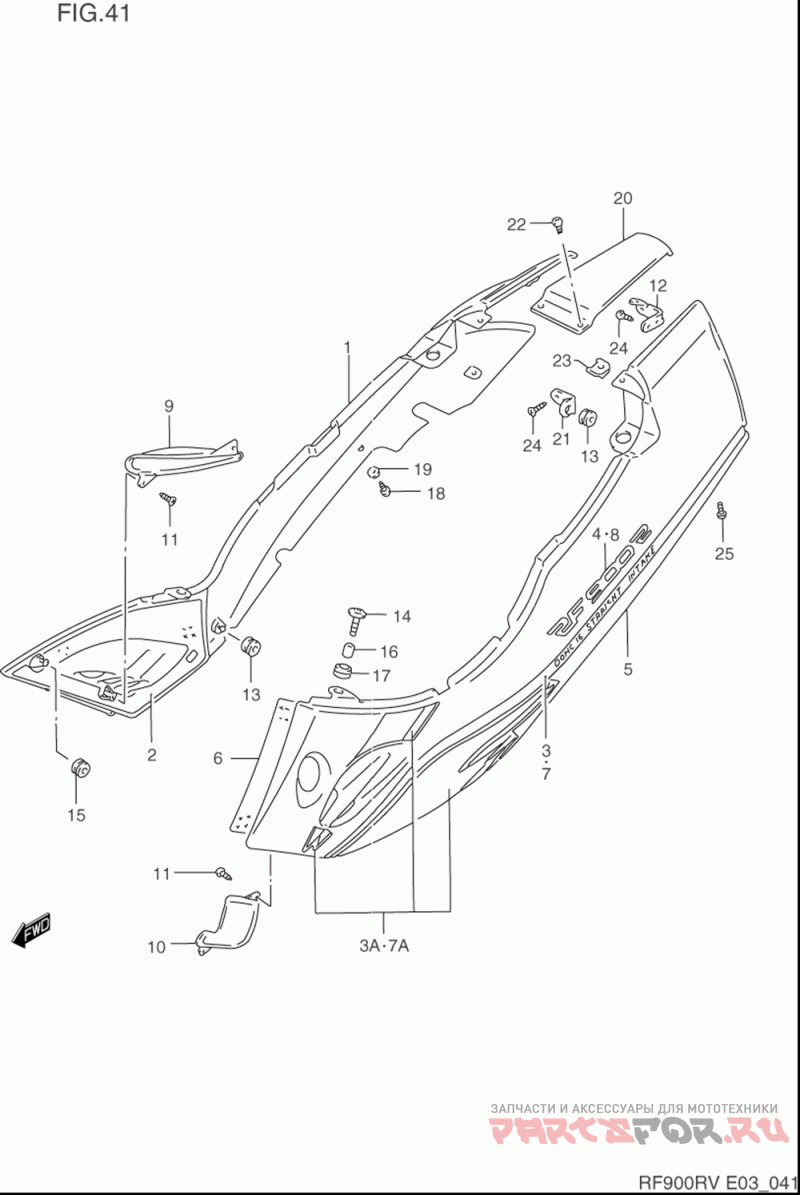

Frame cover (model r/s)

Suzuki (Америка) RF900R

Suzuki (Америка)
#oem кодцена
1-1
47100-31E00-19A
Cover, Frame Rh (red)
1-2
47100-31E00-33J
Cover, Frame Rh (black)
1-3
47100-31E00-1UH
Cover, Frame Rh (green)
1-4
47100-31E10-0FP
Cover, Frame Rh (silver)
2
47117-31E00
.shield, Heat Rh
3-1
68130-31E00-B7G
.tape Set, Rh
3-2
68130-31E00-B7H
.tape Set, Rh
3-3
68130-31E00-D3S
.tape Set, Rh
3A
68130-31E10-D8M
.tape Set, No.2 Rh
3-4
68130-31E00-D9E
.tape Set, Rh
4-1
68131-31E00-AF7
.emblem
4-2
68131-31E00-B8U
.emblem
4-3
68131-31E00-D3T
.emblem
4-4
68131-31E00-D8P
.emblem
5-1
47200-31E00-19A
Cover, Frame Lh (red)
5-2
47200-31E00-33J
Cover, Frame Lh (black)
5-3
47200-31E00-1UH
Cover, Frame Lh (green)
5-4
47200-31E10-0FP
Cover, Frame Lh (silver)
6
47217-31E00
.shield, Heat Lh
7-1
68140-31E00-B7G
.tape Set, Lh
7-2
68140-31E00-B7H
.tape Set, Lh
7-3
68140-31E00-D3S
.tape Set, Lh
7-4
68140-31E00-D9E
.tape Set, Lh
7A
68140-31E10-D8M
.tape Set, No.2 Lh
9
47511-31E00
Cover, Inner Rh
10
47611-31E00
Cover, Inner Lh
11
03541-1412A
Винт
12-1
47191-21E00
Bracket, Frame Cover Rh
12-2
47192-21E00
Bracket, Frame Cover Lh
13
09320-08018
Cushion, Brace
14-1
09136-06102
Винт
14-2
09116-06131
Болт
15
47161-21E00
Подушка, передняя
16
09180-06265
Проставка
17
09320-08061
Подушка
18
02142-0512A
Винт
19
09161-05017
Шайба
20-1
47311-31E00-19A
Cover, Frame Center (red)
20-2
47311-31E00-33J
Cover, Frame Center (black)
20-3
47311-31E00-1UH
Cover, Frame Center (green)
20-4
47311-31E00-0FP
Cover, Frame Center (silver)
21
47193-21E00
Bracket, Rear
23
09148-05021
Nut, Fitting
25
03241-1516A
Screw, Seat Tail Cover
