Clutch (model s/t/v) для мотоциклов Suzuki (Америка) RF900R (1997)

Москва и регионы России

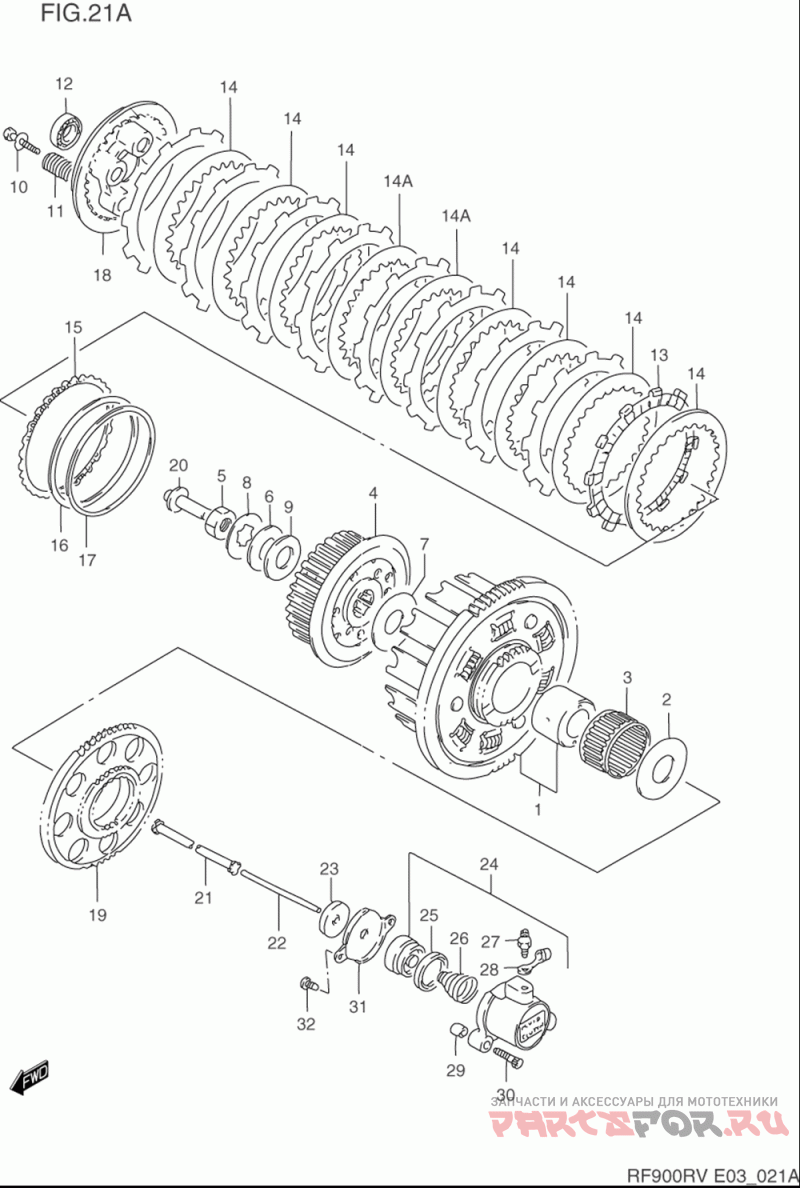

Clutch (model s/t/v)

Suzuki (Америка) RF900R

Clutch (model s/t/v)

#

oem код

название

цена

1-1

Gear Assy, Primary Driven

Gear Assy, Primary Driven

2

Washer (25x54x2.5)

Washer (25x54x2.5)

3

Bearing (35x40x35.8)

Bearing (35x40x35.8)

4

Hub, Clutch Sleeve

Hub, Clutch Sleeve

5

Гайка

Гайка

6

Шайба

Шайба

7

Washer (25x50x25)

Washer (25x50x25)

8

Шайба

Шайба

9

Шайба

Шайба

10

Bolt, Clutch Spring

Bolt, Clutch Spring

11

Пружина

Пружина

12

Bearing, 15x35x1

Bearing, 15x35x1

13

Plate, Clutch Drive No.1

Plate, Clutch Drive No.1

14

Plate, Clutch Driven,no.1

Plate, Clutch Driven,no.1

14A

Plate, Clutch Driven No.2

Plate, Clutch Driven No.2

15

Plate, Clutch Drive

Plate, Clutch Drive

16-1

Washer, Clutch Plate

Washer, Clutch Plate

17

Seat, Wave Washer

Seat, Wave Washer

18

Disk, Clutch Pressure

Disk, Clutch Pressure

19

Gear, Alternator (nt:34/61)

Gear, Alternator (nt:34/61)

20

Piece, Clutch Push

Piece, Clutch Push

21

Rod, Clutch Push, Rh

Rod, Clutch Push, Rh

22

Rod, Clutch Push

Rod, Clutch Push

23

Oil Seal (6x34x5.5)

Oil Seal (6x34x5.5)

24

Cylinder, Clutch Release

Cylinder, Clutch Release

25

.cup

.cup

26

Пружина

Пружина

27

Штуцер перепускной

Штуцер перепускной

28

.cap, Bleeder

.cap, Bleeder

29

Pin, Cl Rlse Cyl

Pin, Cl Rlse Cyl

30

Болт

Болт

31

Cover, Cylinder

Cover, Cylinder

32

Винт

Винт
