Exhaust valve (model p/r/s/t) для мотоциклов Suzuki (Америка) RMX250 (1996)

Москва и регионы России

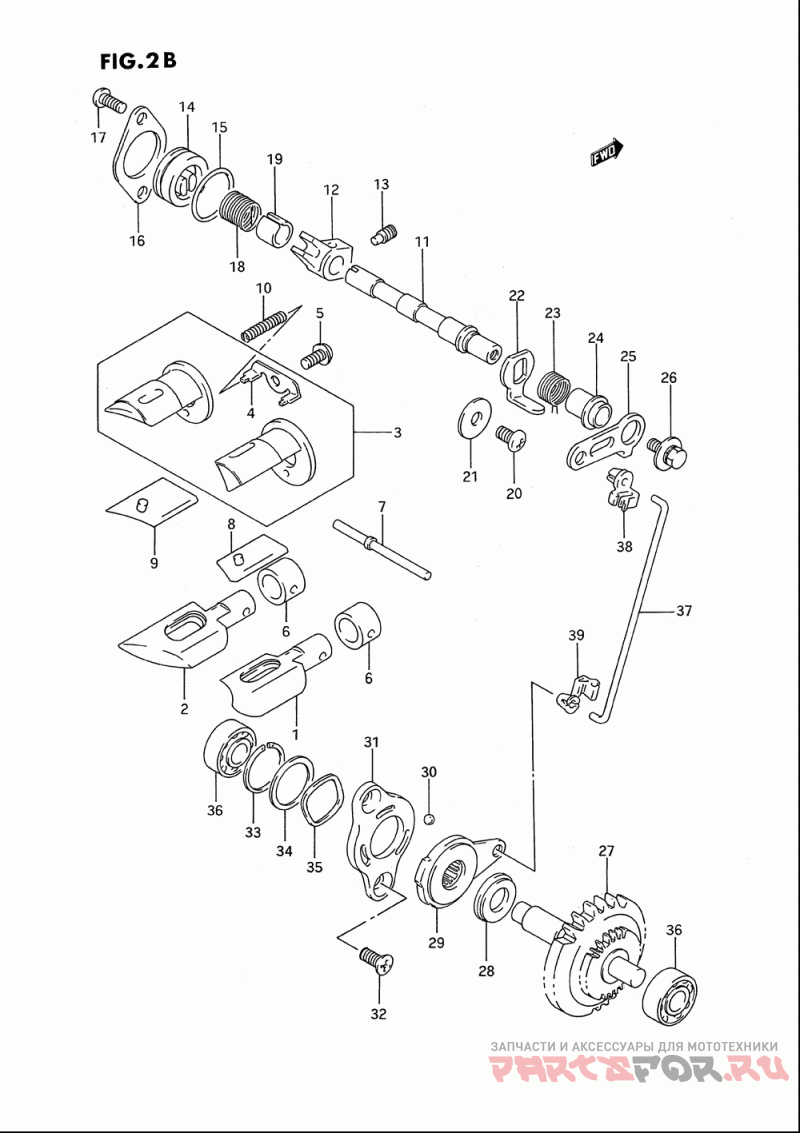

Exhaust valve (model p/r/s/t)

Suzuki (Америка) RMX250

Exhaust valve (model p/r/s/t)

#

oem код

название

цена

1-1

Valve, Exhaust Rh

Valve, Exhaust Rh

1-2

Valve, Exhaust Rh

Valve, Exhaust Rh

2-1

Valve, Exhaust Lh

Valve, Exhaust Lh

2-2

Valve, Exhaust Lh

Valve, Exhaust Lh

3

Guide Set, Exhaust Valve

Guide Set, Exhaust Valve

4

.stopper, Spring

.stopper, Spring

5-1

Винт

Винт

5-2

Винт

Винт

5-3

Винт

Винт

6

Spacer, Exhaust Valve

Spacer, Exhaust Valve

7

Штифт

Штифт

8-1

Valve, Exh Middl

Valve, Exh Middl

8-2

Valve, Exhaust No.2 Rh

Valve, Exhaust No.2 Rh

9-1

Valve, Exh Middl

Valve, Exh Middl

9-2

Valve, Exhaust No.2 Lh

Valve, Exhaust No.2 Lh

10

Пружина

Пружина

11

Shaft, Exhaust V

Shaft, Exhaust V

12

Arm, Exhaust Valve Shaft

Arm, Exhaust Valve Shaft

13

Screw (6x10)

Screw (6x10)

14

Cap, Exhaust Valve

Cap, Exhaust Valve

15

O Ring (d:1.9, Id:22.6)

O Ring (d:1.9, Id:22.6)

16

Retainer, Exhaust Valve

Retainer, Exhaust Valve

17-1

Винт

Винт

17-2

.screw, Vacuum Valve

.screw, Vacuum Valve

17-3

Винт

Винт

18

Пружина

Пружина

19

Проставка

Проставка

20-1

Винт

Винт

20-2

Болт

Болт

21

Шайба

Шайба

22

Lever, Exhaust Valve No.2

Lever, Exhaust Valve No.2

23

Пружина

Пружина

24

Проставка

Проставка

25

Lever, Exhaust Valve No.1

Lever, Exhaust Valve No.1

26

Bolt (5x12)

Bolt (5x12)

27-1

Governor Assy, Exhaust Valve

Governor Assy, Exhaust Valve

27-2

Governor Assy, E

Governor Assy, E

28

Thrust Bearing (10.1x22x2.8)

Thrust Bearing (10.1x22x2.8)

29

Actuator, Exhaust Valve

Actuator, Exhaust Valve

30

.ball

.ball

31

Stator, Actuator

Stator, Actuator

32

Винт (5x10)

Винт (5x10)

33

Пружинное стопорное кольцо

Пружинное стопорное кольцо

34

Shim (19.1x25x0.3)

Shim (19.1x25x0.3)

35

Гровер

Гровер

36

Bearing (8x22x7)

Bearing (8x22x7)

37

Rod, Exhaust Valve

Rod, Exhaust Valve

38

Bush, Exhaust Valve Rod

Bush, Exhaust Valve Rod

39

Bush, Exhaust Valve Rod No.2

Bush, Exhaust Valve Rod No.2
