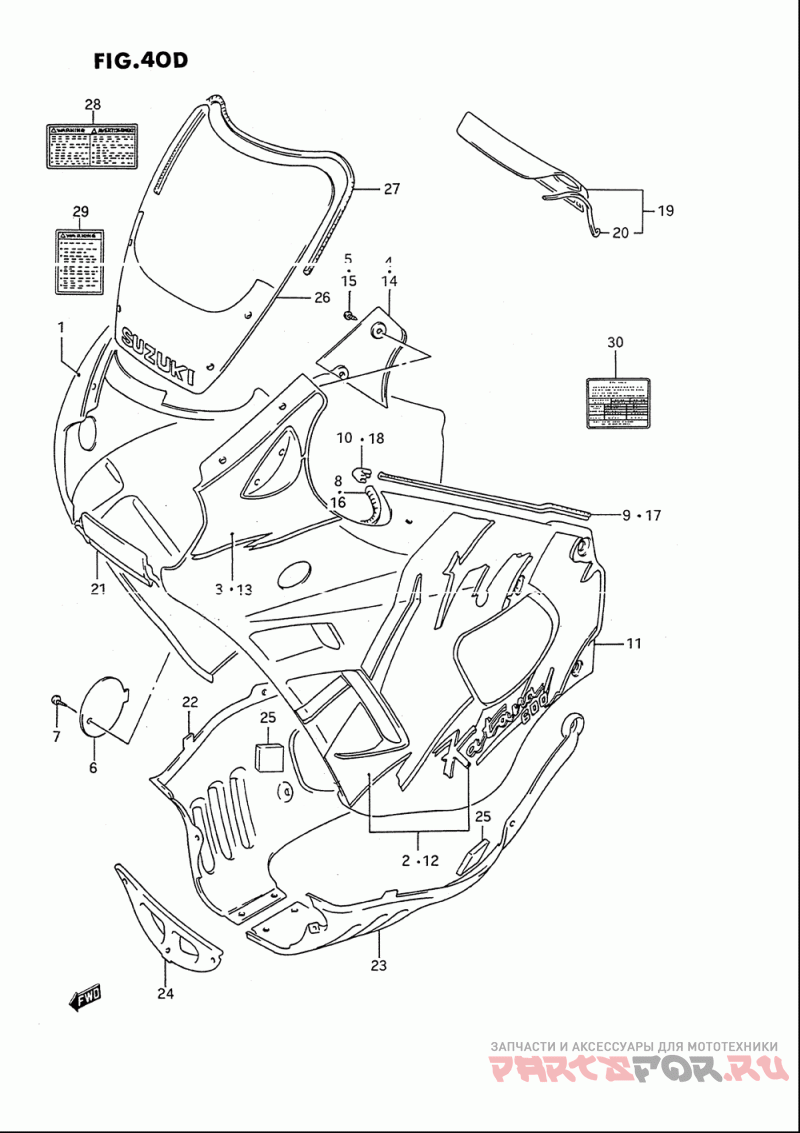

Cowling body (model n)

Suzuki (Америка) GSX600F KATANA

Suzuki (Америка)
#oem кодцена
1-1
94401-43C51-19A
Cover Assy, Cowl
1-2
94401-43C51-33J
Cover Assy, Cowl
2-1
68680-43C00-1NP
Поршень комплект (увел1,0)
2-2
68680-43C00-1NR
Поршень комплект (увел1,0)
3-1
68685-20C50-K45
.tape, Side Upper Rh
3-2
68685-20C50-K46
.tape, Side Upper Rh
4-1
94433-19C01-19A
.cover, Meter Side Rh (red)
4-2
94433-19C01-33J
.cover, Meter Side Rh (black)
5
03541-0410A
Винт
6-1
94435-19C01-19A
.lid, Oil (red)
6-2
94435-19C01-33J
.lid, Oil (black)
7
09139-06030
Болт
8
94631-49310
.molding, Front
9
94635-19C00
Molding, License Holder
10
94438-19C00
.joint
11-1
94402-43C51-19A
Cover Assy, Cowl
11-2
94402-43C51-33J
Cover Assy, Cowl
12-1
68690-43C00-1NP
.tape Set, Side Lh
12-2
68690-43C00-1NR
.tape Set, Side Lh
13-1
68695-20C50-K45
.tape, Side Upper Lh
13-2
68695-20C50-K46
.tape, Side Upper Lh
14-1
94443-19C01-19A
.cover, Meter Side Lh (red)
14-2
94443-19C01-33J
.cover, Meter Side Lh (black)
19
94420-19C02
Cover, Meter
21-1
94421-19C01-19A
Panel, Cow Center (red)
21-2
94421-19C01-33J
Panel, Center (black)
22-1
94471-19C00-19A
Cover, Cow Under Rh (red)
22-2
94471-19C00-33J
Cover, Under Rh (black)
23-1
94481-19C00-19A
Cover, Cow Under Lh (red)
23-2
94481-19C00-33J
Cover, Under Lh (black)
24
94475-19C01
Крышка
25
94915-44E00
Подушка
26
94610-19C60
Screen, Window
27
94631-18D01
.molding (->94631-18d01l:800->600)
28
68319-33E11
Наклейка предупреждения
29-1
68922-14F00
Label, Screen
29-2
68922-14F30
Label, Screen (french)
30
68332-19C12
Label, Tire Air
