Frame cover (model x) для мотоциклов Suzuki (Америка) GSX-R750 (1996)

Москва и регионы России

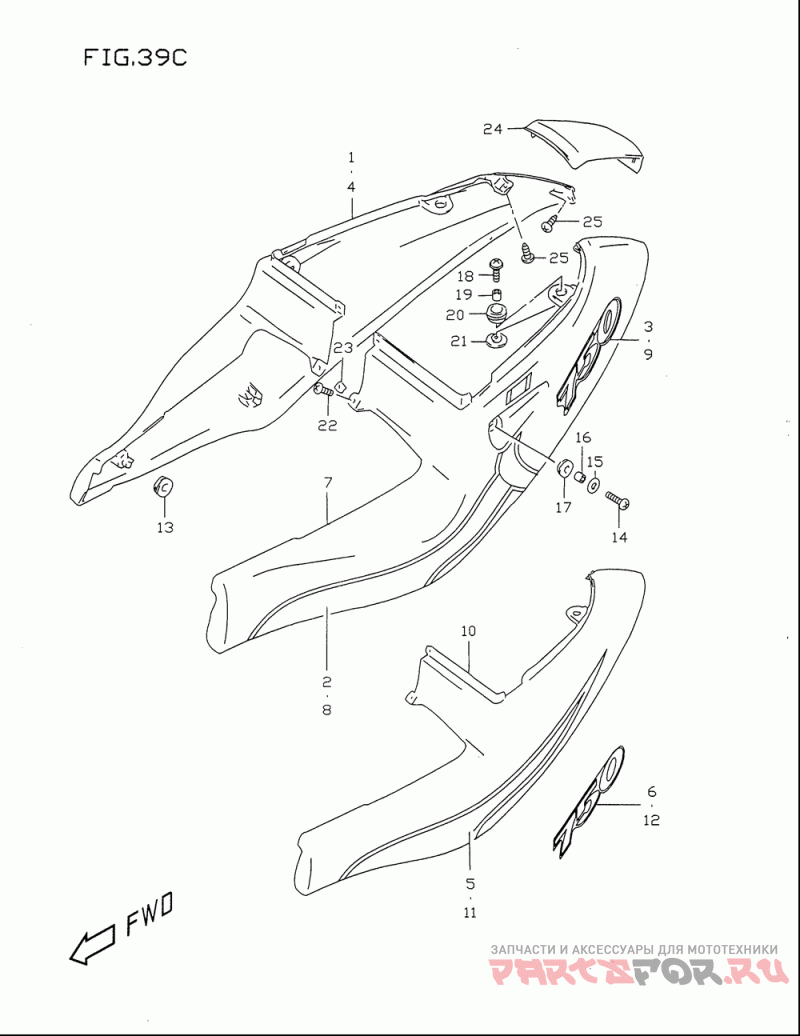

Frame cover (model x)

Suzuki (Америка) GSX-R750

Frame cover (model x)

#

oem код

название

цена

1

47110-33E80-0JW

Cover, Frame Rh (white)

Cover, Frame Rh (white)

2

68135-33E60-D4Z

.tape, Cover Rh

.tape, Cover Rh

3

68131-33E50-K8S

.emblem, 750

.emblem, 750

4

47110-33E90-Y7L

Cover, Frame Rh (black)

Cover, Frame Rh (black)

5

68135-33E70-M5F

.tape, Frame Cover Rh

.tape, Frame Cover Rh

6

68131-33E60-M5G

.emblem, 750

.emblem, 750

7

47210-33E80-0JW

Cover, Frame Lh (white)

Cover, Frame Lh (white)

8

68145-33E60-D4Z

.tape, Cover Lh

.tape, Cover Lh

10

47210-33E90-Y7L

Cover, Frame Lh (black)

Cover, Frame Lh (black)

11

68145-33E70-M5F

.tape, Frame Cover Lh

.tape, Frame Cover Lh

13

Cushion, Brace

Cushion, Brace

14

Screw, Side

Screw, Side

15

Шайба

Шайба

16

Spacer (6.5x9x6.7)

Spacer (6.5x9x6.7)

17

Подушка

Подушка

18

Винт

Винт

19

Проставка

Проставка

20

Cushion, Upper

Cushion, Upper

21

Cushion, Lower

Cushion, Lower

22

Винт

Винт

23

Гайка

Гайка

24-1

47311-33E00-0JW

Cover, Frame Center (white)

Cover, Frame Center (white)

24-2

47311-33E00-Y7L

Cover, Frame Center (black)

Cover, Frame Center (black)

25

Винт

Винт
