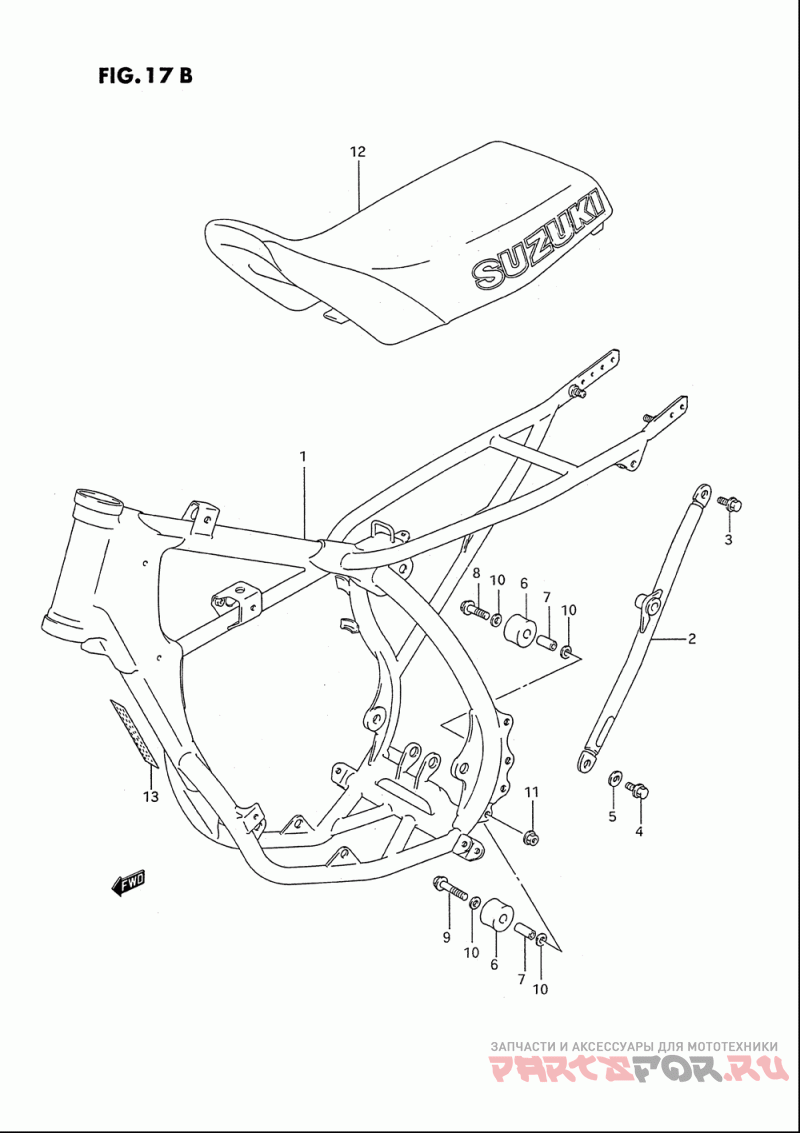

Frame - seat (model p/r/s)
Suzuki (Америка) RM80
| # | oem код | название | цена |
|---|---|---|---|
1 | 41100-03B10-24K Frame (charcoal) | Frame (charcoal) | |
2 | 41670-02B30-24K Tube, Frame Side Lh (charcoal) | Tube, Frame Side Lh (charcoal) | |
3 | 09100-08274 Bolt, Upper | Bolt, Upper | |
4 | 09100-08284 Bolt, Lower | Bolt, Lower | |
5 | 09160-08120 Washer (8.5x18x2.0) | Washer (8.5x18x2.0) | |
6 | 43911-35B00 Roller, Chain Control | Roller, Chain Control | |
7 | 09180-08156 Проставка | Проставка | |
8 | 09103-08083 Bolt (8x41) | Bolt (8x41) | |
9 | 09103-08339 Bolt, 8x55 | Bolt, 8x55 | |
10 | 09181-08167 Шайба | Шайба | |
11 | 08319-31087 Гайка | Гайка | |
12 | 45100-03B00-A5K Seat Set | Seat Set | |
13 | 68372-02B31 Plate, Warning | Plate, Warning |
