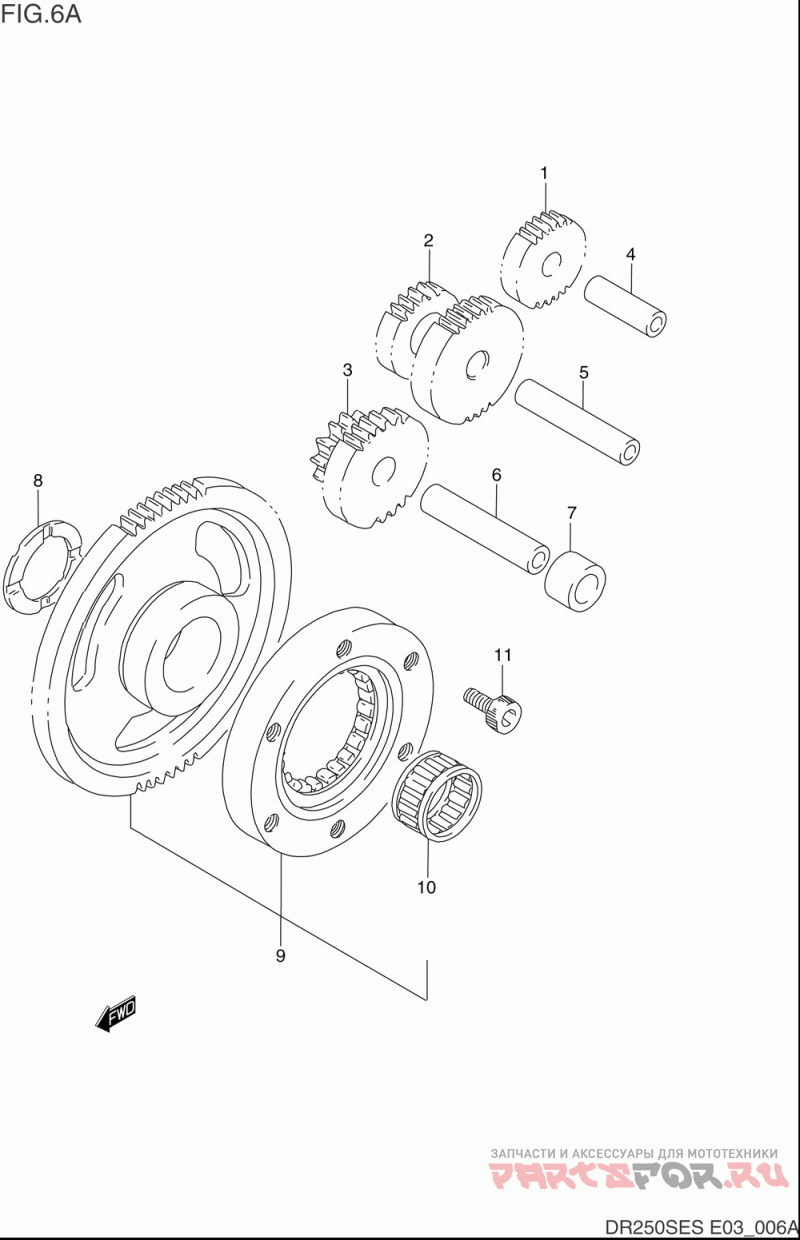

Starter clutch (model p/r/s)
Suzuki (Америка) DR250SE
| # | oem код | название | цена |
|---|---|---|---|
1 | 12611-15D01 Поршень комплект (увел1,0) | Поршень комплект (увел1,0) | |
2 | 12612-15D00 Gear, Starter Idle No.2 | Gear, Starter Idle No.2 | |
3 | 12613-15D00 Gear, Starter Idle No.3 | Gear, Starter Idle No.3 | |
4 | 09206-10012 Pin (10x32) | Pin (10x32) | |
5 | 09206-10011 Pin (10x55.5) | Pin (10x55.5) | |
6 | 09206-12003 Pin (12x55.5) | Pin (12x55.5) | |
7 | 09180-12139 Проставка | Проставка | |
8 | 09160-27005 Washer (27x40x2.5) | Washer (27x40x2.5) | |
9 | 12600-15810 Clutch Set, Starter | Clutch Set, Starter | |
10 | 09263-27009 .bearing (27x32x18) | .bearing (27x32x18) | |
11-1 | 07130-0816A Болт | Болт |
