Головка цилиндра для мотоциклов Suzuki (Америка) GSX1100F (1993)

Москва и регионы России

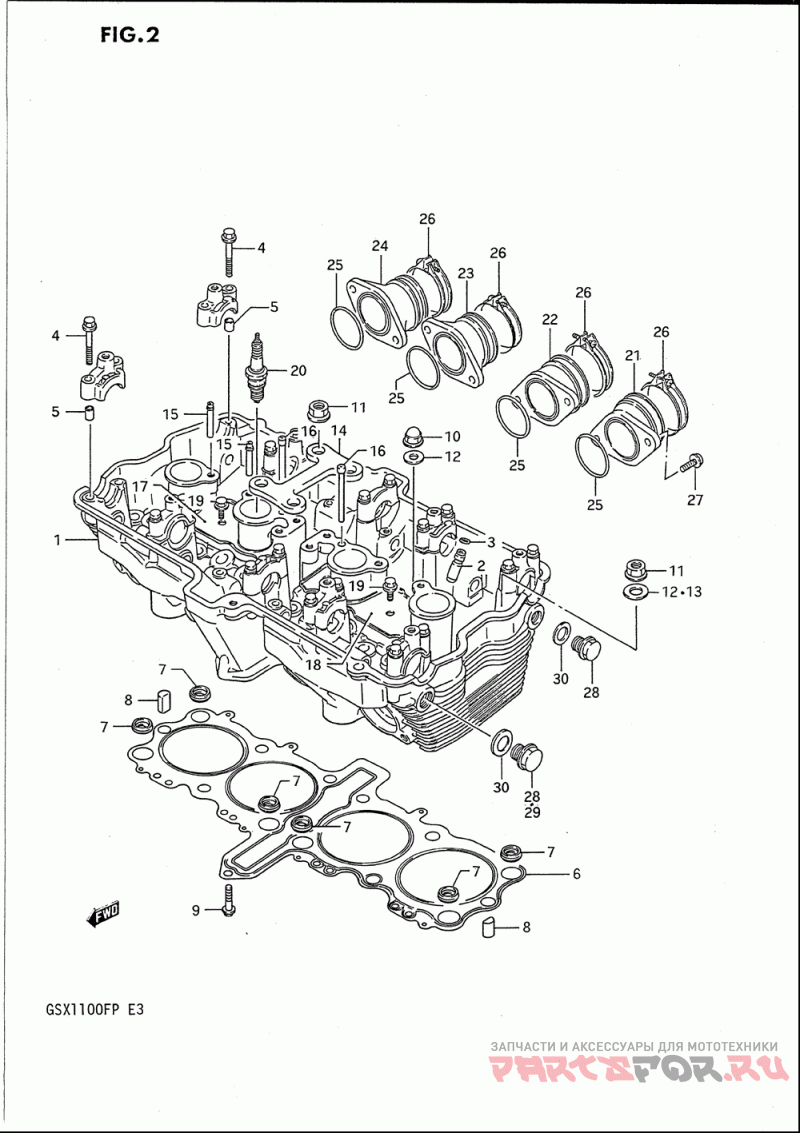

Головка цилиндра

Suzuki (Америка) GSX1100F

Головка цилиндра

#

oem код

название

цена

1-1

Поршень комплект (увел1,0)

Поршень комплект (увел1,0)

1-3

(model Jcalifornia Only)

(model Jcalifornia Only)

2

Guide, Valve (os:0.3)

Guide, Valve (os:0.3)

3

.snap Ring

.snap Ring

4

.bolt (6x39)

.bolt (6x39)

5

Штифт

Штифт

6-1

Прокладка цилиндра

Прокладка цилиндра

7

Кольцо

Кольцо

8

Штифт

Штифт

9-1

Bolt (model J/k/lmodel M ~f.no.100613)

Bolt (model J/k/lmodel M ~f.no.100613)

9-2

Bolt (model M F.no.100614~model N/p)

Bolt (model M F.no.100614~model N/p)

10-1

Nut (model Jmodel K/l/m/n/p)

Nut (model Jmodel K/l/m/n/p)

11-1

Nut, Wheel Rim (model Jmodel K/l/m/n/p)

Nut, Wheel Rim (model Jmodel K/l/m/n/p)

12-1

.gasket, Crankcase Bolt (model Jmodel K/l/m/n/p)

.gasket, Crankcase Bolt (model Jmodel K/l/m/n/p)

13

Washer (10.5x22x2.3)

Washer (10.5x22x2.3)

14

Plate, Head Reinforcement

Plate, Head Reinforcement

15

Pipe, Oil No.1, 2

Pipe, Oil No.1, 2

16

Pipe, Oil No.3

Pipe, Oil No.3

17

Plate, Oil Pipe Rh

Plate, Oil Pipe Rh

18

Plate, Oil Pipe Lh

Plate, Oil Pipe Lh

19

Болт

Болт

20-1

Spark Plug (ngk, Jr9b)

Spark Plug (ngk, Jr9b)

20-2

Spark Plug (ngk, Jr10b)

Spark Plug (ngk, Jr10b)

21-1

Поршень комплект (увел1,0)

Поршень комплект (увел1,0)

22-1

Pipe, Intake Ml

Pipe, Intake Ml

23-1

Pipe, Intake Mr

Pipe, Intake Mr

24-1

Pipe, Intake Rh

Pipe, Intake Rh

25

.o Ring, Intake Pipe

.o Ring, Intake Pipe

26

.clamp, Outlet

.clamp, Outlet

27

Винт

Винт

28-1

Plug, Cylinder Head Ex (california Only)

Plug, Cylinder Head Ex (california Only)

29

Plug, Cylinder Head Ex

Plug, Cylinder Head Ex

30

.gasket (14.1x18x1.5)

.gasket (14.1x18x1.5)
