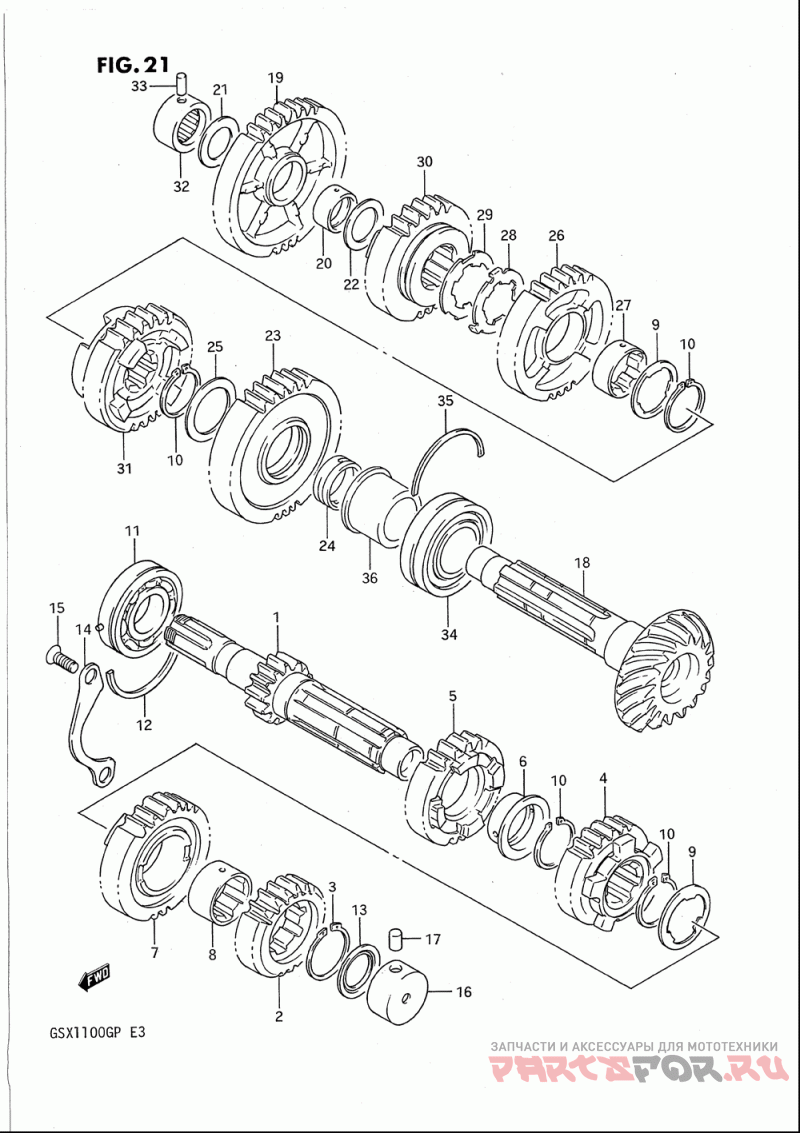

Трансмиссия для мотоциклов Suzuki (Америка) GSX1100G (1992)

Москва и регионы России

Трансмиссия

Suzuki (Америка) GSX1100G

Трансмиссия

#

oem код

название

цена

1

Shaft, Counter

Shaft, Counter

2

Gear, 2nd Drive (nt:21)

Gear, 2nd Drive (nt:21)

3

Пружинное стопорное кольцо

Пружинное стопорное кольцо

4

Gear, 3th Drive (nt:22)

Gear, 3th Drive (nt:22)

5

Gear, 4th Drive (nt:22)

Gear, 4th Drive (nt:22)

6

Bush, 3rd Drive Gear

Bush, 3rd Drive Gear

7

Gear, 5th Drive (nt:27)

Gear, 5th Drive (nt:27)

8

Втулка

Втулка

9

Washer (28.1x38x1.0)

Washer (28.1x38x1.0)

10

Circlip Idle Drive Gear

Circlip Idle Drive Gear

11

Bearing, Lh (25x62x17)

Bearing, Lh (25x62x17)

12

C Ring, Cntr Shaft Brg Rh

C Ring, Cntr Shaft Brg Rh

13

Сальник

Сальник

14

Retainer, Cntr Shaft

Retainer, Cntr Shaft

15

Винт

Винт

16

Bearing, Cntr Shaft, Lh

Bearing, Cntr Shaft, Lh

17

Штифт

Штифт

18-1

Driveshaft (nt:18)

Driveshaft (nt:18)

19

Gear, 1st Driven (nt:38)

Gear, 1st Driven (nt:38)

20

Bush, 1st Driven

Bush, 1st Driven

21

Шайба

Шайба

22

Washer, Lh

Washer, Lh

23

Gear, 2nd Driven (nt:38)

Gear, 2nd Driven (nt:38)

24

Bush, 2nd Driven

Bush, 2nd Driven

25

.washer, Rr Final Dr Gr

.washer, Rr Final Dr Gr

26

Gear, 3rd Driven (nt:31)

Gear, 3rd Driven (nt:31)

27

Bush, 2nd Driven Gear

Bush, 2nd Driven Gear

28

Шайба-замок

Шайба-замок

29

Lock Washer, Lh

Lock Washer, Lh

30

Gear, 4th Driven (nt:26)

Gear, 4th Driven (nt:26)

31

Gear, 5th Driven (nt:26)

Gear, 5th Driven (nt:26)

32

Bearing, Drive Shaft Rh

Bearing, Drive Shaft Rh

33

Pin, Drive Shaft Brg Rh

Pin, Drive Shaft Brg Rh

34

Поршень комплект (увел1,0)

Поршень комплект (увел1,0)

35

C Ring, Drive Shaft Brg, L

C Ring, Drive Shaft Brg, L

36

Spacer, Drive Shaft Bearing

Spacer, Drive Shaft Bearing
