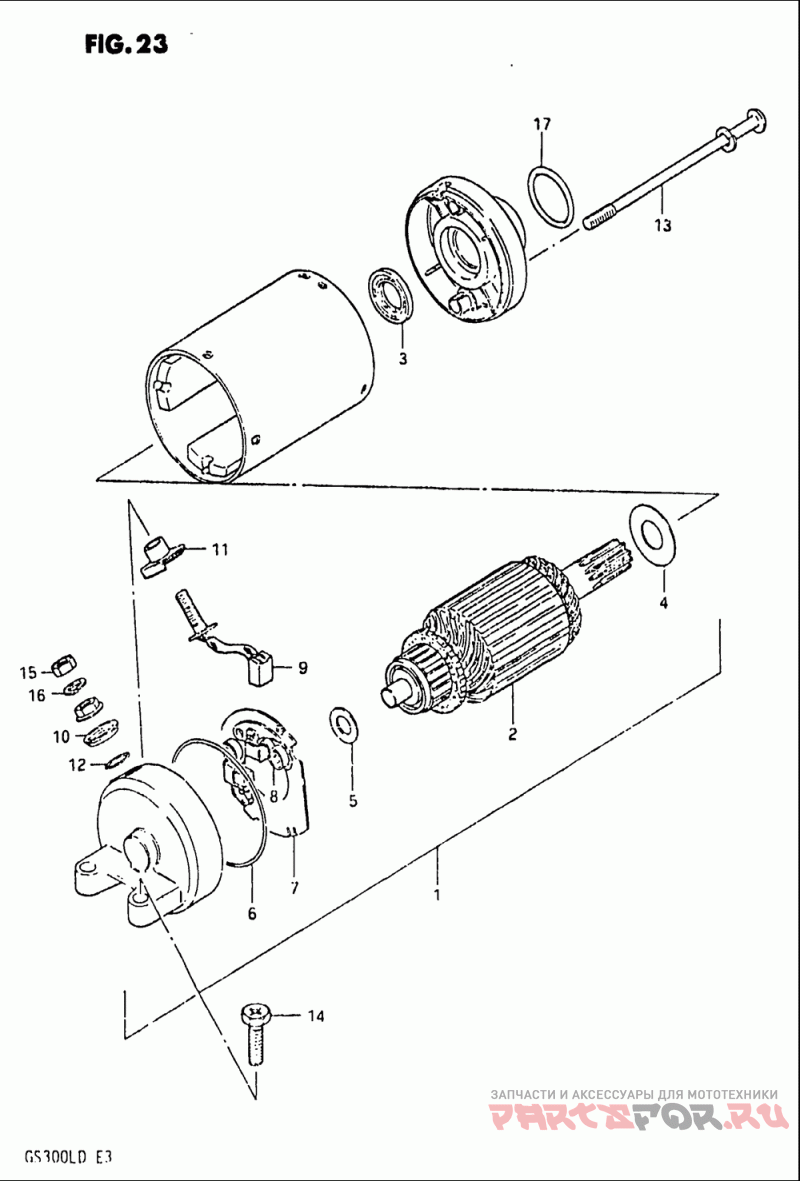

Стартер электрический
Suzuki (Америка) GS300L 1982-1983
| # | oem код | название | цена |
|---|---|---|---|
1 | 31100-30B00-H17 Motor Assy, Star | Motor Assy, Star | |
2 | 31311-49211-H17 .armature | .armature | |
3 | 31153-43400 .oil Seal | .oil Seal | |
4 | 31361-10200 .ring | .ring | |
5 | 31170-43400 .shim Set | .shim Set | |
6 | 31264-44110 Кольцо | Кольцо | |
7 | 31132-27A01 .holding Assy, Brush | .holding Assy, Brush | |
8 | 31135-65010 ..spring | ..spring | |
9 | 31130-38300 .brush (+) | .brush (+) | |
10 | 31172-44110 .bushing (a) | .bushing (a) | |
11 | 31171-44110 .bushing (b) | .bushing (b) | |
12 | 31143-44110 Кольцо | Кольцо | |
13 | 31281-87402 Болт | Болт | |
14 | 09103-06212 Болт (6x25) | Болт (6x25) | |
15 | 08310-00067 Гайка | Гайка | |
16 | 08321-01067 .lock Washer | .lock Washer | |
17 | 09280-24001 O-ring, Rear Axle | O-ring, Rear Axle |
