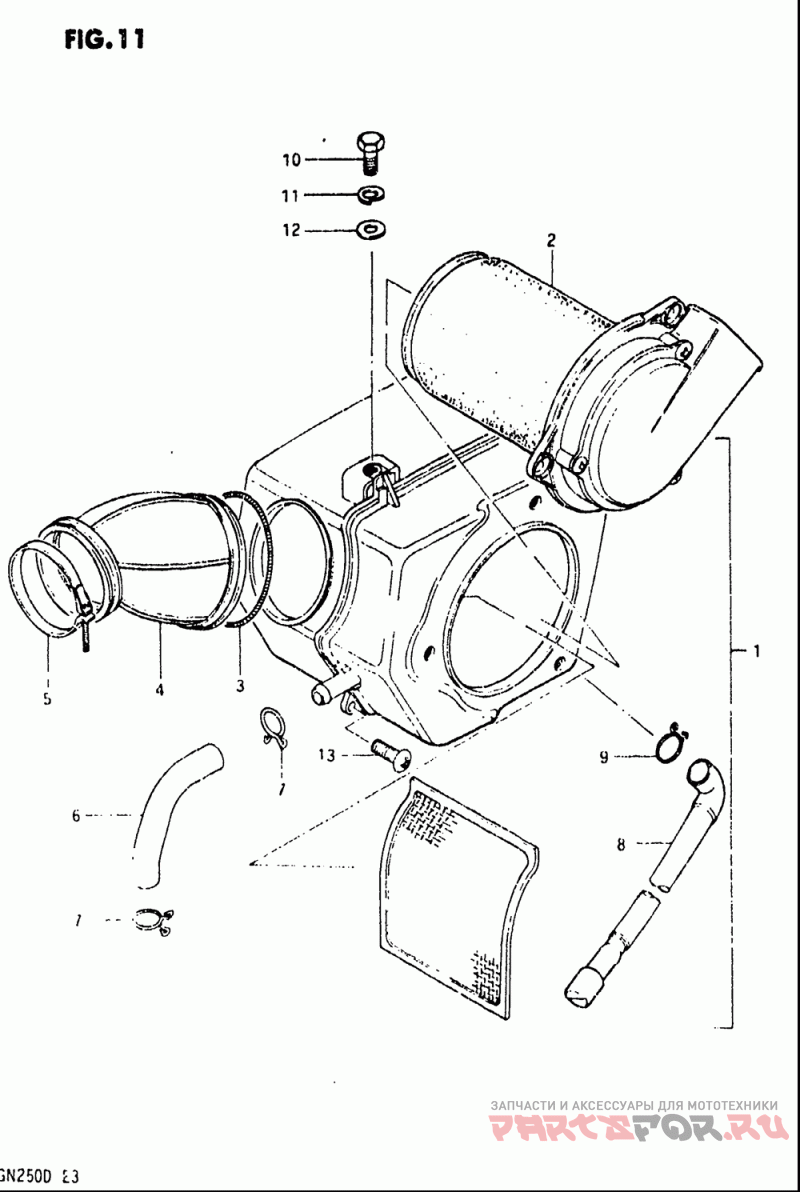

Воздухозаборник
Suzuki (Америка) GN250 1982-1983
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 13700-25D00 Cleaner Assy, A | Cleaner Assy, A | |
2 | 13780-38301 .filter | .filter | |
3 | 13826-38300 .clamp, Air Cleaner Side | .clamp, Air Cleaner Side | |
4 | 13881-38300 .hose, Outlet | .hose, Outlet | |
5 | 09402-56901 Зажим | Зажим | |
6 | 13853-38300 .hose, Breather | .hose, Breather | |
7 | 09401-14401 Зажим | Зажим | |
8 | 13870-21458 .tube, Drain | .tube, Drain | |
9 | 09401-14301 .clip | .clip | |
10 | 01500-06167 Bolt, Fuel Cooler | Bolt, Fuel Cooler | |
11 | 08321-01067 .lock Washer | .lock Washer | |
12 | 09160-06084 Шайба (6.5x18x1.6) | Шайба (6.5x18x1.6) | |
13 | 02142-06167 Винт | Винт |
