Передняя вилка для мотоциклов KTM 2021 KTM 85 SX Chassis (2021)

Москва и регионы России

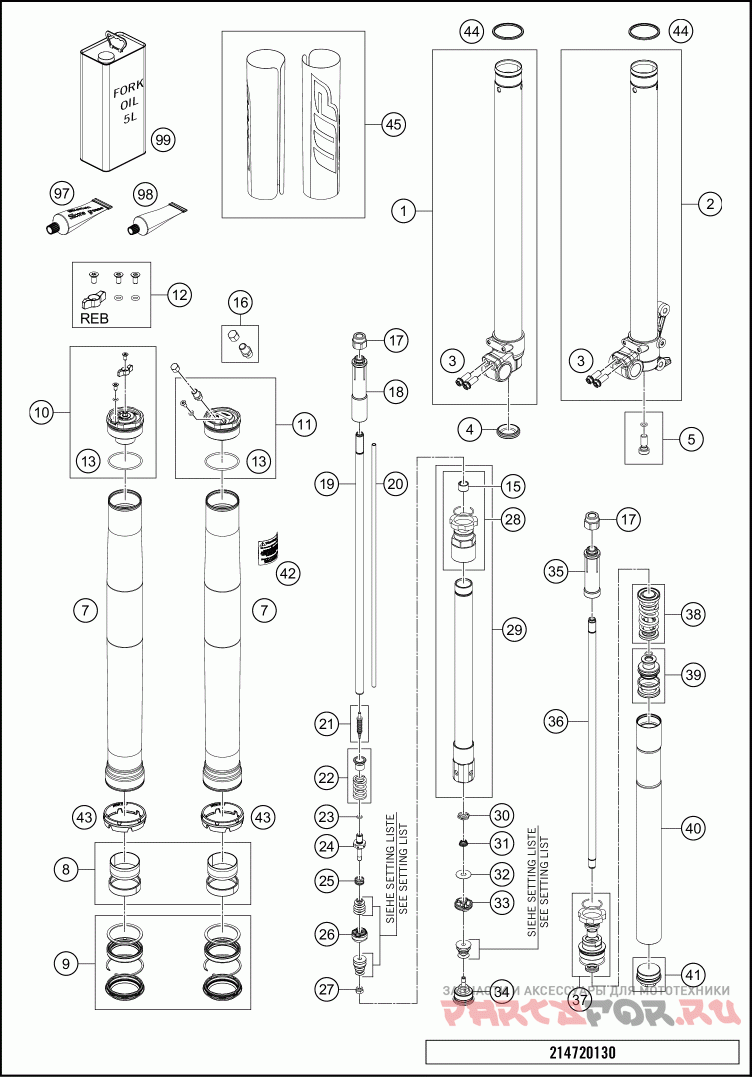

Передняя вилка

KTM 2021 KTM 85 SX Chassis

Передняя вилка

#

oem код

название

цена

1

Axle clamp right + tube 85SX cpl.

Axle clamp right + tube 85SX cpl.

10

Screw cap M46x1,5 cpl.

Screw cap M46x1,5 cpl.

11

screw cap M46x1,5 Luft cpl.

screw cap M46x1,5 Luft cpl.

12

Adjuster kit screw cap

Adjuster kit screw cap

13

O-ring 41x2 NBR70 siliconized yellow

O-ring 41x2 NBR70 siliconized yellow

15

Guide bushing 12x14x10

Guide bushing 12x14x10

16

VALVE M8X1 INCL. SCREW CAP

VALVE M8X1 INCL. SCREW CAP

17

Lock nut M12x1 h20 WAF22

Lock nut M12x1 h20 WAF22

18

Stop 12,2x25x115

Stop 12,2x25x115

19

Piston rod 12x477,5

Piston rod 12x477,5

2

Axle clamp left + tube cpl.

Axle clamp left + tube cpl.

20

adjustment tube 6x445,1

adjustment tube 6x445,1

21

Needle 4,5x43,6 cpl.

Needle 4,5x43,6 cpl.

22

Spring (13,9) 37-32 rebound cpl.

Spring (13,9) 37-32 rebound cpl.

23

O-ring 6x1,2 NBR70

O-ring 6x1,2 NBR70

24

Tap 6x46 rebound

Tap 6x46 rebound

25

Spring (11,7) 1,5-8 valve

Spring (11,7) 1,5-8 valve

26

Midvalve piston assembly d23

Midvalve piston assembly d23

27

Nut M6x0,5 h6,5 WAF10 rebound

Nut M6x0,5 h6,5 WAF10 rebound

28

Screwsleeve M27x0,8 cpl.

Screwsleeve M27x0,8 cpl.

29

Cartridge tube cpl.

Cartridge tube cpl.

3

HH collar screw M8x20

HH collar screw M8x20

30

Nut valve M6x0,5 h6,5 WAF17

Nut valve M6x0,5 h6,5 WAF17

31

Spring (8,5) l6,5 valve

Spring (8,5) l6,5 valve

32

Shim 8x24x0,40

Shim 8x24x0,40

33

Piston 6x27,3x9 compression cpl.

Piston 6x27,3x9 compression cpl.

34

Tap compression cpl.

Tap compression cpl.

35

Stop 12,2x25x78,5

Stop 12,2x25x78,5

36

Piston rod 12x470

Piston rod 12x470

37

Screw sleeve M35,5x0,8

Screw sleeve M35,5x0,8

38

Spring (22) 60-30 rebound cpl.

Spring (22) 60-30 rebound cpl.

39

Piston 3x34x31,5 mainpiston Freude cpl.

Piston 3x34x31,5 mainpiston Freude cpl.

4

Rubber cap 35x10 NBR80

Rubber cap 35x10 NBR80

40

Tube incl. mounting 410mm air

Tube incl. mounting 410mm air

41

Adapter M10xM35,5x0,8x25 cpl.

Adapter M10xM35,5x0,8x25 cpl.

42

Sticker warning 40x40

Sticker warning 40x40

43

Fork protection ring 55,1mm

Fork protection ring 55,1mm

44

Stroke indicator d43 red

Stroke indicator d43 red

45

Sticker XAXT AER OC 161x214

Sticker XAXT AER OC 161x214

5

S218700000S0000

HS screw M10x23 cpl.

HS screw M10x23 cpl.

7

Fork outer tube 44.13x510 dt49 db53

Fork outer tube 44.13x510 dt49 db53

8

GUIDE BUSHING SET

GUIDE BUSHING SET

9

Комплет прокладок

Комплет прокладок

97

Fuchs grease IPR (250g)

Fuchs grease IPR (250g)

98

spezial grease AER Fork 50g

spezial grease AER Fork 50g

99

Fork Fluid Viscosity 4.0 5Lx4

Fork Fluid Viscosity 4.0 5Lx4
