Коленвал и поршень для мотоциклов KTM 2021 KTM 350 EXC-F Engine (2021)

Москва и регионы России

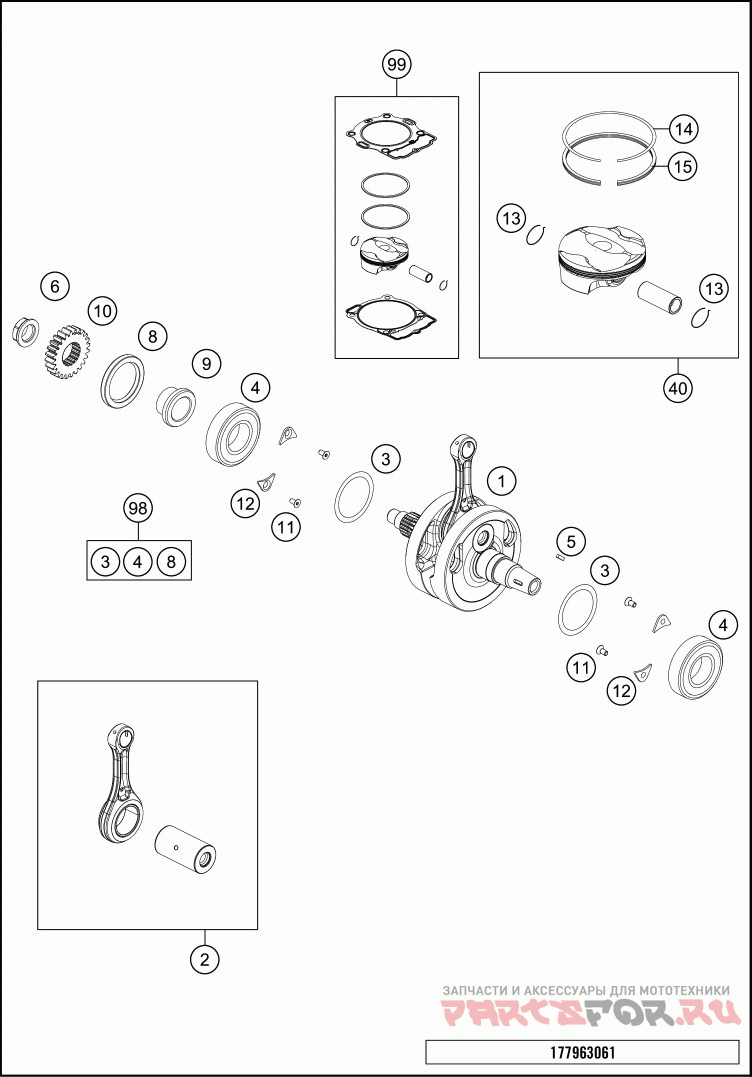

Коленвал и поршень

KTM 2021 KTM 350 EXC-F Engine

Коленвал и поршень

#

oem код

название

цена

10

gear primary drive

gear primary drive

11

INT. TORX FLAT HEAD M5X12 T25

INT. TORX FLAT HEAD M5X12 T25

12

RETAINING PLATE F. CS BEARING

RETAINING PLATE F. CS BEARING

13

CIRCLIP PISTON PIN

CIRCLIP PISTON PIN

14

COMPRESSIONRING 350

COMPRESSIONRING 350

15

OIL SCRAPER RING

OIL SCRAPER RING

3

THRUST WASHER 988ST 32X0,15

THRUST WASHER 988ST 32X0,15

3

THRUST WASHER 988ST 32X0,1

THRUST WASHER 988ST 32X0,1

3

THRUST WASHER 988ST 32X0,30

THRUST WASHER 988ST 32X0,30

4

BEARING NJ 206 ECP/HN3C4HVA624

BEARING NJ 206 ECP/HN3C4HVA624

40

PISTON I CPL. 350

PISTON I CPL. 350

40

PISTON II CPL. 350

PISTON II CPL. 350

5

WOODRUFF KEY DIN6888-3X3,7

WOODRUFF KEY DIN6888-3X3,7

6

NUT PRIMARY WHEEL

NUT PRIMARY WHEEL

8

SHAFT SEAL RING A 40X55X6 V.

SHAFT SEAL RING A 40X55X6 V.

9

SPACER BUSHING PRIMARY GEAR

SPACER BUSHING PRIMARY GEAR

98

CRANKSHAFT REP. KIT

CRANKSHAFT REP. KIT

99

Piston kit I

Piston kit I

99

Piston kit II

Piston kit II
