Рама для мотоциклов KTM 2020 790 DUKE BLACK CHASSIS (2020)

Москва и регионы России

Рама

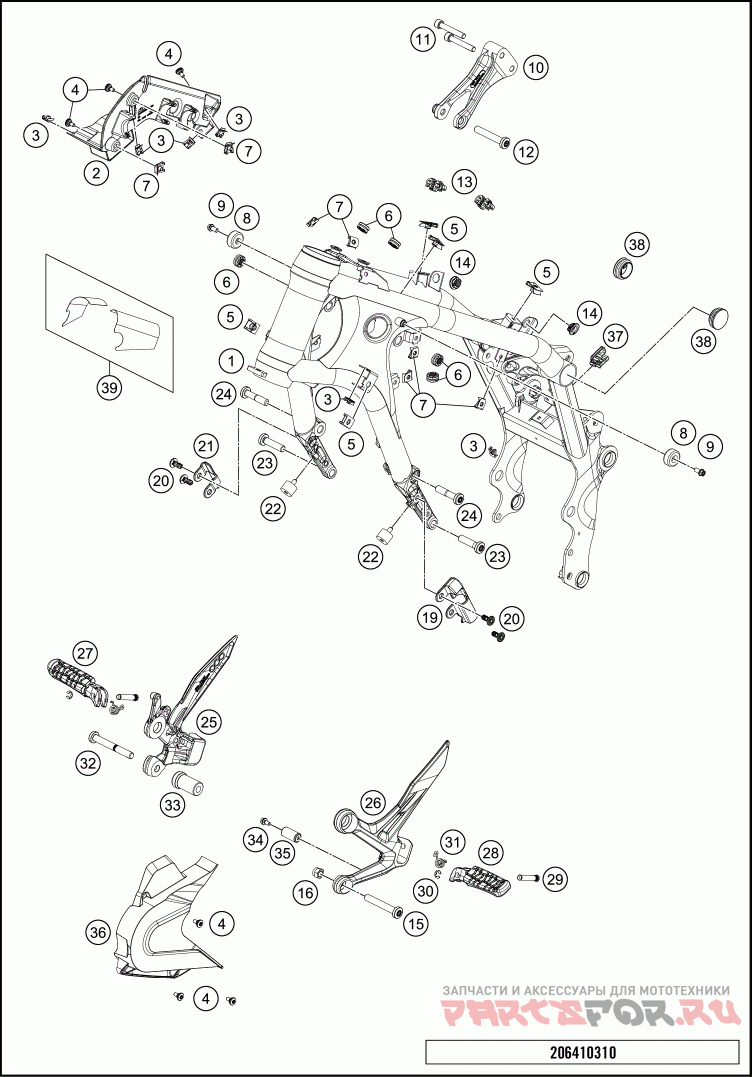

KTM 2020 790 DUKE BLACK CHASSIS

Рама

#

oem код

название

цена

1

Frame 641 RA black

Frame 641 RA black

10

Engine strut black

Engine strut black

11

CYL. SCREW DIN14579 M8X50 SS

CYL. SCREW DIN14579 M8X50 SS

12

AH-COLLAR SCREW M10X60 ISA45

AH-COLLAR SCREW M10X60 ISA45

13

Bracket ABS line dia7.5

Bracket ABS line dia7.5

14

quick release rubber grommet

quick release rubber grommet

15

ISA screw, M10x65 ISA45

ISA screw, M10x65 ISA45

16

SELF LOCKING NUT M10 CU WS=14

SELF LOCKING NUT M10 CU WS=14

19

Cable Guidance left

Cable Guidance left

2

cover right

cover right

20

Fastening plugs M8

Fastening plugs M8

21

Cable Guidance right

Cable Guidance right

22

silentbloc 20x15-M6x10-(1)

silentbloc 20x15-M6x10-(1)

23

ISA collar screw M10x40 ISA45

ISA collar screw M10x40 ISA45

24

ISA screw M10x45 ISA45

ISA screw M10x45 ISA45

25

Front footpeg bracket, right

Front footpeg bracket, right

26

Front footpeg bracket left

Front footpeg bracket left

27

FOOTREST FRONT R/S CPL. 05

FOOTREST FRONT R/S CPL. 05

28

FOOTREST FRONT L/S CPL. 05

FOOTREST FRONT L/S CPL. 05

29

footrest bolt, rear

footrest bolt, rear

3

clip nut M5

clip nut M5

30

retaining washer DIN 6799 - 6

retaining washer DIN 6799 - 6

31

RETURN SPRING FOOTREST

RETURN SPRING FOOTREST

32

ISA collar screw M10x80 ISA45

ISA collar screw M10x80 ISA45

33

Distance piece

Distance piece

34

HH collar screw M5x10 TX30

HH collar screw M5x10 TX30

35

Ролик

Ролик

36

Sprocket Cover

Sprocket Cover

37

Cable holder, attachable

Cable holder, attachable

38

Frame locking cap

Frame locking cap

39

Set protection sticker frame

Set protection sticker frame

4

special screw M5x12

special screw M5x12

5

clip nut M6

clip nut M6

6

DAMP. COMPONENT ABS MODUL

DAMP. COMPONENT ABS MODUL

7

RANGE CHANGE METAL NUT M5

RANGE CHANGE METAL NUT M5

9

Hex collar screw M6x12 ISA30 self-lockin

Hex collar screw M6x12 ISA30 self-lockin
