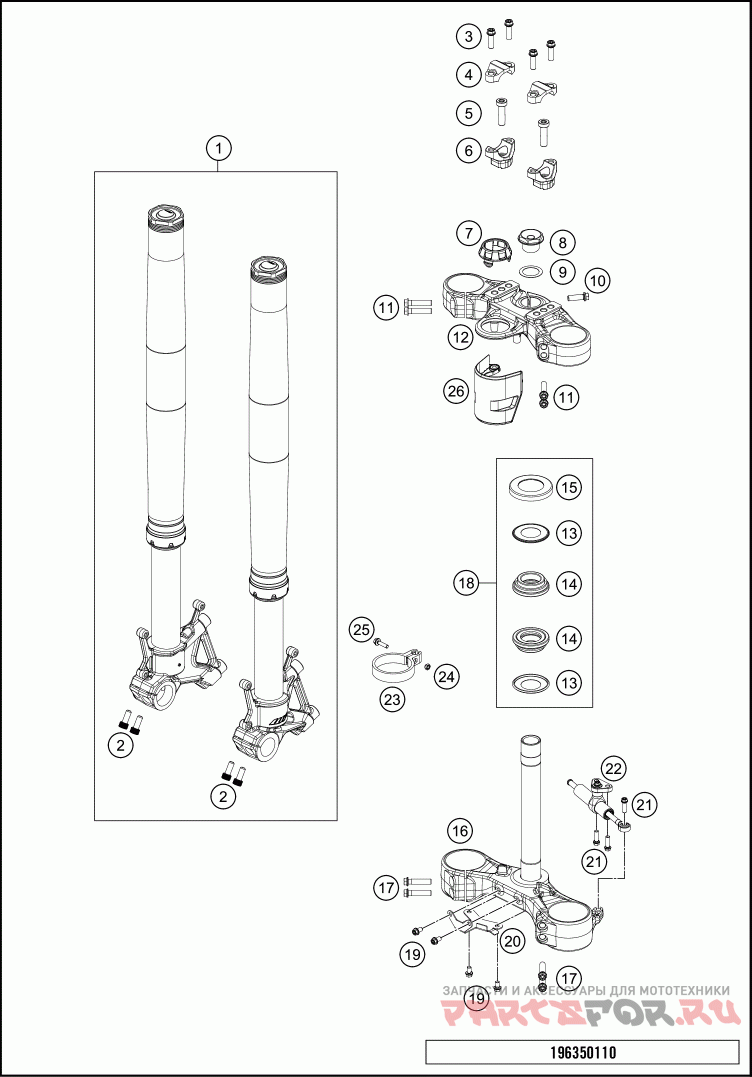

Передняя вилка

KTM 2020 790 ADVENTURE ORANGE CHASSIS

KTM
#oem кодцена
1
05586S2901
Fork KTM 790 Adventure S 19
10
0015080256S
HH COLLAR SCREW M8X25 WS=10
11
0025080306
HH collar screw M8x30
12
6350103403030S
Top triple clamp
13
69001084100
Stearing head gasket
14
69001181000
STEERINGHEAD KPL.17
15
69001086100
PROT. RING STEER. HEAD BEARING
16
6350103203030S
Bottom triple clamp cmpl.
17
0025080356
HH collar screw M8x35 TX40
18
69001181010
Stearing head rep. Kit
19
0025060106
HH collar screw M6x10 TX30
2
0025080206
HH collar screw M8x20
20
63501072000
Retaining bracket brake line
21
0025080256S
HH COLLAR SCREW M8X25 TX40
22
16181S55E
Steering damper790 Adventure cpl.
23
54601099000
SPEEDOMETER CABLE GUIDE MARZO.
24
0985050003
SELF LOCKING NUT DIN0985-M 5
25
0025050206
HH collar screw M5x20 TX30
26
63511066010
Ignition lock cover
3
0025080256
HH collar screw M8x25
4
7720103800030
HANDLEBAR CLAMP 28MM
5
0032100356S
AH-COLLAR SCREW M10X35 ISA45
6
5940103903230
HANDLEBAR SUPPORT D=28 H=32 BL
7
63501045010
Ignition lock cover
8
6900103600033
Steering head screw
9
0988253505
thrust wash DIN0988-25x35x0,5
