Соединение рычагов для мотоциклов KTM 2020 690 SMC R CHASSIS (2020)

Москва и регионы России

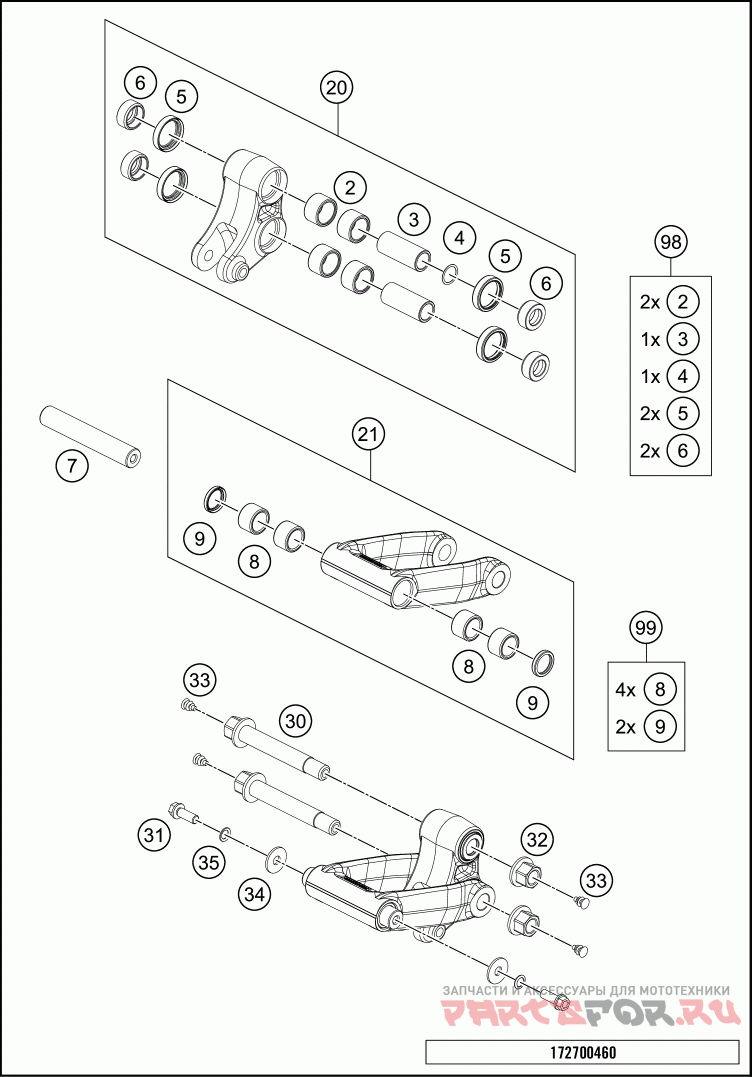

Соединение рычагов

KTM 2020 690 SMC R CHASSIS

Соединение рычагов

#

oem код

название

цена

2

NEEDLE BUSH HK 2016

NEEDLE BUSH HK 2016

20

TRIANGLE LEVER CPL.

TRIANGLE LEVER CPL.

21

PULL ROD CPL.

PULL ROD CPL.

3

BUSHING SLEEVE 15 X 20 X 48

BUSHING SLEEVE 15 X 20 X 48

30

BOLT CPL. M14X1,5

BOLT CPL. M14X1,5

31

HH collar screw M8x16 TX40 SL

HH collar screw M8x16 TX40 SL

32

SELF LOCKING NUT M14X1,5 WS=19

SELF LOCKING NUT M14X1,5 WS=19

33

PLASTIC CAP SFL10

PLASTIC CAP SFL10

34

WASHER DIN9021-A 8,4

WASHER DIN9021-A 8,4

35

Стопорная шайба 8 мм

Стопорная шайба 8 мм

4

STEEL WASHER 15,2X19X0,1

STEEL WASHER 15,2X19X0,1

4

STEEL WASHER 15,2X19X0,2

STEEL WASHER 15,2X19X0,2

4

STEEL WASHER 15,2X19X0,3

STEEL WASHER 15,2X19X0,3

5

radial shaft seal 25x32x7

radial shaft seal 25x32x7

6

BUCKET FOR SHAFT SEAL RING

BUCKET FOR SHAFT SEAL RING

7

Pin for pull rod bearing

Pin for pull rod bearing

8

NEEDLE BEARING HK 1816

NEEDLE BEARING HK 1816

9

SHAFT SEAL RING 18X24X4

SHAFT SEAL RING 18X24X4

98

TRIANGLE LEVER REP. KIT REAR

TRIANGLE LEVER REP. KIT REAR

99

PULL ROD REP . KIT 690 END/SMC

PULL ROD REP . KIT 690 END/SMC
