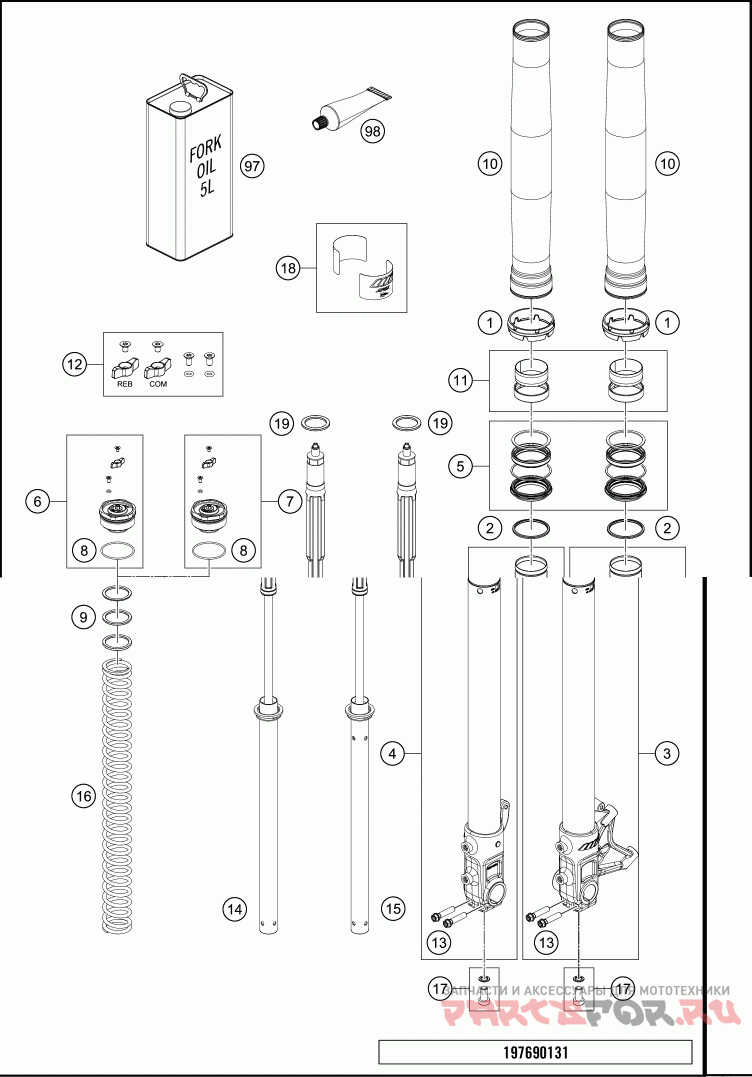

Передняя вилка

KTM 2020 690 SMC R CHASSIS

KTM
#oem кодцена
1
48601948
Fork protection ring 60,1mm
10
48601981
fork outer tube 54x530 dt54 db60
11
R14047T
Guide bushing set fork 48mm
12
RP10021
Adjuster kit screw cap
13
0025080356
HH collar screw M8x35 TX40
14
48601067S1
Cartridge right KTM 690 SM
15
48601067S2
Cartridge left KTM 690 SMC
16
91410043S
SPRING C=5,3 L=450 D=5,5
17
00501020S1
AH SCREW M10X20 SET
18
52000210SET
Sticker set APEX OC 90x40
19
48600113
Washer 32x42x2,5 plastic
2
48602007
Stroke indicator 48mm red
3
48601318S1
AXLE CLAMP L/S WITH TUBE CPL.
4
48601317S1
AXLE CLAMP R/S WITH TUBE CPL.
5
RP10012T
Sealkit 48mm SKF black
6
48602039S
Screw cap M51x1,5 rebound cpl.
7
48602040S
Screw cap M51x1,5 compression cpl.
8
48600048
O-ring 46x2 NBR70 siliconized yellow
9
48600457
Preload bush 35x43x3,5
9
48600458
Washer 35x43x1,5 plastic
9
48600456
Washer 35x43x2,5 plastic
97
48601166S1
FORK OIL SAE4 5L
98
T14034
Fuchs grease IPR (250g)
