Передняя вилка для мотоциклов KTM 2020 690 ENDURO R CHASSIS (2020)

Москва и регионы России

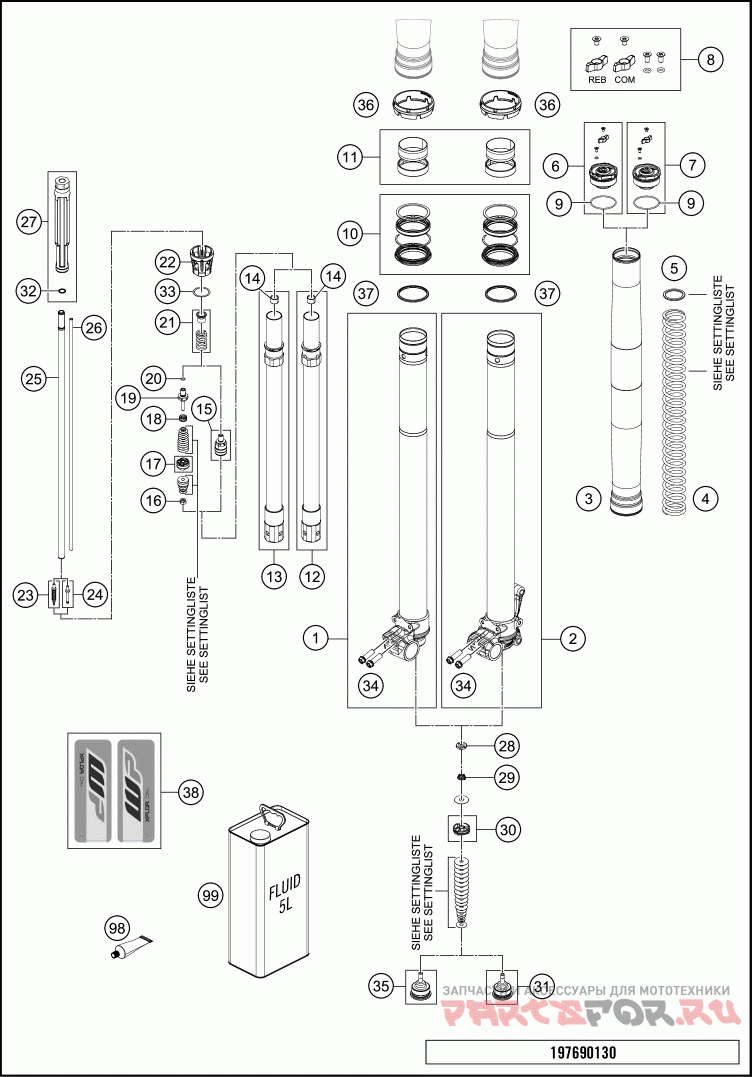

Передняя вилка

KTM 2020 690 ENDURO R CHASSIS

Передняя вилка

#

oem код

название

цена

1

Axle Clamp R/S + Tube D48mm 35mm

Axle Clamp R/S + Tube D48mm 35mm

10

Sealkit 48mm SKF black

Sealkit 48mm SKF black

11

Guide bushing set fork 48mm

Guide bushing set fork 48mm

12

Tube, including screw sleeve with hole

Tube, including screw sleeve with hole

13

Tube with screwsleeve

Tube with screwsleeve

14

Guide bushing 12x14x10

Guide bushing 12x14x10

15

Tap compression cpl.

Tap compression cpl.

16

Nut M6x0,5 h6,5 WAF10 rebound

Nut M6x0,5 h6,5 WAF10 rebound

17

Midvalve piston assembly d23

Midvalve piston assembly d23

18

Spring (11,4) 0,4-8 valve

Spring (11,4) 0,4-8 valve

19

Tap 6x46 rebound

Tap 6x46 rebound

2

Axle Clamp L/S + Tube D48mm 35mm

Axle Clamp L/S + Tube D48mm 35mm

20

O-ring 6x1,2 NBR70

O-ring 6x1,2 NBR70

21

Spring (13,9) 37-32 rebound cpl.

Spring (13,9) 37-32 rebound cpl.

22

Spring retainer 27,08x43x45

Spring retainer 27,08x43x45

23

Needle 4,5x43,6 cpl.

Needle 4,5x43,6 cpl.

24

Needle 4,5x38,2 cpl.

Needle 4,5x38,2 cpl.

25

Piston rod 12x518

Piston rod 12x518

26

Adjuster Tube L488.5

Adjuster Tube L488.5

27

hydrostop l205 d31,9 cpl.

hydrostop l205 d31,9 cpl.

28

Nut valve M6x0,5 h6,5 WAF17

Nut valve M6x0,5 h6,5 WAF17

29

Spring (8,5) l6,5 valve

Spring (8,5) l6,5 valve

3

Fork outer tube 49,13x577 dt54 db60 natu

Fork outer tube 49,13x577 dt54 db60 natu

30

Piston 6x27,3x9 compression cpl.

Piston 6x27,3x9 compression cpl.

31

Screw cap M29,3x1 OC split cpl.

Screw cap M29,3x1 OC split cpl.

32

O-ring 11x2,5 NBR70 PTFE yellow

O-ring 11x2,5 NBR70 PTFE yellow

33

Shim 27,5x33x0,3

Shim 27,5x33x0,3

34

HH collar screw M8x25

HH collar screw M8x25

35

Screw cap M29,3x1

Screw cap M29,3x1

36

Fork protection ring 60,1mm

Fork protection ring 60,1mm

37

Stroke indicator 48mm red

Stroke indicator 48mm red

38

sticker set

sticker set

4

Mainspring (43,2) 5,9-430 fork

Mainspring (43,2) 5,9-430 fork

5

Preload bush 35x43x3,5

Preload bush 35x43x3,5

5

Washer 35x43x1,5 plastic

Washer 35x43x1,5 plastic

5

Washer 35x43x2,5 plastic

Washer 35x43x2,5 plastic

6

Screw cap M51x1,5 rebound cpl.

Screw cap M51x1,5 rebound cpl.

7

Screw cap M51x1,5 compression cpl.

Screw cap M51x1,5 compression cpl.

8

Adjuster kit screw cap

Adjuster kit screw cap

9

O-ring 46x2 NBR70 siliconized yellow

O-ring 46x2 NBR70 siliconized yellow

98

Fuchs grease IPR (250g)

Fuchs grease IPR (250g)

99

FORK OIL SAE4 5L

FORK OIL SAE4 5L
