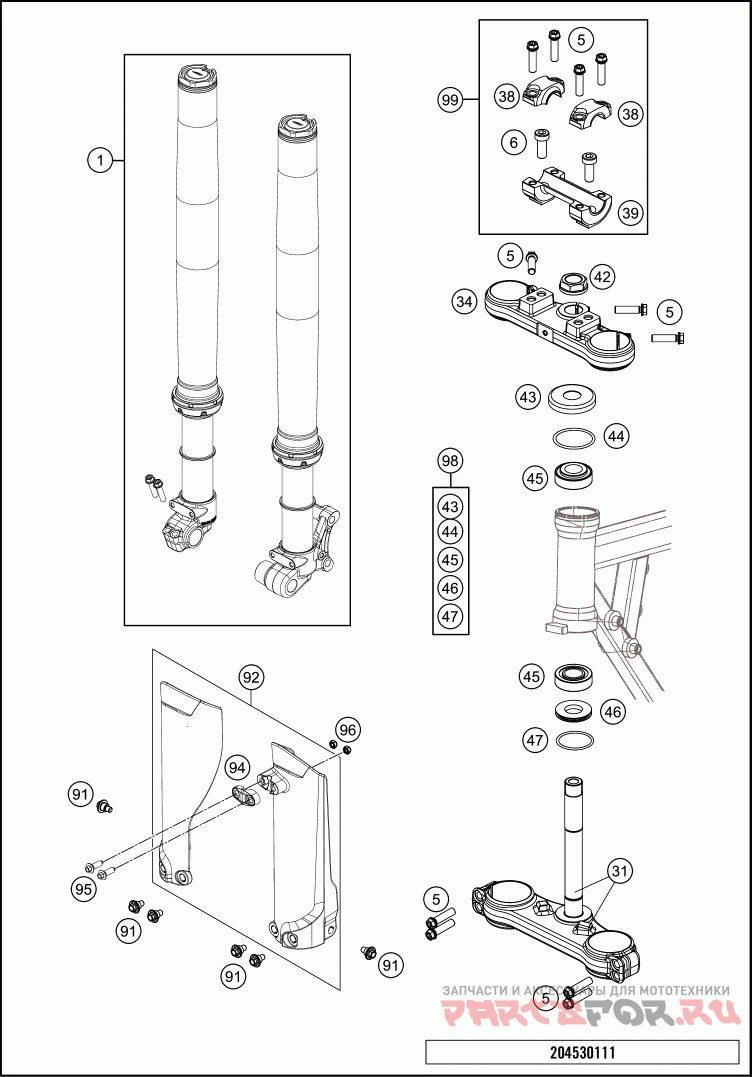

Передняя вилка

KTM 2020 50 SX MINI CHASSIS

KTM
#oem кодцена
1
07181T0101
Fork 50 SX/TC Mini 20
31
45201132022
BOT.FORK PLATE CPL.
34
45201034022
TOP TRIPLE CLAMP
38
50301038000
HANDLEBAR CLAMP D=22MM 2001
39
45201039000
HANDLEBAR SUPPORT 50SX D=22MM
42
59030029000
HH NUT M20X1,5 WS=27 RIGHT
43
49001086000
COVERING CAP
44
0770049025
O-RING 49,00X2,50 NBR
45
49001081000
TAPERED ROLLER BEARING 32004X
46
46001086000
PROTECTION RING 20,1X39X5
47
0770360030
O-RING 36,00X3,00 NBR
5
0025080306
HH collar screw M8x30
6
0032100256S
AH-COLLAR SCREW M10X25 ISA45
91
59001092050
SPECIAL SCREW M6X12,5 WS=8
92
46301094000ABA
Fork protection kit 50 65 20
94
46301085000AB
Clamp brake hose
95
0017060206
SCREW F. PLASTIC K60X20AL SW6
96
0985050003
SELF LOCKING NUT DIN0985-M 5
98
00050000931
STEARING HEAD REP. KIT MINI
