Рама

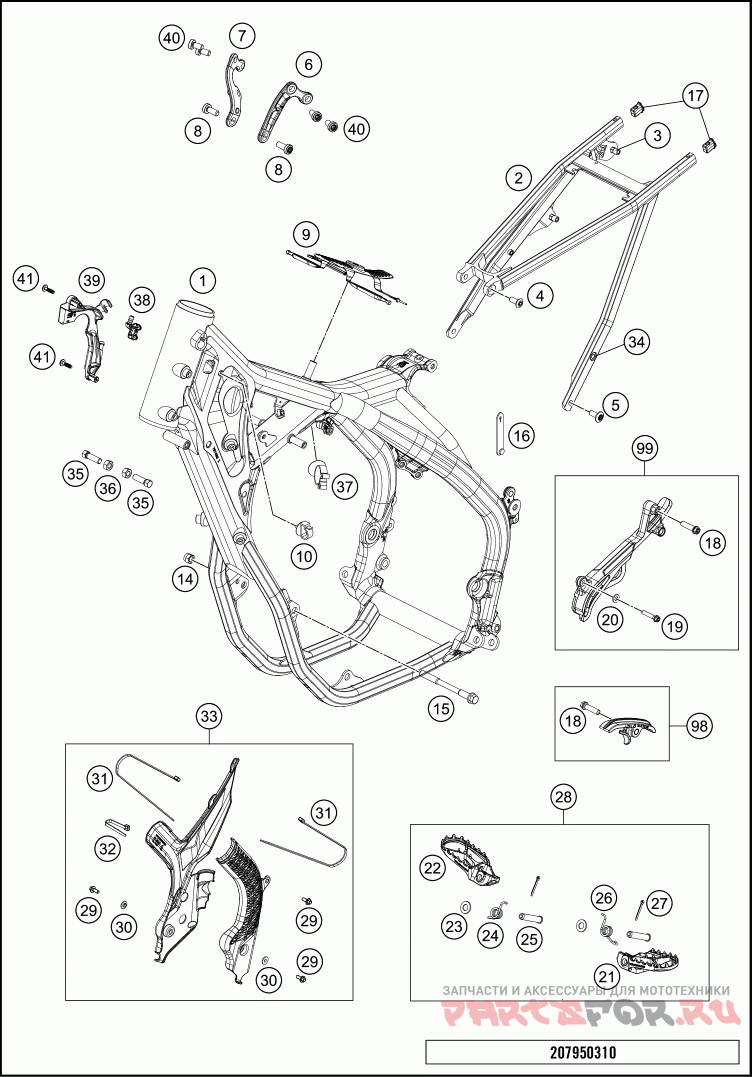

KTM 2020 450 EXC-F CHASSIS

KTM
#oem кодцена
1
7970310110033
Frame 797T1
10
58111076000
CABLE SUPPORT KHS NR.150-47610
14
54310086100
SELF LOCKING NUT M10 CU WS=14
15
59003013000
ENGINEBRAC.SCREW M10X123 WS=13
16
60011093075
RUBBER CABLE TIE 75MM 03
17
79103002010
Rear frame bit
18
0025080306
HH collar screw M8x30
19
0025060356
HH collar screw M6x35 TX30
2
79103002000
Subframe
20
0125060003
WASHER DIN0125-A 6,4
21
79603040000
FOOTREST L/S EXC 2017
22
79603041000
FOOTREST R/S EXC 2017
23
0125100003
washer DIN 125 A 10.5
24
79003044000
FOOTREST SPRING R/S 2016
25
54803044000
PIN FOR FOOT PED 51.5X9.8 MM
26
79003045000
FOOTREST SPRING L/S 2016
27
0094032253
PIN DIN0094-3,2X25 STEEL
28
79603040033
FOOTREST-SET
29
0014050123
HH COLLAR SCREW M 5X12 WS=6
3
77303139000
BLIND RIVET NUT EM6-60LF/HX
30
54803092060
BUSH F . FRAME PROTECTION 03
31
44011076305
CABLE TIE 300/4,8MM BLACK
32
44011076140
CABLE TIE 140/2,5MM BLACK
33
7910309410030
Frame protection set
34
79003002080
BLIND RIVET NUT M6 KNURLED
35
59001037000
SPECIAL SCREW M8X26 WS=10
36
0934080003
HEXAGON NUT DIN0934-M 8
37
61111041000
CABLE SUPPORT 07
38
79107013010
wire holder / fuel ventilation
39
79711013000
Cable holder throttle cable guide
4
0019080206S
FLAT HEAD SCREW M. ISA45 M8X20
40
0035080156S
AH-COLLAR SCREW M8X15 TORX45
41
0081050181
SCREW FOR PLASTIC K50X18 T20
5
79003003000
SPECIAL SCREW M8X18 TORX45 SS
8
0035080206S
SHCS M8x20 TX45
9
79607012000
TANK REST RUBBER
98
79003053010
CHAIN SLIDING KIT BELOW CPL.16
99
79403096010
SPROCKET COVER KIT
