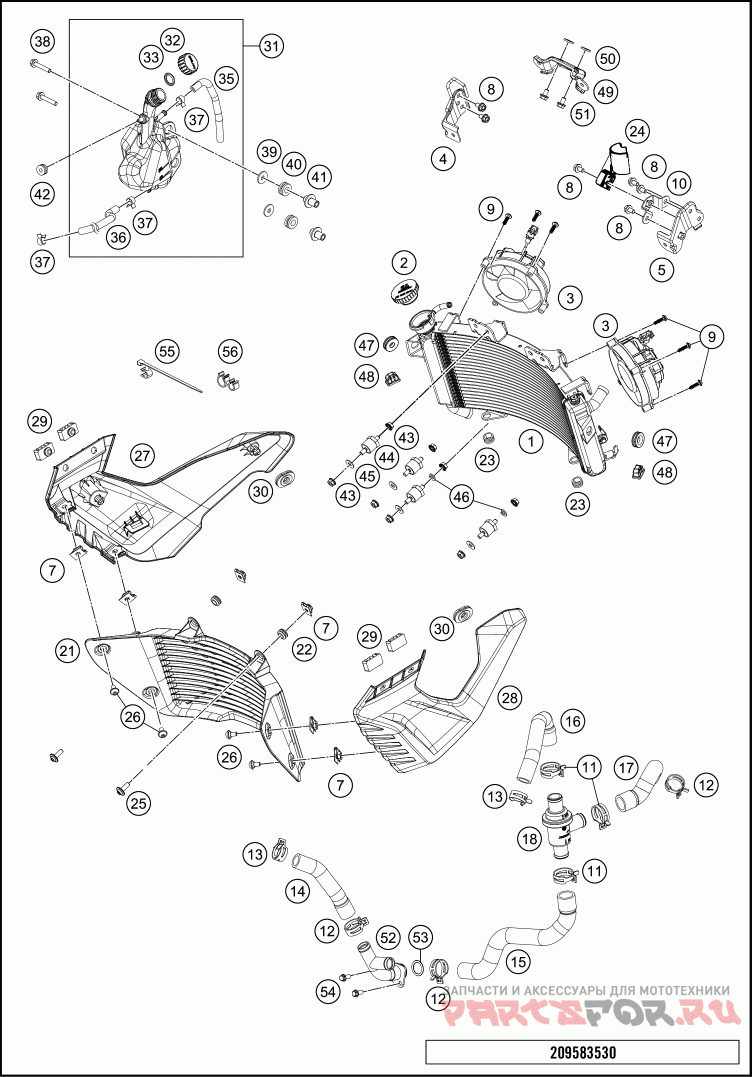

Система охлаждения

KTM 2020 390 ADV ENGINE

KTM
#oem кодцена
1
95835010000
Радиатор
10
95835013050
Bracket holder thermostat
11
90135020003
HOSE CLAMP D28
12
90135020001
hose clamp D26
13
90135020000
HOSE CLAMP D23
14
95835024030
Radiator hose, radiator hose for T-piece
15
94335026000
Pipe thermostat-joint t pcs.
16
95835026100
Radiator hose, radiator thermostat
17
93035025000
Pre-formed hose
18
90135017000
Термостат
2
90135016100
RADIATOR CAP
21
95835040000
radiator protection
22
93014017000
Rubber bushing
23
95835016000
Резиновый патрубок
24
93035017050
THERMOSTAT HALTER
25
J031060101
Linsenkopf-Schraube M6x10
26
J031060143
Linsenkopf-Schraube M6x14
27
95808061000
cooler cover right
28
95808060000
cooler cover left
29
93007040010
Seat cowl pad
3
95835041044
Radiator fan, cmpl
30
90108060003
Уплотнитель резиновый
31
95835065033
Reservoir cmpl.
32
90135066000
PLUG F. EXPANSION TANK
33
90102055000
COMPENSATING TANK O-RING
35
95835067010
Hose for reservoir
36
95835067000
Hose for reservoir
37
90107018011
CLAMP 10MM
4
95803006001
Radiator retaining plate, bottom right
40
93032060010
GROMMET CLUTCH CABLE GUIDE
41
95835065020
Collar bushing
42
90135065050
GROMMET EXPANSION TANK
43
J926060003
SK-Bundmutter M6
44
93335001000
SILENTBLOCK M6
45
J125070004
Scheibe 6,5x16x1
46
J127060001
Spring ring B6
47
95808060020
Резиновый патрубок
48
95835037000
Rubber grommet, radiator spoiler
49
93035004000
Суппорт
5
95803005001
Radiator retaining plate, bottom left
50
J125090006
Washer 9,2X16X2
51
J025060101
Hexagon screw M6X10
52
90635071033
COOLANT PIPE T
53
J770018530
O-RING 18,5X3
54
J025060141
Hex collar screw M6X14
7
93008084010
Range change metal nut M6
8
J025060103
HH COLLAR SCREW M6X10 SW10
