Рама

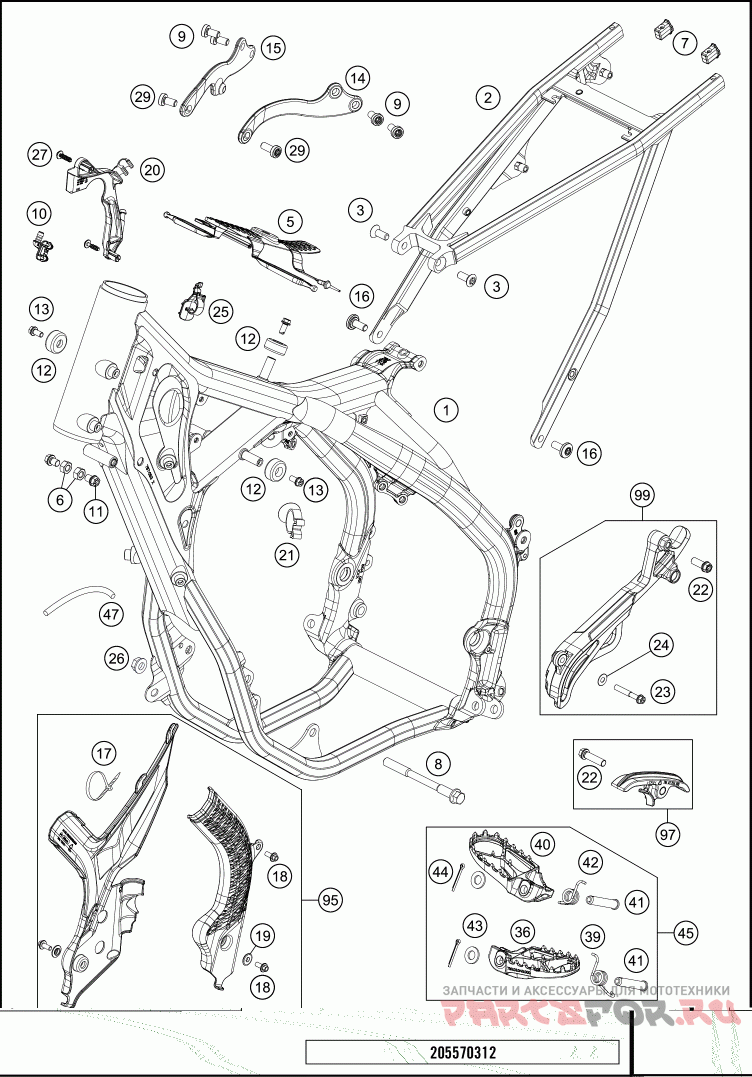

KTM 2020 300 XC-W TPI SIX DAYS CHASSIS

KTM
#oem кодцена
1
55703101000EB
Frame 557T2
10
79111013010
Cover control head sheet
11
59001037000
SPECIAL SCREW M8X26 WS=10
13
0026060136
COLLAR SCREW M6X13 ISA30
14
5570301300001S
Engine brace, left 250/300 TPI
15
5570301400001S
Engine brace, right 250/300 TPI
16
79003003000
SPECIAL SCREW M8X18 TORX45 SS
17
44011076305
CABLE TIE 300/4,8MM BLACK
18
0014050123
HH COLLAR SCREW M 5X12 WS=6
19
54803092060
BUSH F . FRAME PROTECTION 03
2
79103002100
Subframe
20
79711013000
Cable holder throttle cable guide
21
61111041000
CABLE SUPPORT 07
22
0025080306
HH collar screw M8x30
23
0025060406
HH collar screw M6x40 TX30
24
0125060003
WASHER DIN0125-A 6,4
25
79107013010
wire holder / fuel ventilation
26
54310086100
SELF LOCKING NUT M10 CU WS=14
27
0081050181
SCREW FOR PLASTIC K50X18 T20
29
0035080206S
SHCS M8x20 TX45
3
0019080206S
FLAT HEAD SCREW M. ISA45 M8X20
36
79603040000
FOOTREST L/S EXC 2017
39
79003045000
FOOTREST SPRING L/S 2016
40
79603041000
FOOTREST R/S EXC 2017
41
54803044000
PIN FOR FOOT PED 51.5X9.8 MM
42
79003044000
FOOTREST SPRING R/S 2016
43
0125100003
washer DIN 125 A 10.5
44
0094032253
PIN DIN0094-3,2X25 STEEL
45
79603040033
FOOTREST-SET
47
55007016001
PVC-HOSE 7X10 PER METER
5
79607012000
TANK REST RUBBER
6
0934080003
HEXAGON NUT DIN0934-M 8
7
79103002010
Rear frame bit
8
77203014000
engine brac.scr. M10x115
9
0035080156S
AH-COLLAR SCREW M8X15 TORX45
95
7910309410030
Frame protection set
97
79003053010
CHAIN SLIDING KIT BELOW CPL.16
99
55403096010
SPROCKET COVER KIT
