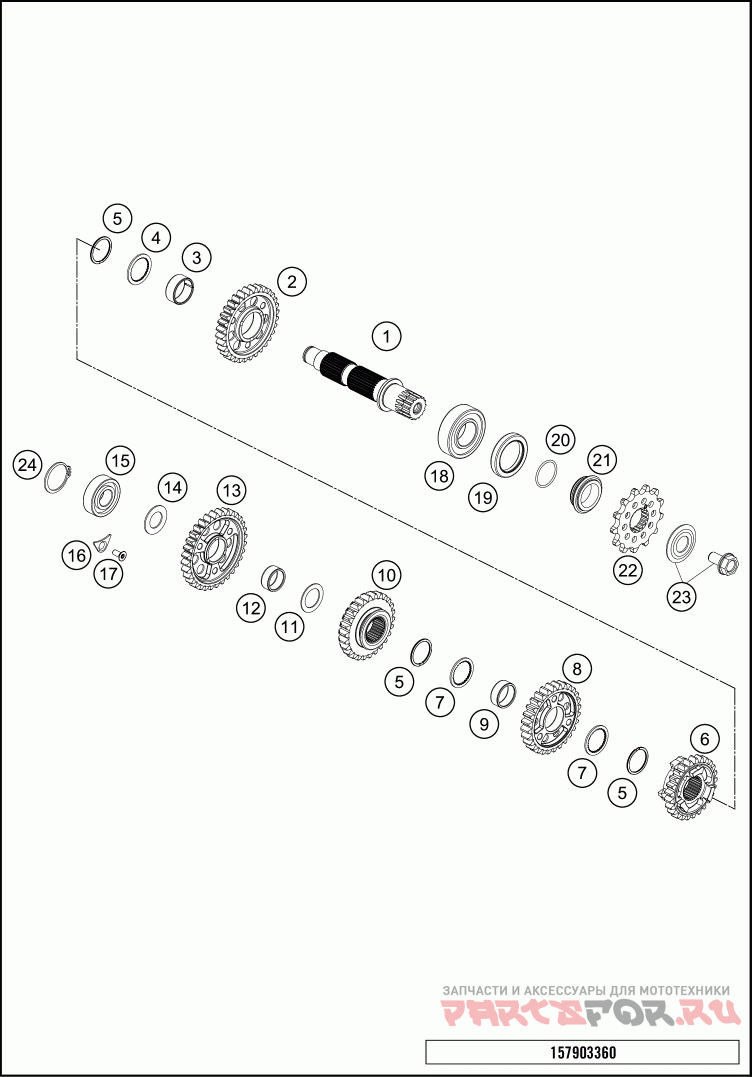

Трансмиссия 2-контрпривод

KTM 2020 250 SX-F ENGINE

KTM
#oem кодцена
1
79133010000
Output shaft
10
79133014000
Sliding gear, 4th gear
11
54833080000
STOP DISC 20,2X30X1
12
0405202410
NEEDLE BEARING K20X24X10
13
79133011000
idler gear 1 st.
14
77233020000
STOP DISK 17,2X30X1,3
15
0625062035
BALL BEARING 6203 JR2 C3
16
75030085000
RETAINING PLATE F. CS BEARING
17
0019050121S
INT. TORX FLAT HEAD M5X12 T25
18
49030023000
cylindrical roller bearing NJ205
19
0760324571
SHAFT SEAL RING 32X45X7 BSLNBR
2
79133012000
Idler gear, 2nd gear
20
0770020220
O-RING 25,12X1,78 NBR70
21
78133014000
SPACER SLEEVE COUNTER
22
79233029013
SPROCKET 13T
22
79233029014
SPROCKET 14T
23
59033034044
SCREW 10.9+SPRING WASHER
24
0471170015
CIRCLIP DIN 0471-17X1, 5
3
0405242812
NEDDLE BEAR. K24X28X11,9 DIV.
4
77733044000
STOP DISC 24X32X1,5
5
0417024000
CIRCLIP WS24
6
79133015000
Sliding gear, 5th gear
7
77733043000
STOP DISC 23,4X31X1,5
8
79133013000
Idler gear, 3rd gear
9
0405222611
NEEDLE BEAR.K 22X26X10 DIVIDED
