  5. 2020 1290 SUPER ADVENTURE S ORANGE CHASSIS

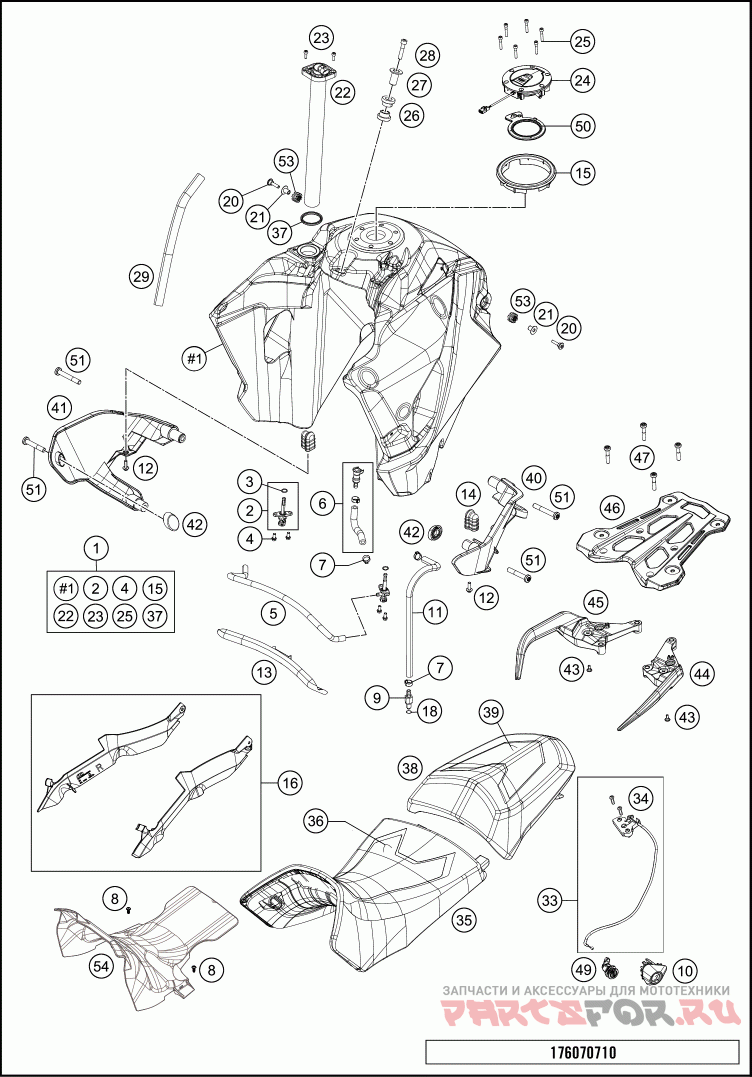

Tank, seat

KTM 2020 1290 SUPER ADVENTURE S ORANGE CHASSIS

KTM
#oem кодцена
1
6030711324433A
FUEL TANK CPL.
10
60307053100
SEAT LOCK COVER
11
60307016050
FUEL PIPE 1
12
0024060206
HH collar screw M6x20 TX30
13
60307070000
BRACKET FUEL HOSE
14
60307020000
TANK RUBBER
15
60307009200
Filler cap coil
16
60308053144
AIR DEFLECTOR KIT SEAT
18
58507012000
O-RING VITON F. PLUG CPC 05
2
58507003200
FUEL COCK CPL.
20
60307025000
SPECIAL SCREW M6X32.5 ISA 40
21
69007028000
COLLAR BUSH. 6,2X10X21X14MM 08
22
60307080200
Fuel level sensor
23
0912050163
AH SCREW DIN0912-M 5X16
24
60707008000
Fuel tank cap race-on
25
0912050253
AH SCREW DIN0912-M 5X25
26
61007065000
collar bushing, front tank holder
27
61007060000
collar bushing, bearing, outside
28
0912080403
SHCS DIN 912 M8x40
29
60007126001
HOSE 5,4X9,4 NBR, METER
3
0770020130
O-RING 1,78x10,82x14,38 2-013
33
60307050000
SEAT LOCK CPL.
34
0738060201
FLAT HEAD SCREW ISO7380 M6X20
35
60707040100
Седло
36
60707043000
Seat cover
37
60307080090
GASKET FUEL LEVEL SENSOR
38
60707047000
Seat passenger
39
60707053000
Seat cover passenger
4
0025060126
HH collar screw M6x12 TX30
40
6030702700033
Tank guard left black
41
6030702800033
Tank guard right black
42
60307032000
Демпфер
43
69013099050
SCREW F. EXPANSION TANK
44
6031200810030
GRIP L/S BLACK
45
6031200920030
HAND GRIP R/S
46
6031201000033S
BAGGAGE CARRIER BRIDGE
47
0035080406
AH-COLLAR SCREW M8X40 ISA45
49
60307050020
LOCK CYLINDER SEAT LOCK
5
60007416510
FUEL HOSE 6,4X3,2 L=510MM
50
60307008190
GASKET TANK CAP
51
0035100609S
AH-COLLAR SCREW M10X60 ISA45
53
69007027000
rubber grommet, tank mounting
54
60707045000
Heat protection shell
6
60307017000
FUEL HOSE TANK/CONNECTOR
7
00050157706
VARIABLE ONE-EAR CLAMP 15,7MM
8
0081045121
SCREW FOR PLASTIC K45X12 T20
9
5850701030030
PLUG CPC BLACK 05
