Tank, seat для мотоциклов KTM 2020 1290 SUPER ADVENTURE R CHASSIS (2020)

Москва и регионы России

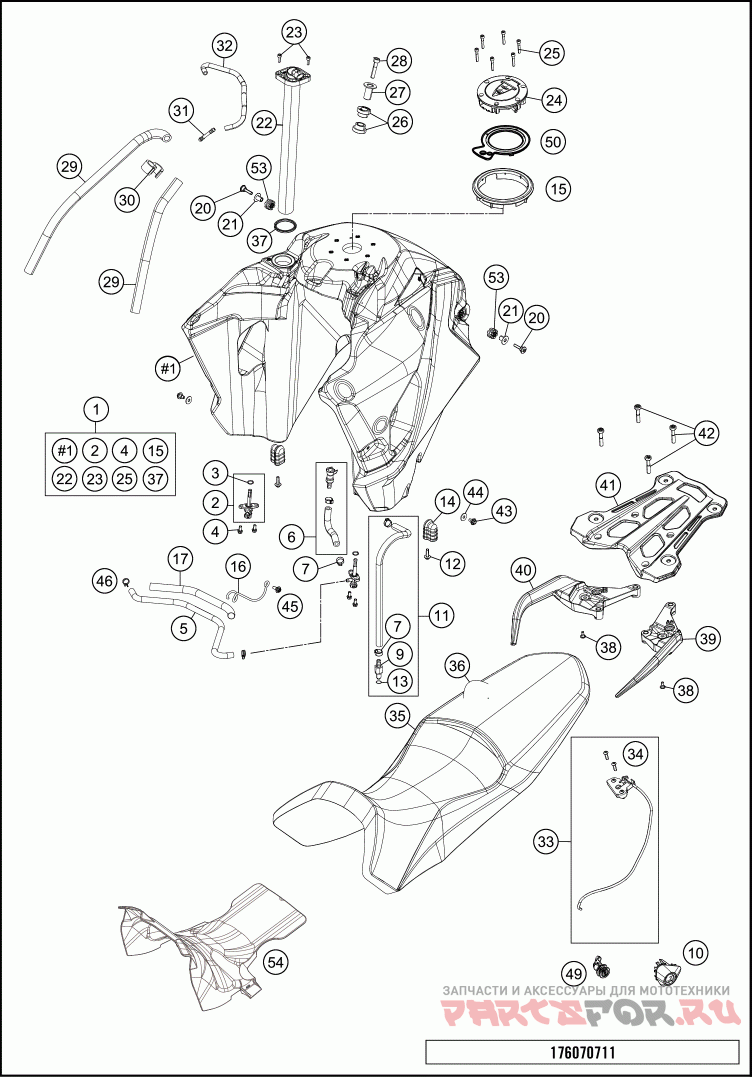

Tank, seat

KTM 2020 1290 SUPER ADVENTURE R CHASSIS

Tank, seat

#

oem код

название

цена

1

FUEL TANK CPL.

FUEL TANK CPL.

10

SEAT LOCK COVER

SEAT LOCK COVER

11

FUEL PIPE 1

FUEL PIPE 1

12

HH collar screw M6x20 TX30

HH collar screw M6x20 TX30

13

O-RING VITON F. PLUG CPC 05

O-RING VITON F. PLUG CPC 05

14

TANK RUBBER

TANK RUBBER

15

TANK CAP RING

TANK CAP RING

16

Wire hanger for fuel hose

Wire hanger for fuel hose

17

HEAT PROTECTION

HEAT PROTECTION

2

FUEL COCK CPL.

FUEL COCK CPL.

20

SPECIAL SCREW M6X32.5 ISA 40

SPECIAL SCREW M6X32.5 ISA 40

21

COLLAR BUSH. 6,2X10X21X14MM 08

COLLAR BUSH. 6,2X10X21X14MM 08

22

GAS LEVEL SENSOR

GAS LEVEL SENSOR

23

AH SCREW DIN0912-M 5X16

AH SCREW DIN0912-M 5X16

24

Fuel tank cap race-on

Fuel tank cap race-on

25

AH SCREW DIN0912-M 5X25

AH SCREW DIN0912-M 5X25

26

collar bushing, front tank holder

collar bushing, front tank holder

27

collar bushing, bearing, outside

collar bushing, bearing, outside

28

SHCS DIN 912 M8x40

SHCS DIN 912 M8x40

29

HOSE 5,4X9,4 NBR, METER

HOSE 5,4X9,4 NBR, METER

3

O-RING 1,78x10,82x14,38 2-013

O-RING 1,78x10,82x14,38 2-013

30

DISTANCE HOLDER 10/10 BLACK

DISTANCE HOLDER 10/10 BLACK

31

HOSE CONNECTION STRAIGHT

HOSE CONNECTION STRAIGHT

32

HOSE TANK BREAT.

HOSE TANK BREAT.

33

SEAT LOCK CPL.

SEAT LOCK CPL.

34

FLAT HEAD SCREW ISO7380 M6X20

FLAT HEAD SCREW ISO7380 M6X20

35

SEAT R

SEAT R

36

SEAT COVERING

SEAT COVERING

37

GASKET FUEL LEVEL SENSOR

GASKET FUEL LEVEL SENSOR

38

SCREW F. EXPANSION TANK

SCREW F. EXPANSION TANK

39

GRIP L/S BLACK

GRIP L/S BLACK

4

HH collar screw M6x12 TX30

HH collar screw M6x12 TX30

40

HAND GRIP R/S

HAND GRIP R/S

41

BAGGAGE CARRIER BRIDGE

BAGGAGE CARRIER BRIDGE

42

AH-COLLAR SCREW M8X40 ISA45

AH-COLLAR SCREW M8X40 ISA45

43

SPECIAL SCREW M6X12,5 WS=8

SPECIAL SCREW M6X12,5 WS=8

44

WASHER DIN9021-A 6,4

WASHER DIN9021-A 6,4

45

HH collar screw M6x15 TX30

HH collar screw M6x15 TX30

46

CLAMP YDNAC 10128 12MM

CLAMP YDNAC 10128 12MM

49

LOCK CYLINDER SEAT LOCK

LOCK CYLINDER SEAT LOCK

5

EXPANSION HOSE FUELTANK

EXPANSION HOSE FUELTANK

50

GASKET TANK CAP

GASKET TANK CAP

53

rubber grommet, tank mounting

rubber grommet, tank mounting

54

Heat protection shell

Heat protection shell

6

FUEL HOSE TANK/CONNECTOR

FUEL HOSE TANK/CONNECTOR

7

VARIABLE ONE-EAR CLAMP 15,7MM

VARIABLE ONE-EAR CLAMP 15,7MM

9

PLUG CPC BLACK 05

PLUG CPC BLACK 05
