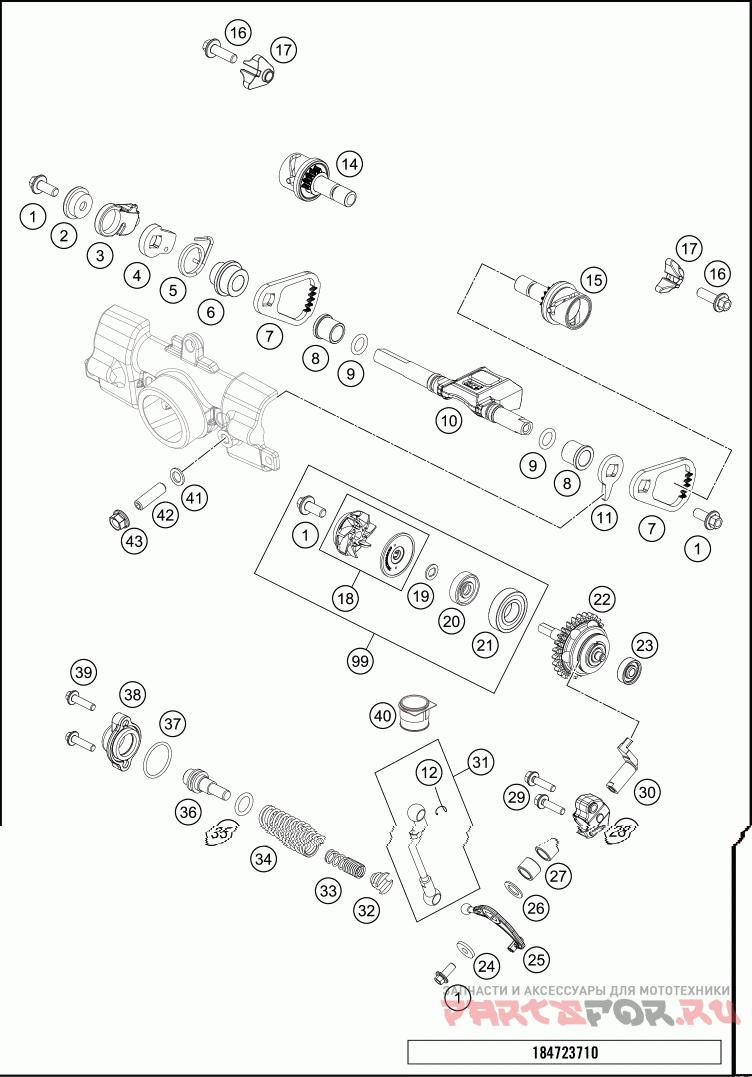

Глушитель

KTM 2019 85 SX ENGINE

KTM
#oem кодцена
1
0014050123
HH COLLAR SCREW M 5X12 WS=6
10
47237020000
Клапан выпускной
11
47237085000
Limit plate
12
50237195055
SECURING DIN-71805-S-8
14
47237065033
Control valve, right cmpl.
15
47237064033
Control valve, left cmpl.
16
0014050123
HH COLLAR SCREW M 5X12 WS=6
17
47237079000
guide piece
18
79235055044
WATER PUMP WHEEL CPL.
19
50435049000
PREFORMED WASHER
2
47237068000
Bearing bush
20
0760082472
SHAFT SEAL RING 8X24X7 A DUO
21
0625160020
BALL BEARING 16002 C3
22*
47237050144
Centrifugal force governor cmpl.
23
0625006065
Ball bearing 696 DDM1 C3
24
0349000050
WASHER DIN7349-5X15X2
25
47237056000
angle lever
26
0988101605
SHIM WASHER DIN988 10x16x0,5
27
0618101410
needle sleeve HK 1010 10x14x10
28
55437058000
BEARING SUPPORT
29
0025050256S
HH COLLAR SCREW M5X25 ISA30
3
47237077000
adjusting lever
30
47237057000
Adjusting lever 85/105
31
47237095044
Linkage cpl.
32
54637071200
SPRING INSERT
33
50437069050
SUPPORT SPRING
34
47237072000
Setting spring
35
0770021120
O-RING 12,37X2,62 NBR70
36
54837075000
SPRING GUIDE 250/300
37
0770240020
O-RING 24,00X2,00 NBR70
39
0014050203
HH COLLAR SCREW M 5X20 WS=6
4
47237036000
Attachment plate
40
47237091000
Sealing element
41
0603061001
CU-SEAL RING DIN7603-6X10X1
42
0913060203
THREAD PIN DIN0913-M 6X20
43
77336088106
COLLAR NUT M6X1 SW8
5
47237066000
Overload spring
6
47237076000
Distance bush
7
47237067000
Gear segment
8
47237023000
Eshaust flap bushing
9
0770080201
O-Ring 8,00x2,0 viton
99
50435055015
WATER PUMP REP . KIT
