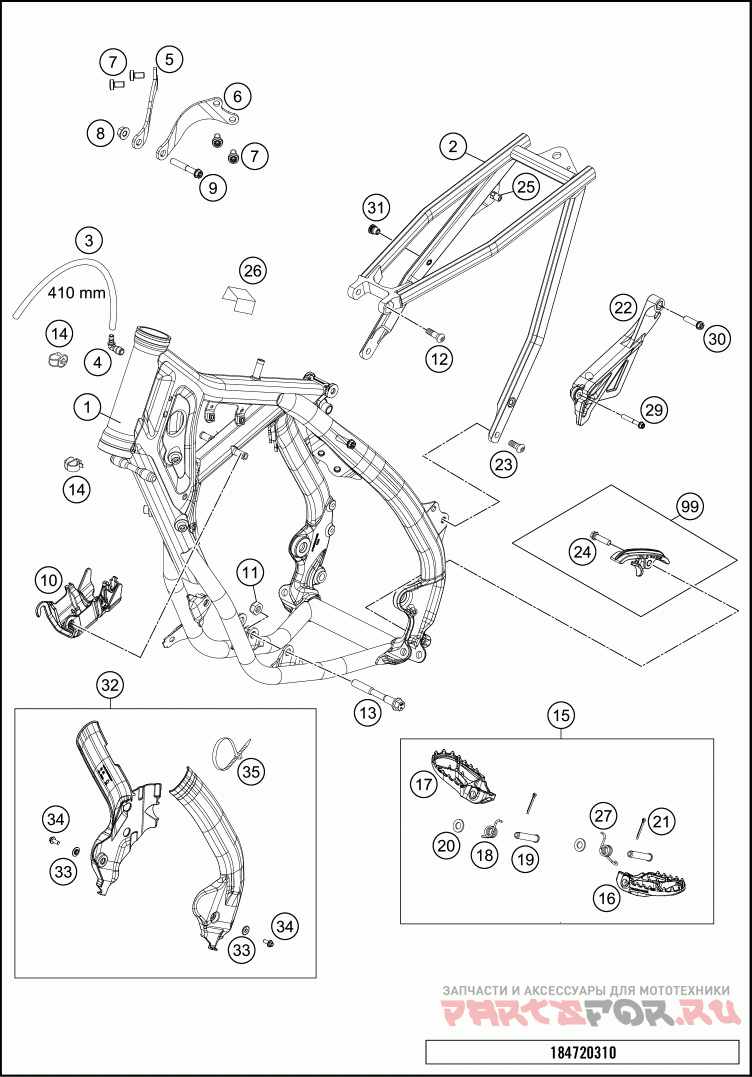

Рама

KTM 2019 85 SX 17_14 CHASSIS

Рама

#

oem код

название

цена

1

Рама

Рама

10

Cable compartment

Cable compartment

11

SELF LOCKING NUT M10 CU WS=14

SELF LOCKING NUT M10 CU WS=14

12

FLAT HEAD SCREW M. ISA45 M8X20

FLAT HEAD SCREW M. ISA45 M8X20

13

ENGINE BRACKET SCREW 85 SX

ENGINE BRACKET SCREW 85 SX

14

WIRING HOLDER 16MM

WIRING HOLDER 16MM

15

FOOT PEGS SET CPL. 2016

FOOT PEGS SET CPL. 2016

16

FOOTREST L/S 2016

FOOTREST L/S 2016

17

FOOTREST R/S 2016

FOOTREST R/S 2016

18

FOOTREST SPRING R/S 2016

FOOTREST SPRING R/S 2016

19

PIN FOR FOOT PED 51.5X9.8 MM

PIN FOR FOOT PED 51.5X9.8 MM

2

Subframe

Subframe

20

washer DIN 125 A 10.5

washer DIN 125 A 10.5

21

PIN DIN0094-3,2X25 STEEL

PIN DIN0094-3,2X25 STEEL

22

Sprocket cover 85

Sprocket cover 85

23

SPECIAL SCREW M8X18 TORX45 SS

SPECIAL SCREW M8X18 TORX45 SS

24

HH collar screw M8x30 TX40

HH collar screw M8x30 TX40

25

BLIND RIVET NUT EM6-60LF/HX

BLIND RIVET NUT EM6-60LF/HX

26

ADH. FOIL TRANSP. 80X80 MM 04

ADH. FOIL TRANSP. 80X80 MM 04

27

FOOTREST SPRING L/S 2016

FOOTREST SPRING L/S 2016

29

HH collar screw M6x40 TX30

HH collar screw M6x40 TX30

3

PVC-HOSE 6X9

PVC-HOSE 6X9

30

HH collar screw M8x25 TX40

HH collar screw M8x25 TX40

31

BLIND RIVET NUT M6 KNURLED

BLIND RIVET NUT M6 KNURLED

32

Frame protector set

Frame protector set

33

BUSH F . FRAME PROTECTION 03

BUSH F . FRAME PROTECTION 03

34

HH COLLAR SCREW M 5X12 WS=6

HH COLLAR SCREW M 5X12 WS=6

35

CABLE TIE 300/4,8MM BLACK

CABLE TIE 300/4,8MM BLACK

4

ANGLE PIECE 90 DEGREE M10X1

ANGLE PIECE 90 DEGREE M10X1

5

MOTORSTREBE RECHTS

MOTORSTREBE RECHTS

6

Motorbracket left

Motorbracket left

7

AH-COLLAR SCREW M8X15 TORX45

AH-COLLAR SCREW M8X15 TORX45

8

SELF LOCKING NUT M8 10.9

SELF LOCKING NUT M8 10.9

9

HH collar screw M8x50 TX40

HH collar screw M8x50 TX40

99

CHAIN SLIDING KIT BELOW CPL.16

CHAIN SLIDING KIT BELOW CPL.16
