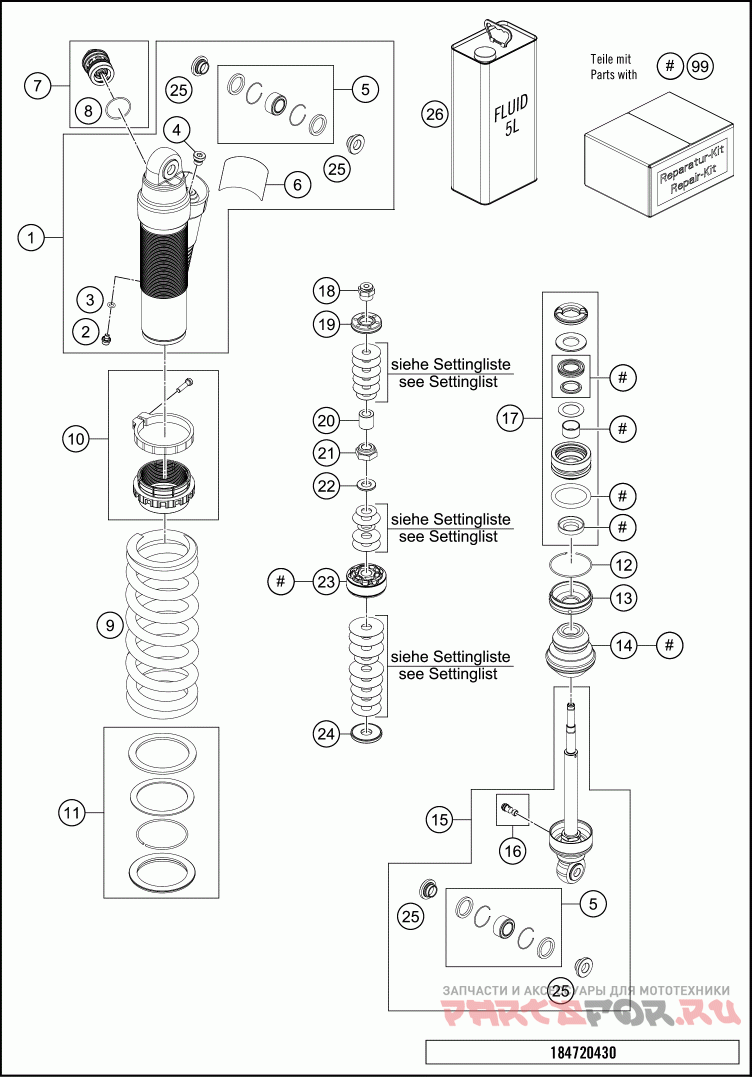

Амортизатор в разборе для мотоциклов KTM 2019 85 SX 17_14 CHASSIS (2019)

Москва и регионы России

Амортизатор в разборе

KTM 2019 85 SX 17_14 CHASSIS

Амортизатор в разборе

#

oem код

название

цена

1

Monoshock case M53x1 with pipe cpl.

Monoshock case M53x1 with pipe cpl.

10

SPRING SUPPORT PLASTIC 46 CPL.

SPRING SUPPORT PLASTIC 46 CPL.

11

SPRING CUP SET PDS 17

SPRING CUP SET PDS 17

12

CIRCLIP 49X1,5

CIRCLIP 49X1,5

13

CAP D=46 H=9,5

CAP D=46 H=9,5

14

BUMP RUBBER Ø58 Ø17 H55 PDS 2017

BUMP RUBBER Ø58 Ø17 H55 PDS 2017

15

Shock absorber bot. cpl.

Shock absorber bot. cpl.

16

ADJUSTING SCREW M8X0,5 CPL.

ADJUSTING SCREW M8X0,5 CPL.

17

ADAPTOR CPL. D=46 H=28 07

ADAPTOR CPL. D=46 H=28 07

18

NUT M10X1 PDS

NUT M10X1 PDS

19

PISTON Ø35,5 PDS

PISTON Ø35,5 PDS

2

SCREW PLUG M5X6

SCREW PLUG M5X6

20

composite bush 10x17x23

composite bush 10x17x23

21

PISTON ROD NUT

PISTON ROD NUT

22

RING 12X24X2,5

RING 12X24X2,5

23

PISTON CPL. Ø12 Ø42 BLEED HOLE

PISTON CPL. Ø12 Ø42 BLEED HOLE

24

REBOUND WASHER 12X36 T4 H0

REBOUND WASHER 12X36 T4 H0

25

ADAPTOR BUSH KGW 12X24

ADAPTOR BUSH KGW 12X24

26

SHOCK ABSORBER FLUID 5 LT

SHOCK ABSORBER FLUID 5 LT

3

O-RING NBR 5,28X1,78

O-RING NBR 5,28X1,78

4

BLEED PLUG R 1/8

BLEED PLUG R 1/8

5

REP . KIT BEAR./SEAL UP. 07

REP . KIT BEAR./SEAL UP. 07

6

STICKER WP WARNING 65X40

STICKER WP WARNING 65X40

7

DCC cpl.

DCC cpl.

8

O-RING 27X1,5 VITON

O-RING 27X1,5 VITON

9

SPRING (59) 215 45 N/MM D=10

SPRING (59) 215 45 N/MM D=10

9

Spring L215mm 50N/mm inside Ø59mm

Spring L215mm 50N/mm inside Ø59mm

9

SPRING (59) 215 30 N/MM

SPRING (59) 215 30 N/MM

9

SPRING (59) 215 35 N/MM D=9,25

SPRING (59) 215 35 N/MM D=9,25

9

SPRING (59) 215 40 N/MM D=9,5

SPRING (59) 215 40 N/MM D=9,5

99

REVISION KIT MONOSHOCK MINI 17

REVISION KIT MONOSHOCK MINI 17
