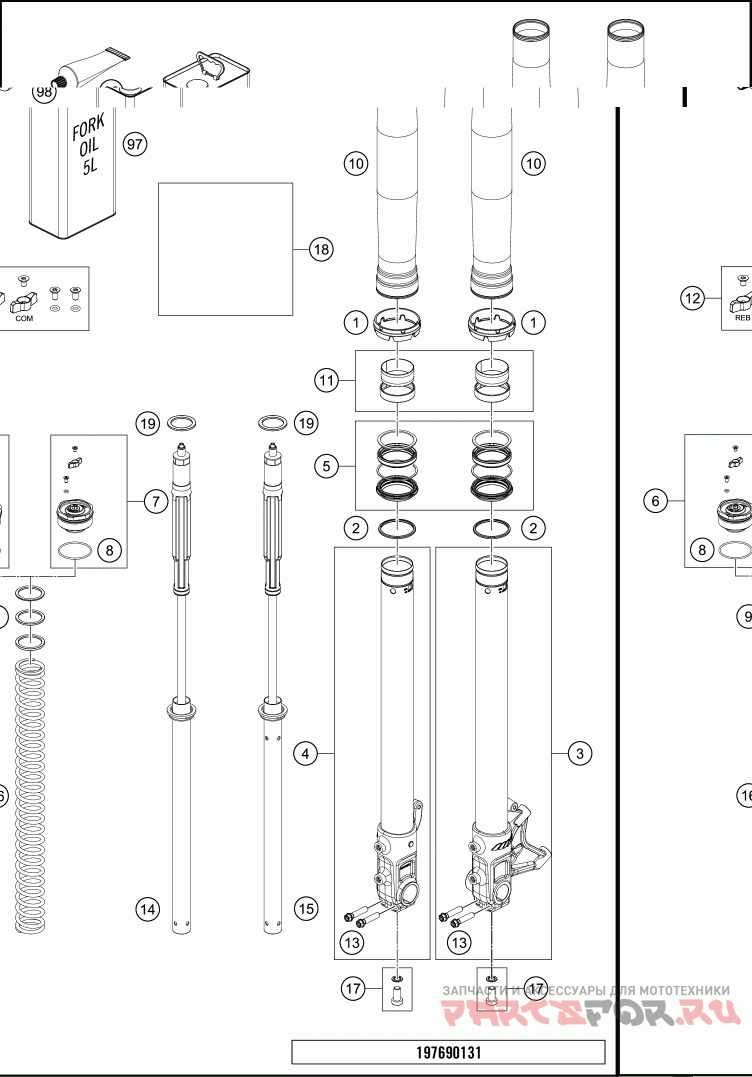

Передняя вилка

KTM 2019 690 SMC-R CHASSIS

KTM
#oem кодцена
1
48601948
Fork protection ring 60,1mm
10
48601981
Fork outer tube 54x530 dt54 db60
11
R14047T
Guide bushing set fork 48mm
12
RP10021
Einsteller Kit Schraubdeckel
14
48601067S1
Cartridge rechts KTM 690 SMC
15
48601067S2
Cartridge links KTM 690 SMC
16
91410043S
SPRING C=5,3 L=450 D=5,5
17
00501020S1
AH SCREW M10X20 SET
18
52000210SET
Aufkleberset APEX OC 90x40
19
48600113
Washer 32x42x2,5 plastic
2
48602007
Stroke indicator 48mm red
3
48601318S1
AXLE CLAMP L/S WITH TUBE CPL.
4
48601317S1
AXLE CLAMP R/S WITH TUBE CPL.
5
RP10012T
Dichtungskit 48mm SKF Schwarz
6
48602039S
Screw cap M51x1,5 rebound cpl.
7
48602040S
Screw cap M51x1,5 compression cpl.
8
48600048
O-ring 46x2 NBR70 siliconized yellow
9
48600457
Preload bush 35x43x3,5
9
48600458
Washer 35x43x1,5 plastic
9
48600456
Washer 35x43x2,5 plastic
97
48601166S1
FORK OIL SAE4 5L
98
T14034
Fuchs grease IPR (250g)
