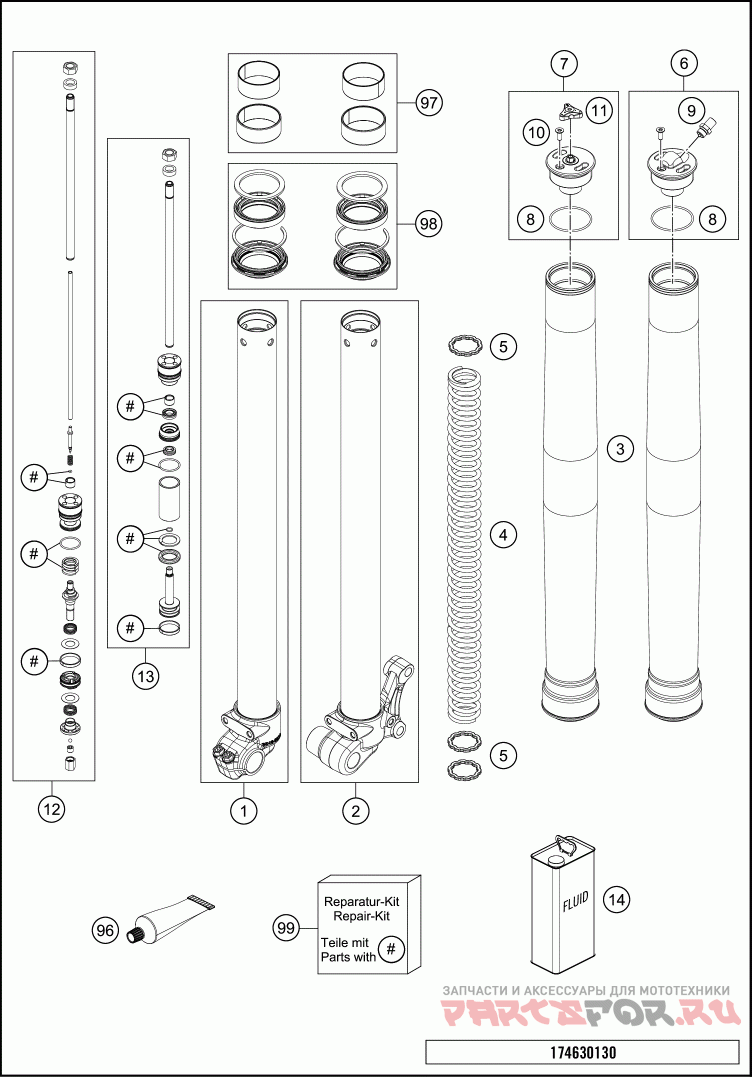

Передняя вилка

KTM 2019 65 SX CHASSIS

KTM
#oem кодцена
1
35480455S4
AXLE CLAMP KTM 65SX R/S. CPL.
10
00600003
FLAT HEAD SCREW M4X10 TORX
11
48601118S
ADJUSTER REB. RED CPL.
12
35480551S4
PISTON ROD SX 65 CPL. RIGHT
13
35480551S5
PISTON ROD SX 65 CPL. LEFT
14
48601166S1
FORK OIL SAE4 5L
2
35480466S3
AXLE CLAMP KTM 65SX L/S CPL.
3
35480564
OUTER TUBE L=465
4
95010044S
SPRING 2,8N/MM D3,6 SET
5
35480497
WASHER 22X30X2.5
6
35480548S
SCREW CAP M38X1,5 AIR CPL.
7
35480507S1
SCREW CAP M38X1,5 AIR REBOUND
8
46180581
O-RING 35X1.5 NBR70
9
48601494S
VALVE M8X1 INCL. SCREW CAP
96
00062010053
Spezial Fett AER Fork 50g
97
RP10006
BUSHING KIT 35MM
98
RP10027T
GASKET KIT 35MM RED
99
RP10008
REPAIR KIT 50+65SX AIR 2017
