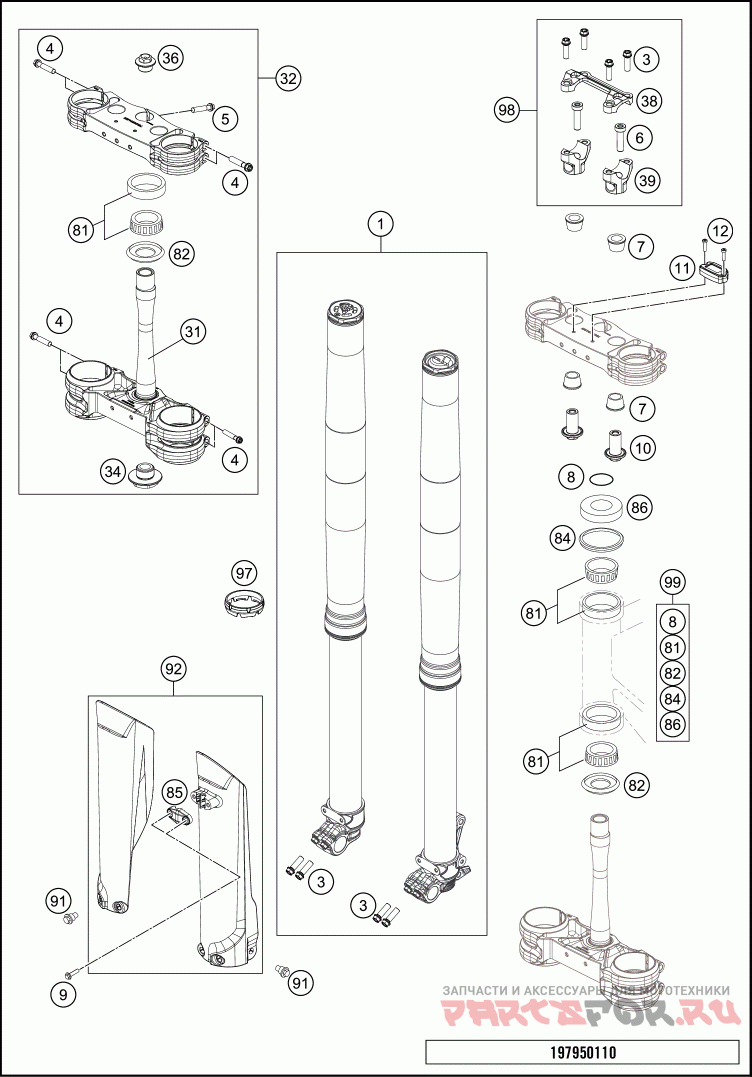

Передняя вилка

KTM 2019 450 SX-F FACTORY EDITION CHASSIS

KTM
#oem кодцена
1*
34188S9901
Fork 450 Factory Edt./Rockstar Edt. 19
10
79001037034
HANDLEBAR SUPPORT LOWER PART
11
78112920000
HOUR METER
12
0912040163
AH SCREW DIN0912-M 4X16
3
0025080256
HH collar screw M8x25
31*
79101933000
Steering stem
32*
7910199902104
Factory triple clamp
34*
54801036100
STE.HEAD SCR. M20X1,5 WS=27 SL
36
70009082000
AXLESCREW M20X1.5 SW17
38
79001038000
HANDLEBAR CLAMP 28MM
39
79001039036
HANDLEBAR SUPPORT D28MM-H36MM
4
0025080406
HH COLLAR SCREW M8X40 TX40
5
0015080256S
HH COLLAR SCREW M8X25 WS=10
6
0032100356S
AH-COLLAR SCREW M10X35 ISA45
7
83001040000
RUBBER BUSH
8
0770025035
O-RING 25X3,55 NBR70 05
81
54201081100
TAPERED ROLLER BEARING CPL. 06
82
77701084000
O-RING SUPPORT W. SEALING LIP
84
54601184000
STEARING HEAD GASKET TOP
85
77701085100EB
CLAMP FOR BRAKEHOSE
86
78101086000
STEERING HEAD COVER
9
0017060206
SCREW F. PLASTIC K60X20AL SW6
91
59001092050
SPECIAL SCREW M6X12,5 WS=8
92*
77701094100EBI
Gabelschutzkit Factory Edition 19
97
48600698
Fork protection ring 62,1mm
98
00050000929
HANDLEBAR SUPPORT KIT D28/H36
99
00050000930
STEARING HEAD REP. KIT 06-15
