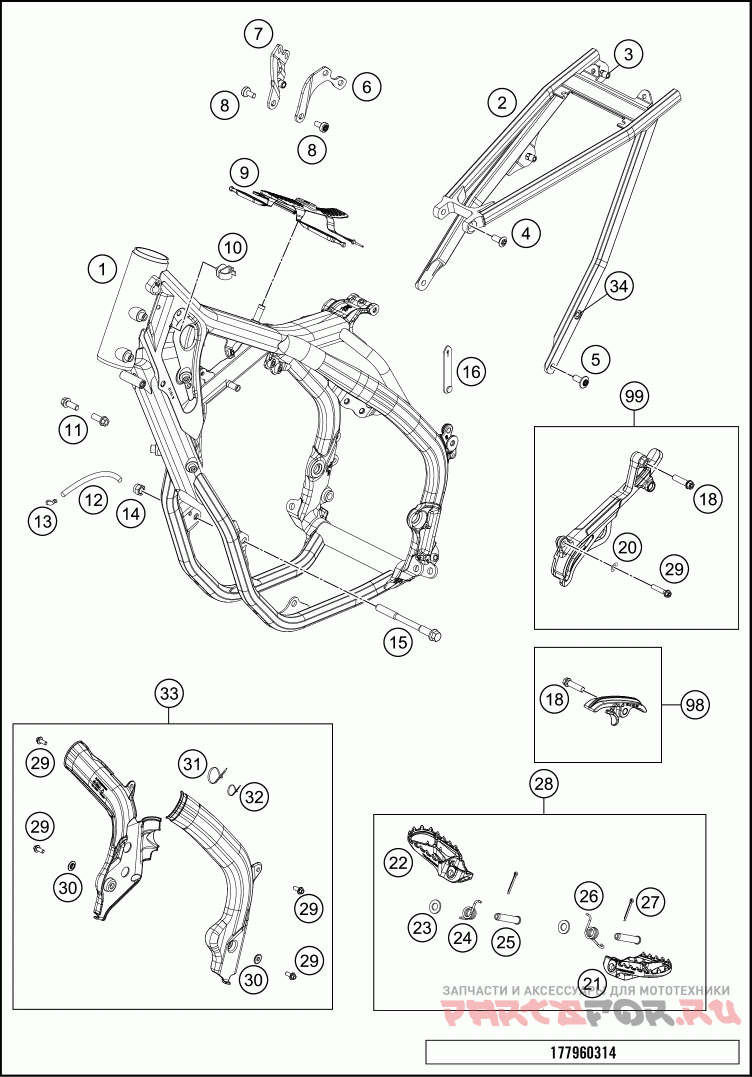

Рама для мотоциклов KTM 2019 450 EXC-F SIX DAYS CHASSIS (2019)

Москва и регионы России

Рама

KTM 2019 450 EXC-F SIX DAYS CHASSIS

Рама

#

oem код

название

цена

1

FRAME '796Q1' EL.ORANGE

FRAME '796Q1' EL.ORANGE

10

CABLE SUPPORT KHS NR.150-47610

CABLE SUPPORT KHS NR.150-47610

11

HH collar screw M8x16 TX40 SL

HH collar screw M8x16 TX40 SL

12

PVC-HOSE 7X10 PER METER

PVC-HOSE 7X10 PER METER

14

SELF LOCKING NUT M10 CU WS=14

SELF LOCKING NUT M10 CU WS=14

15

ENGINEBRAC.SCREW M10X123 WS=13

ENGINEBRAC.SCREW M10X123 WS=13

16

RUBBER CABLE TIE 75MM 03

RUBBER CABLE TIE 75MM 03

18

HH collar screw M8x30 TX40

HH collar screw M8x30 TX40

2

Subframe 2018

Subframe 2018

20

WASHER DIN0125-A 6,4

WASHER DIN0125-A 6,4

21

FOOTREST L/S EXC 2017

FOOTREST L/S EXC 2017

22

FOOTREST R/S EXC 2017

FOOTREST R/S EXC 2017

23

washer DIN 125 A 10.5

washer DIN 125 A 10.5

24

FOOTREST SPRING R/S 2016

FOOTREST SPRING R/S 2016

25

PIN FOR FOOT PED 51.5X9.8 MM

PIN FOR FOOT PED 51.5X9.8 MM

26

FOOTREST SPRING L/S 2016

FOOTREST SPRING L/S 2016

27

PIN DIN0094-3,2X25 STEEL

PIN DIN0094-3,2X25 STEEL

28

FOOTREST-SET

FOOTREST-SET

29

HH COLLAR SCREW M 5X12 WS=6

HH COLLAR SCREW M 5X12 WS=6

3

BLIND RIVET NUT EM6-60LF/HX

BLIND RIVET NUT EM6-60LF/HX

30

BUSH F . FRAME PROTECTION 03

BUSH F . FRAME PROTECTION 03

31

CABLE TIE 300/4,8MM BLACK

CABLE TIE 300/4,8MM BLACK

32

CABLE TIE 140/2,5MM BLACK

CABLE TIE 140/2,5MM BLACK

33*

FRAME PROTECTION SET ORANGE

FRAME PROTECTION SET ORANGE

34

BLIND RIVET NUT M6 KNURLED

BLIND RIVET NUT M6 KNURLED

4

FLAT HEAD SCREW M. ISA45 M8X20

FLAT HEAD SCREW M. ISA45 M8X20

5

SPECIAL SCREW M8X18 TORX45 SS

SPECIAL SCREW M8X18 TORX45 SS

6

ENGINE BRACE LEFT

ENGINE BRACE LEFT

7

ENGINE BRACE RIGHT CPL.

ENGINE BRACE RIGHT CPL.

8

AH-COLLAR SCREW M8X15 TORX45

AH-COLLAR SCREW M8X15 TORX45

9

TANK REST RUBBER

TANK REST RUBBER

98

CHAIN SLIDING KIT BELOW CPL.16

CHAIN SLIDING KIT BELOW CPL.16

99

SPROCKET COVER KIT

SPROCKET COVER KIT
